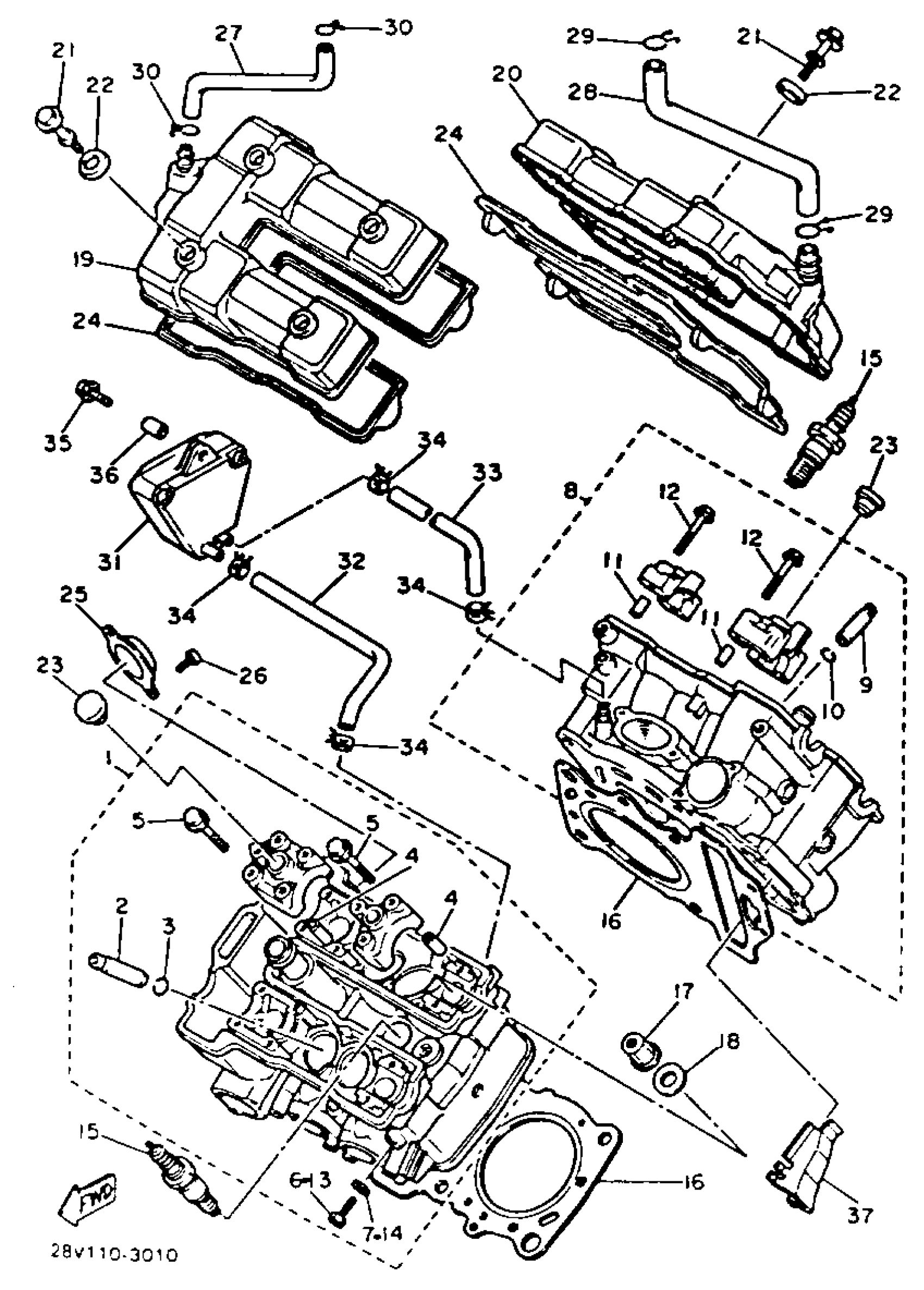

Yamaha XZ550RK (XZ550RK) 1983 CLYINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(11H-11110-00-00)

Unavailable

2

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

3

CIRCLIP (4G0)

93440-10085-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

6

SCREW

90153-06029-00

$10.49

7

GASKET 256113960000

90430-06014-00

Unavailable

8

HEAD, CYLINDER 2

(11H-11120-00-00)

Unavailable

9

GUIDE, INTAKE VALVE

4G0-11133-11-00

$49.99

10

CIRCLIP (4G0)

93440-10085-00

$8.49

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

BOLT, WASHER BASED (4H7)

90105-06153-00

$4.14

13

SCREW

90153-06029-00

$10.49

14

GASKET 256113960000

90430-06014-00

Unavailable

15

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable

16

. GASKET, cyl head

28V-11181-00-00

Unavailable

17

NUT (26H)

90179-10414-00

Unavailable

18

WASHER, PLATE (26H)

90201-102G9-00

Unavailable

19

COVER, CYLINDER.HEAD 1

(11H-11191-00-00)

Unavailable

20

COVER, CYLINDER.HEAD 2

(11H-11192-00-00)

Unavailable

21

BOLT

90109-06585-00

Unavailable

22

RUBBER, MOUNT 1

4G0-1111G-00-00

Unavailable

23

PLUG (11H)

90338-11125-00

Unavailable

24

GASKET, HEAD COVER

11H-11193-01-00

Unavailable

25

CAP,TENSIONER CASE

22U-12215-00-00

Unavailable

26

SCREW, PAN HEAD

(92511-06016-00)

Unavailable

27

PIPE, breather 1

11H-11166-01-00

Unavailable

28

PIPE, breather 2

11H-11167-00-00

Unavailable

29

CLIP (371)

90467-14015-00

Unavailable

30

CLIP

90467-100A1-00

Unavailable

31

AIR CHAMBER ASS''Y

28V-13580-00-00

Unavailable

32

PIPE 1

11H-1111J-00-00

Unavailable

33

PIPE 2

11H-1112J-00-00

Unavailable

34

CLIP (3G0)

90467-10039-00

Unavailable

35

BOLT, FLANGE

95817-06020-00

Unavailable

36

COLLAR

90387-06113-00

Unavailable

37

PLATE, breather

[11-U1116-50-10

Unavailable
