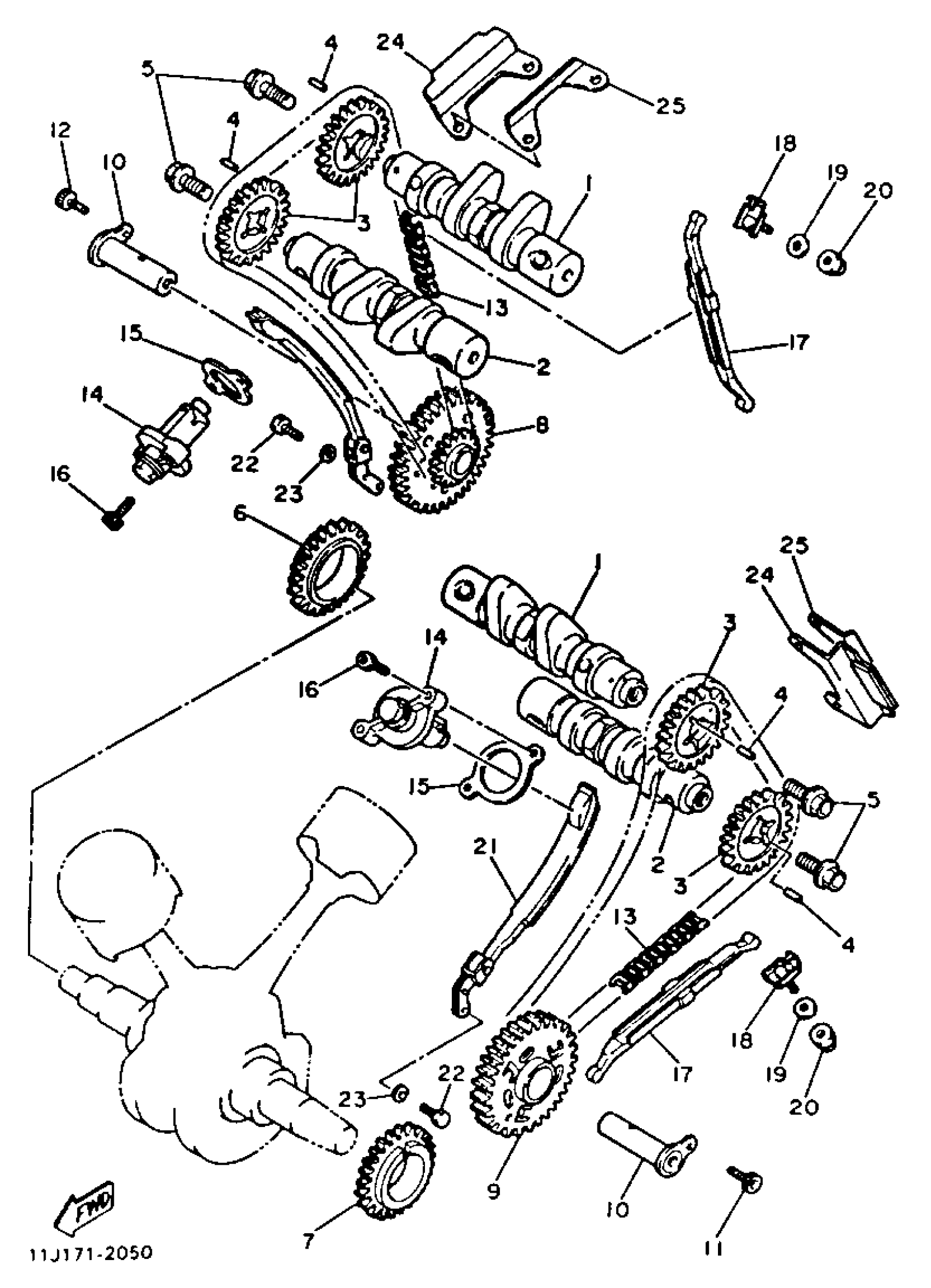

Yamaha XZ550RK (XZ550RK) 1983 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

11H-12171-00-00

Unavailable

2

CAMSHAFT 2

11H-12181-00-00

Unavailable

3

SPROCKET, cam chain (28T)

11H-12176-00-00

Unavailable

4

PIN,DOWEL (603)

93604-10011-00

$8.49

5

BOLT, FLANGE

90105-10153-00

$5.60

6

GEAR, BREAKER DRIVE

(11H-11534-00-00)

Unavailable

7

GEAR, drive (28T)

[11-H1153-60-00

Unavailable

8

CAM CHAIN SPROCKET ASS''Y 1

11H-11540-00-00

Unavailable

9

CAM CHAIN SPROCKET ASS''Y 2

[11-H1155-00-00

Unavailable

10

SHAFT, tensioner

[11-H1224-70-00

Unavailable

11

BOLT,SOCKET

91317-06018-00

$8.49

12

BOLT,SOCKET

91317-06012-00

$8.49

13

CHAIN

94590-42112-00

Unavailable

14

TENSIONER ASSY, CAM CHAIN

11H-12210-02-00

Unavailable

15

GASKET, TENSIONER CASE

3BT-12213-00-00

$7.99

16

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

17

DAMPER, chain 1

11H-12251-00-00

Unavailable

18

PLATE, guide stopper 1

[11-H1223-30-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable

20

NUT (J17)

95380-06800-00

Unavailable

21

DAMPER, chain 2

11H-12252-00-00

Unavailable

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

24

GUIDE, stopper 2

[11-H1224-10-00

Unavailable

25

WASHER, guide stopper

[11-H1223-60-00

Unavailable
