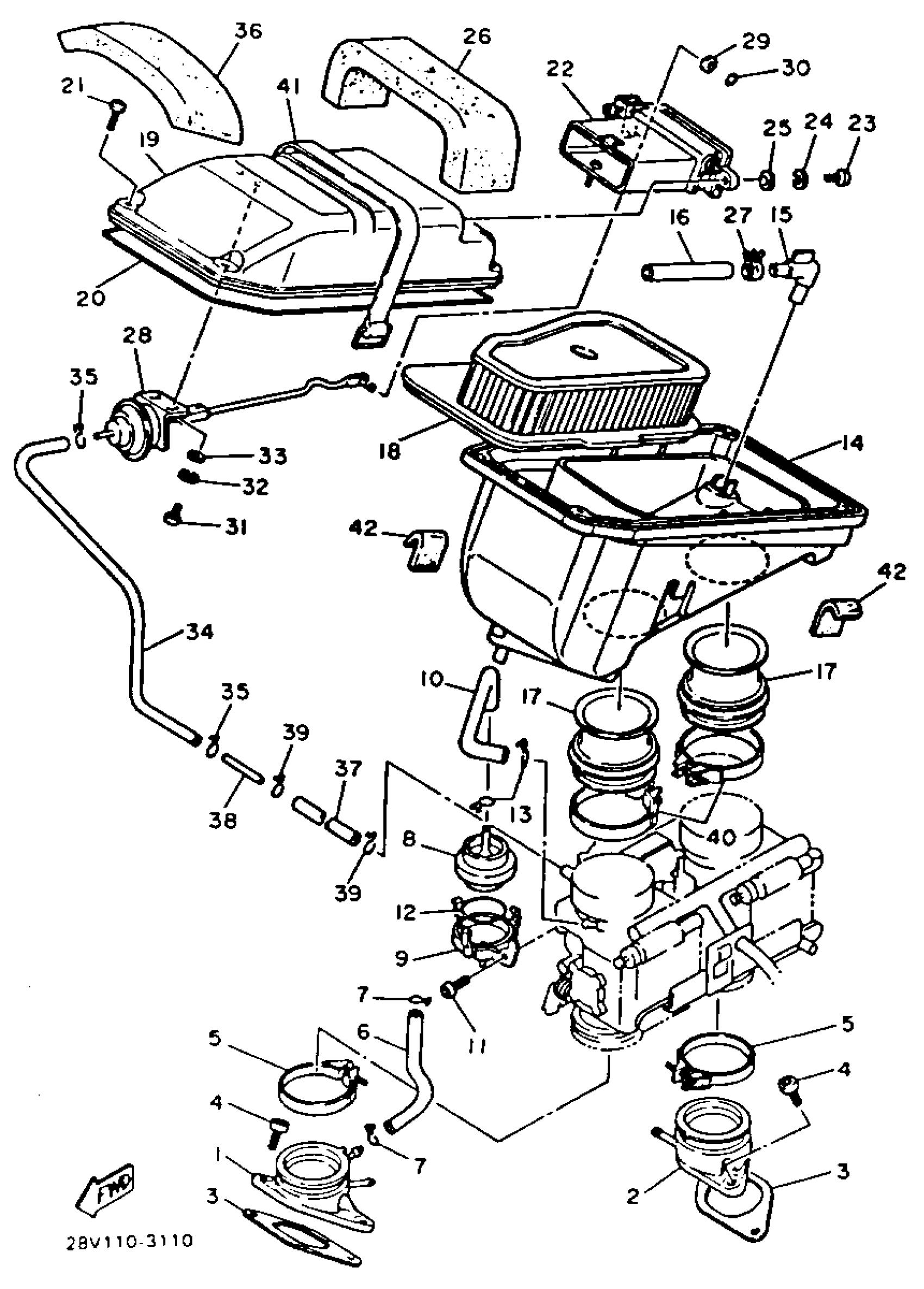

Yamaha XZ550RK (XZ550RK) 1983 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

11H-13586-02-00

Unavailable

2

JOINT, CARBURETOR 2

11H-13596-02-00

Unavailable

3

GASKET, MANIFOLD

11H-13556-11-00

Unavailable

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

HOSE CLAMP ASSY

90450-53005-00

Unavailable

6

HOSE

11H-13926-01-00

Unavailable

7

CLIP

90467-100A1-00

$7.49

8

ELEMENT ASSY

28V-14460-00-00

Unavailable

9

STAY 1

28V-14498-00-00

Unavailable

10

HOSE

90445-07723-00

Unavailable

11

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

12

O-RING (137)

93210-26033-00

Unavailable

13

CLIP (1J7)

90467-07029-00

$2.39

14

CASE, AIR CLEANER 1

(28V-14411-00-00)

Unavailable

15

PIPE

(11H-14419-00-00)

Unavailable

16

HOSE

90445-13650-00

Unavailable

17

JOINT, AIR CLEANER 1

11H-14453-00-00

Unavailable

18

ELEMENT ASSY, AIR CLEANER

28V-14450-00-00

Unavailable

19

CAP, cleaner case 1

[28-VW144-30-00

Unavailable

20

SEAL

1VJ-14462-00-00

Unavailable

21

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

22

DUCT ASS''Y

[28-V1443-00-00

Unavailable

23

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

24

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

25

WASHER, PLAIN (646)

92990-05600-00

Unavailable

26

DAMPER 2

[28-V1442-60-00

Unavailable

27

CLIP

90468-08104-00

Unavailable

28

DAMPER

[28-V1440-90-00

Unavailable

29

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

30

CIRCLIP

[93-43003-03-20

Unavailable

31

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

32

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

33

WASHER, PLAIN (646)

92990-05600-00

Unavailable

34

HOSE

[90-44507-71-10

Unavailable

35

CLIP (1J7)

90467-07029-00

$2.39

36

DAMPER 1

[28-V1442-50-00

Unavailable

37

HOSE

[90-44507-74-70

Unavailable

38

JOINT

[28-V1359-50-00

Unavailable

39

CLIP (1J7)

90467-07029-00

$2.39

40

CLAMP, HOSE

90460-64142-00

Unavailable

41

BAND

11H-14455-00-00

Unavailable

42

DAMPER 1

[11-H1442-50-00

Unavailable
