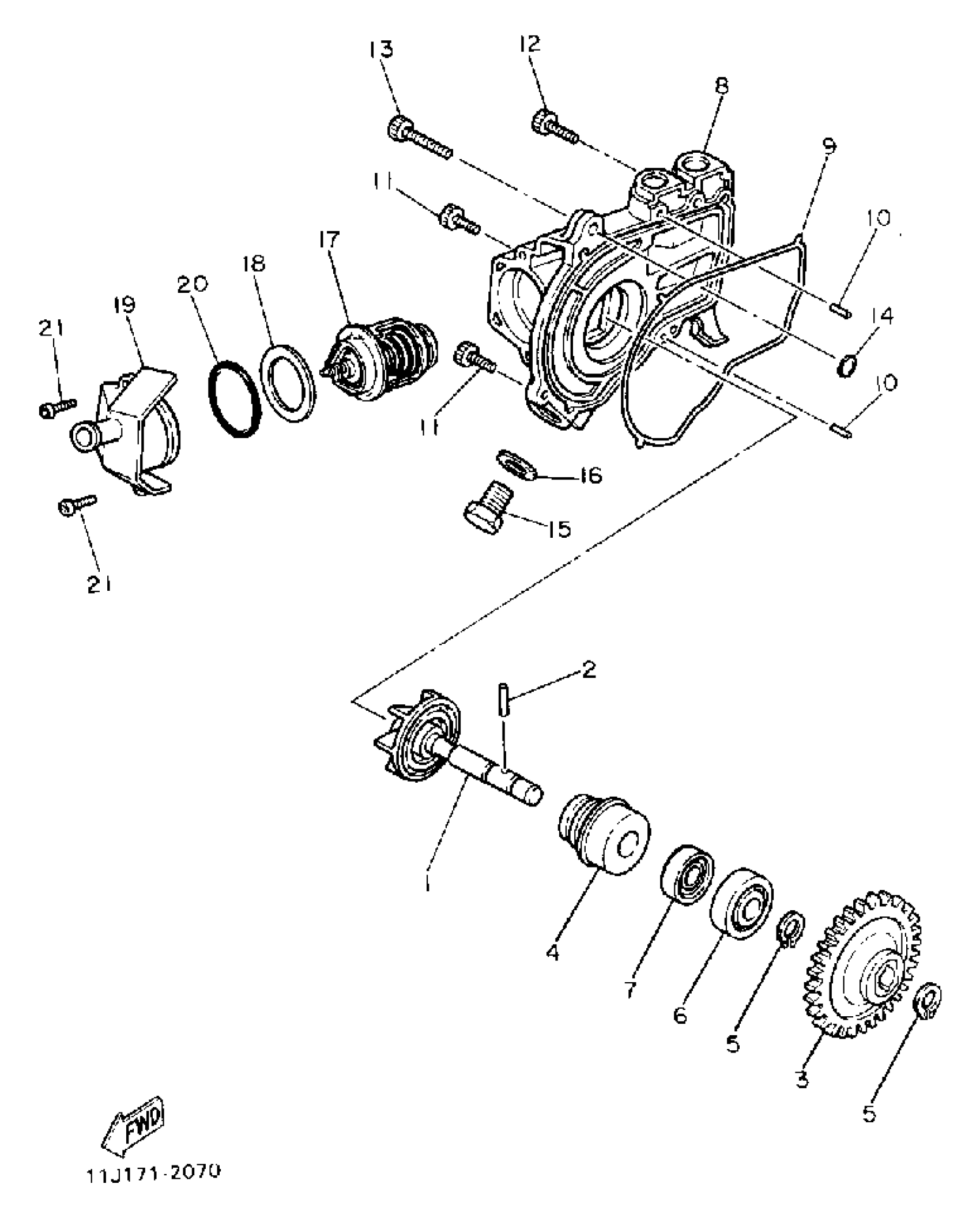

Yamaha XZ550RJ (XZ550RJ) 1982 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASS''Y

11H-12450-01-00

Unavailable

2

PIN, DOWEL

93603-14026-00

$8.49

3

GEAR, impeller shaft (33T)

11H-12459-01-00

Unavailable

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

CIRCLIP(10W)

99009-10400-00

$4.73

6

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$37.99

7

OIL SEAL (J10)

93101-10090-00

$8.49

8

HOUSING, THERMOSTAT

11H-12417-01-00

Unavailable

8

HOUSING, thermostat

11H-12417-02-00

Unavailable

9

O-RING

11H-12439-00-00

Unavailable

10

PIN,DOWEL (603)

93604-10011-00

$8.49

11

BOLT,SOCKET HEAD

91314-06020-00

$1.49

12

BOLT, SOCKET

91314-06030-00

$8.49

13

BOLT, SOCKET

91314-06065-00

$8.49

14

O-RING

93210-07438-00

$8.49

15

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

Unavailable

16

GASKET

214-11198-01-00

Unavailable

17

THERMOSTAT ASSY

99999-03066-00

Unavailable

18

SEAL, THERMOSTAT

11H-12412-00-00

Unavailable

19

COVER, thermostat

11H-12413-02-00

Unavailable

19

COVER, thermostat

11H-12413-02-00

Unavailable

20

O-RING(1EY)

93210-43713-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable
