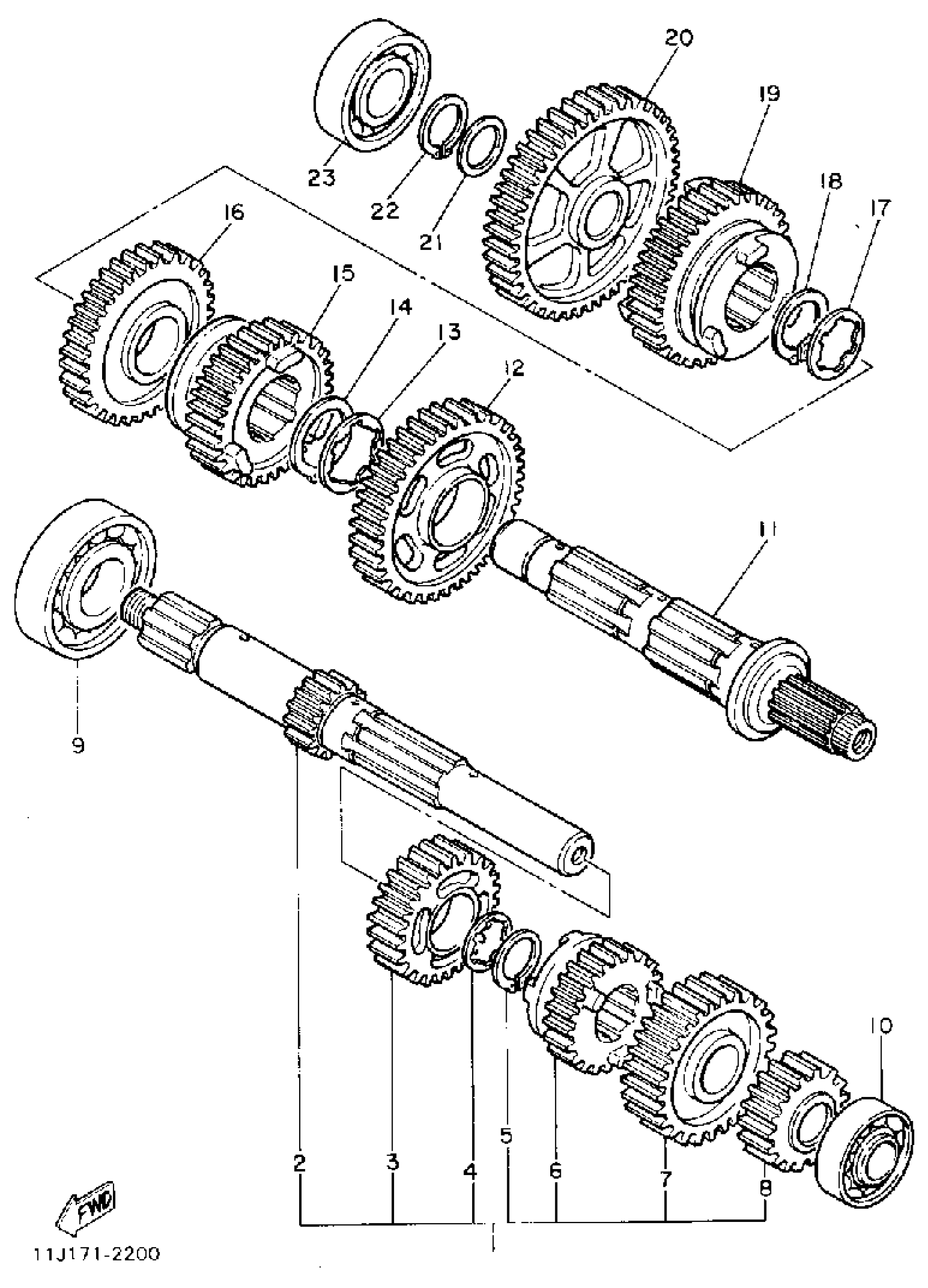

Yamaha XZ550RJ (XZ550RJ) 1982 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

(11H-17410-00-00)

Unavailable

2

. AXLE, MAIN

(11H-17411-00-00)

Unavailable

3

. GEAR, 4TH PINION

(11H-17141-00-00)

Unavailable

4

WASHER (3J3)

90209-22191-00

$7.49

5

CIRCLIP (4L0)

93440-25084-00

$5.60

6

. GEAR, 3RD PINION

(11H-17131-00-00)

Unavailable

7

GEAR, 5TH PINION

4VR-17151-01-00

Unavailable

8

GEAR, 2ND PINION (20T)

4KU-17121-00-00

Unavailable

9

BEARING (3Y1)

93306-30525-00

$63.99

10

BEARING

93306-00429-00

Unavailable

10

BEARING

93306-00429-00

Unavailable

11

DRIVE AXLE ASSEMBLY

(11H-17402-01-00)

Unavailable

12

GEAR, 2ND WHEEL

(11H-17221-00-00)

Unavailable

13

WASHER (3J3)

90209-27192-00

$8.49

14

CIRCLIP (3J3)

93440-30077-00

$10.49

15

GEAR, 5TH WHEEL

4VR-17251-01-00

Unavailable

16

GEAR, 3rd wheel (31T)

11H-17231-00-00

Unavailable

17

WASHER (3J3)

90209-22191-00

$7.49

18

CIRCLIP (4L0)

93440-25084-00

$5.60

19

GEAR, 4th wheel (32T)

11H-17241-00-00

Unavailable

20

GEAR, 1st wheel (43T)

11H-17211-00-00

Unavailable

21

WASHER PLATE 328171160000

90201-20276-00

Unavailable

22

CIRCLIP(1AR)

99009-20400-00

Unavailable

23

BEARING(1GJ)

93306-20458-00

Unavailable
