Description

Price

1

REAR ARM

(11H-22110-01-35)

Unavailable

2

BEARING (4X7)

93320-32403-00

$46.99

3

BUSH 2

4X7-22124-00-00

$75.99

4

COVER, THRUST 2

4X7-22129-00-00

$22.99

5

WASHER

3YF-22149-00-00

$8.99

5

WASHER, PLATE(2VM)

90201-247L2-00

$10.49

5

WASHER, PLATE

90201-245A0-00

Unavailable

6

SHAFT, PIVOT

4X7-22141-00-00

Unavailable

7

WASHER, LOCK

90215-16181-00

Unavailable

8

BOOT, rubber

11H-22189-00-00

Unavailable

9

BOLT, FLANGE

95817-10035-00

$9.49

10

NUT(4KG)

90179-10658-00

$9.49

11

BOLT

97013-08035-00

$5.60

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

PLUG (4X7)

90338-20113-00

Unavailable

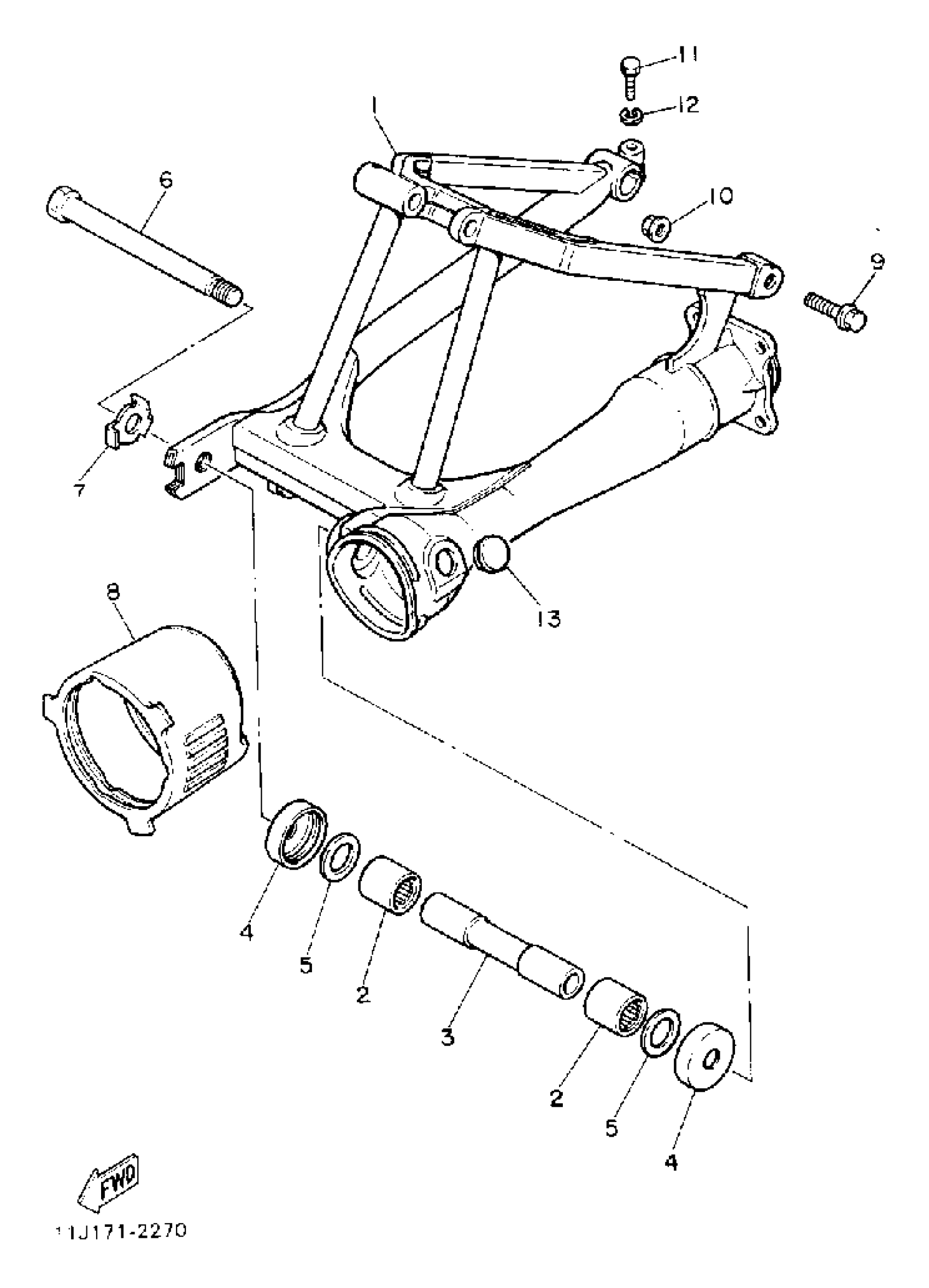

Yamaha XZ550RJ (XZ550RJ) 1982 SWING ARM Diagram

REAR ARM

BEARING (4X7)

BUSH 2

COVER, THRUST 2

WASHER

WASHER, PLATE(2VM)

WASHER, PLATE

SHAFT, PIVOT

WASHER, LOCK

BOOT, rubber

BOLT, FLANGE

NUT(4KG)

BOLT

YBS67-8 WASHER, SPRING

PLUG (4X7)
