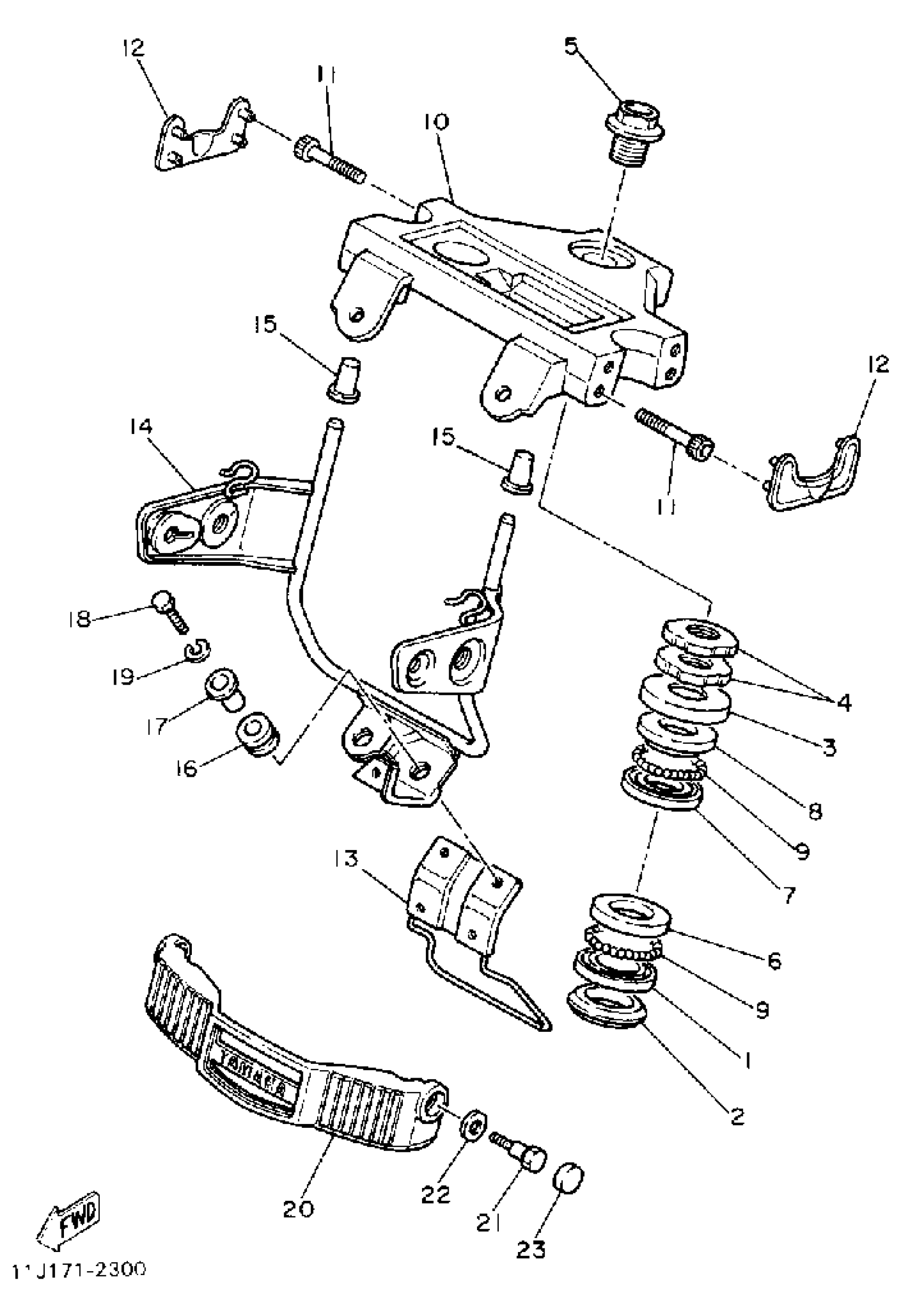

Yamaha XZ550RJ (XZ550RJ) 1982 STEERING Diagram

#

Description
Price

1

RACE, BALL 1

256-23411-00-00

Unavailable

2

SEAL, DUST

164-23462-00-00

$7.99

3

COVER, BALL RACE

136-23415-00-00

$8.99

4

NUT

90179-25004-00

$24.99

5

BOLT, WASHER BASED(1AR)

90105-14365-00

$11.49

6

RACE, BALL2

256-23412-00-00

Unavailable

7

RACE, BALL3

256-23413-00-00

Unavailable

8

RACE, BALL4

256-23414-00-00

Unavailable

9

BALL

93501-04011-00

$8.49

10

CROWN, handle

11H-23435-00-98

Unavailable

11

BOLT,SOCKET

91317-08040-00

$7.49

12

CAP, bolt

11H-23469-00-00

Unavailable

13

BRACKET, headlight stay 1

11H-23175-00-00

Unavailable

14

STAY, HEADLIGHT

11H-23174-00-00

Unavailable

15

DAMPER 1

11H-2317J-00-00

Unavailable

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

COLLAR

90387-06158-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

COVER, OUTER 1

11H-23122-02-00

Unavailable

21

BOLT

90109-06583-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

PLUG, SPEC''L SHAPE

90338-24115-00

Unavailable
