STAND FOOTREST

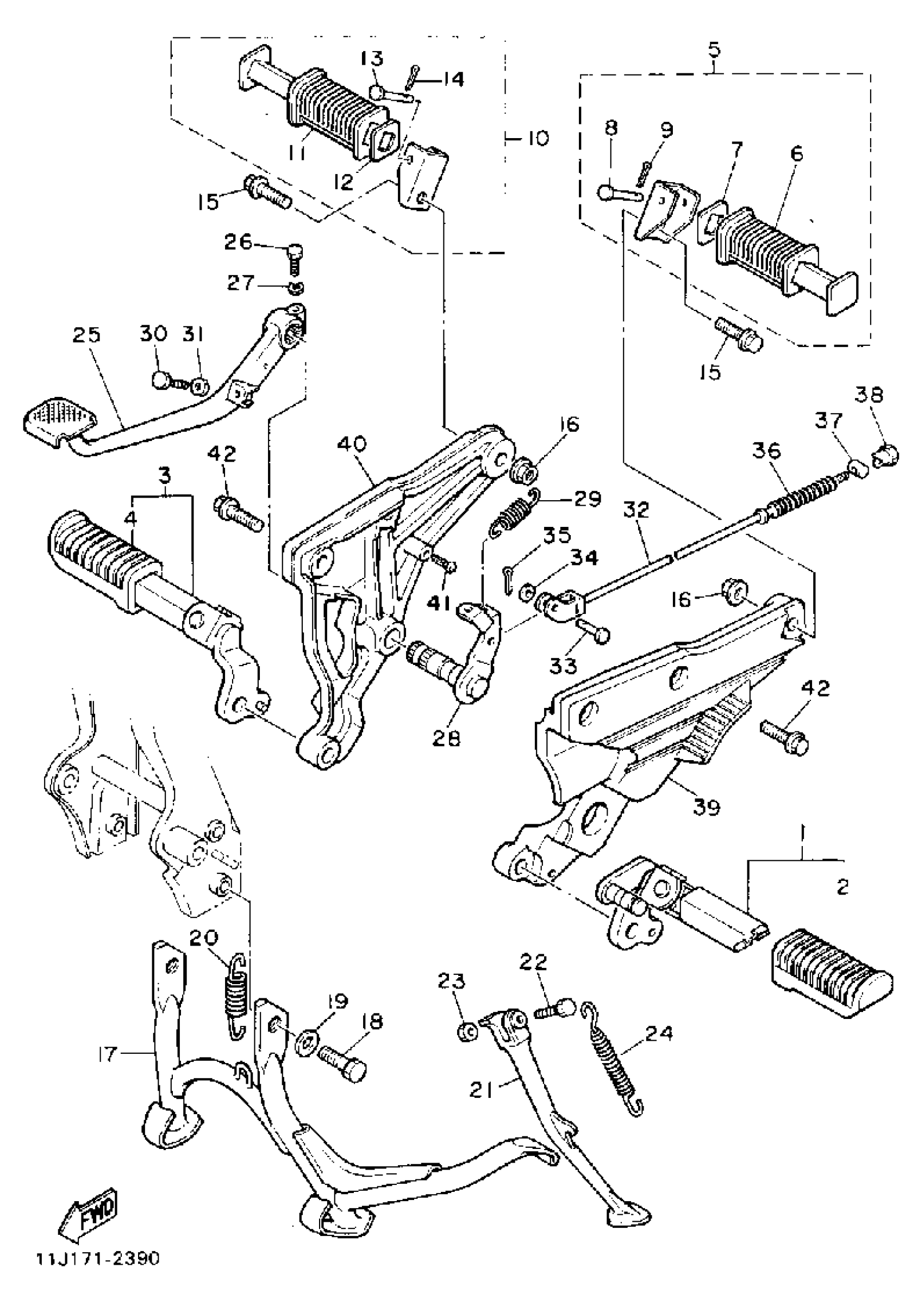

Yamaha XZ550RJ (XZ550RJ) 1982 STAND FOOTREST Diagram
#
1
FRT FOOTREST ASSEMBLY L
(11H-27410-00-R4)
Unavailable
3
FRT FOOTREST ASSEMBLY R
11H-27420-00-R4
Unavailable
5
RR FOOTREST ASY 1
4G0-27430-00-00
Unavailable
6
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
8
PIN, WITH HOLE (465)
90240-06042-00
Unavailable
9
PIN, COTTER
91490-16020-00
Unavailable
10
REAR FOOTREST ASS''Y 2
4G0-27440-00-00
Unavailable
11
COVER, REAR FOOTREST
447-27433-00-00
Unavailable
13
PIN, WITH HOLE (465)
90240-06042-00
Unavailable
14
PIN, COTTER
91490-16020-00
Unavailable
16
NUT, FLANGE(3BM)
95704-10500-00
Unavailable
17
STAND, MAIN
(11H-27111-00-R4)
Unavailable
18
BOLT,HEXAGON
97017-10016-00
Unavailable
19
WASHER, PLATE (3J6)
90201-100A1-00
Unavailable
20
SPRING, tension
90506-40256-00
Unavailable
21
STAND, side
28V-27311-00-R4
Unavailable
22
BOLT
90109-10473-00
Unavailable
23
NUT (682)
95380-10700-00
Unavailable
24
SPRING (460)
90507-29009-00
Unavailable
25
PEDAL, BRAKE
11H-27211-00-93
Unavailable
26
BOLT (1J7)
90109-06468-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
SHAFT, BRAKE PEDAL
(11H-27212-00-00)
Unavailable
29
SPRING, HOOK (888)
90506-20115-00
Unavailable
30
SCREW 341272170000
90153-06008-00
Unavailable
31
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
32
ROD, BRAKE
11U-27231-00-00
Unavailable
33
PIN, CLEVIS (24X)
90240-06103-00
Unavailable
34
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
35
PIN, COTTER
91490-20025-00
Unavailable
36
SPRING, (180-27236-00)
90501-10245-00
Unavailable
37
PIN 1562723700
90249-12008-00
Unavailable
38
NUT (25K)
90179-06411-00
Unavailable
39
BRACKET 2
11H-27442-00-00
Unavailable
40
BRACKET 3
(11H-27443-00-00)
Unavailable
41
HOOK 1
(4L0-2744E-00-00)
Unavailable
42
BOLT, FLANGE
95817-10020-00
Unavailable
