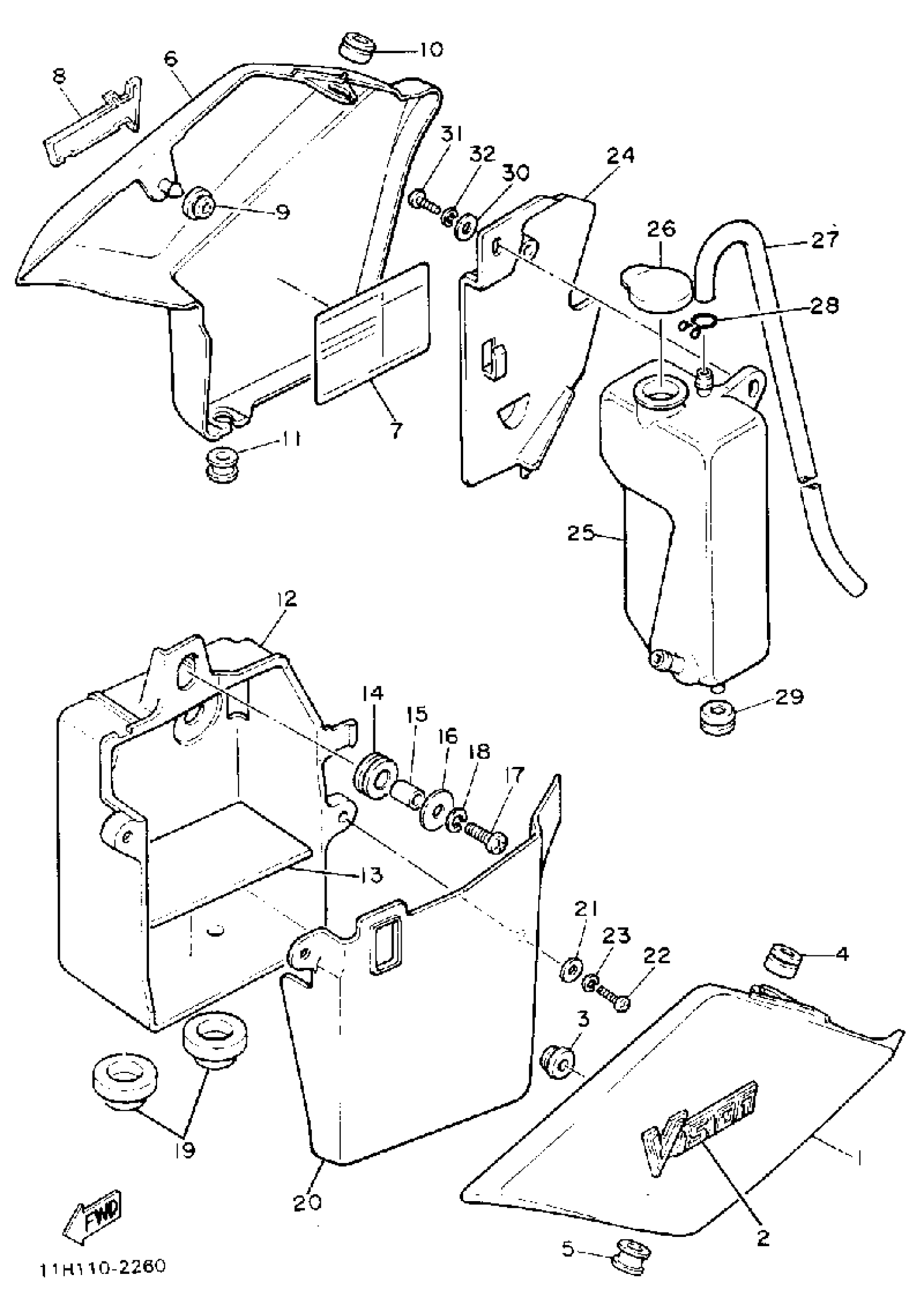

Yamaha XZ550RJ (XZ550RJ) 1982 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

11H-21711-00-63

Unavailable

1

COVER, SIDE 1 (NEW WHITE)

11H-21711-00-6G

Unavailable

1

COVER, SIDE 1

11H-21711-00-6M

Unavailable

2

EMBLEM 1

11H-21781-00-00

Unavailable

3

GROMMET

90480-13014-00

$8.49

4

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

5

GROMMET (5G2)

90480-12296-00

$7.49

6

COVER, SIDE 2

11H-21721-00-63

Unavailable

6

COVER, SIDE 2 (NEW WHITE)

11H-21721-00-6G

Unavailable

6

COVER, SIDE 2

11H-21721-00-6M

Unavailable

7

PLATE, SPEC

(11H-21683-00-00)

Unavailable

8

EMBLEM 2

11H-21782-00-00

Unavailable

9

GROMMET

90480-13014-00

$8.49

10

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

11

GROMMET (5G2)

90480-12296-00

$7.49

12

BOX COMP.

11H-21240-00-00

Unavailable

13

DAMPER

11H-21747-00-00

Unavailable

14

GROMMET (2N3)

90480-16233-00

Unavailable

15

COLLAR

90387-06113-00

Unavailable

16

WASHER, PLATE

90201-06747-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

GROMMET

90480-23192-00

Unavailable

20

LID

11H-28185-00-00

Unavailable

21

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable

22

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

23

WASHER, SPRING

92907-06100-00

Unavailable

24

PLATE, BRIDGE

(11H-21243-00-00)

Unavailable

25

TANK, RECOVERY

11H-21871-01-00

Unavailable

26

CAP

1AA-21815-00-00

Unavailable

27

HOSE

91A30-07036-00

Unavailable

28

CLIP

90467-100A1-00

Unavailable

29

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

30

WASHER, PLATE

90201-06M08-00

Unavailable

31

SCREW PAN HEAD

98580-06020-00

Unavailable

32

WASHER, SPRING

92995-06100-00

Unavailable
