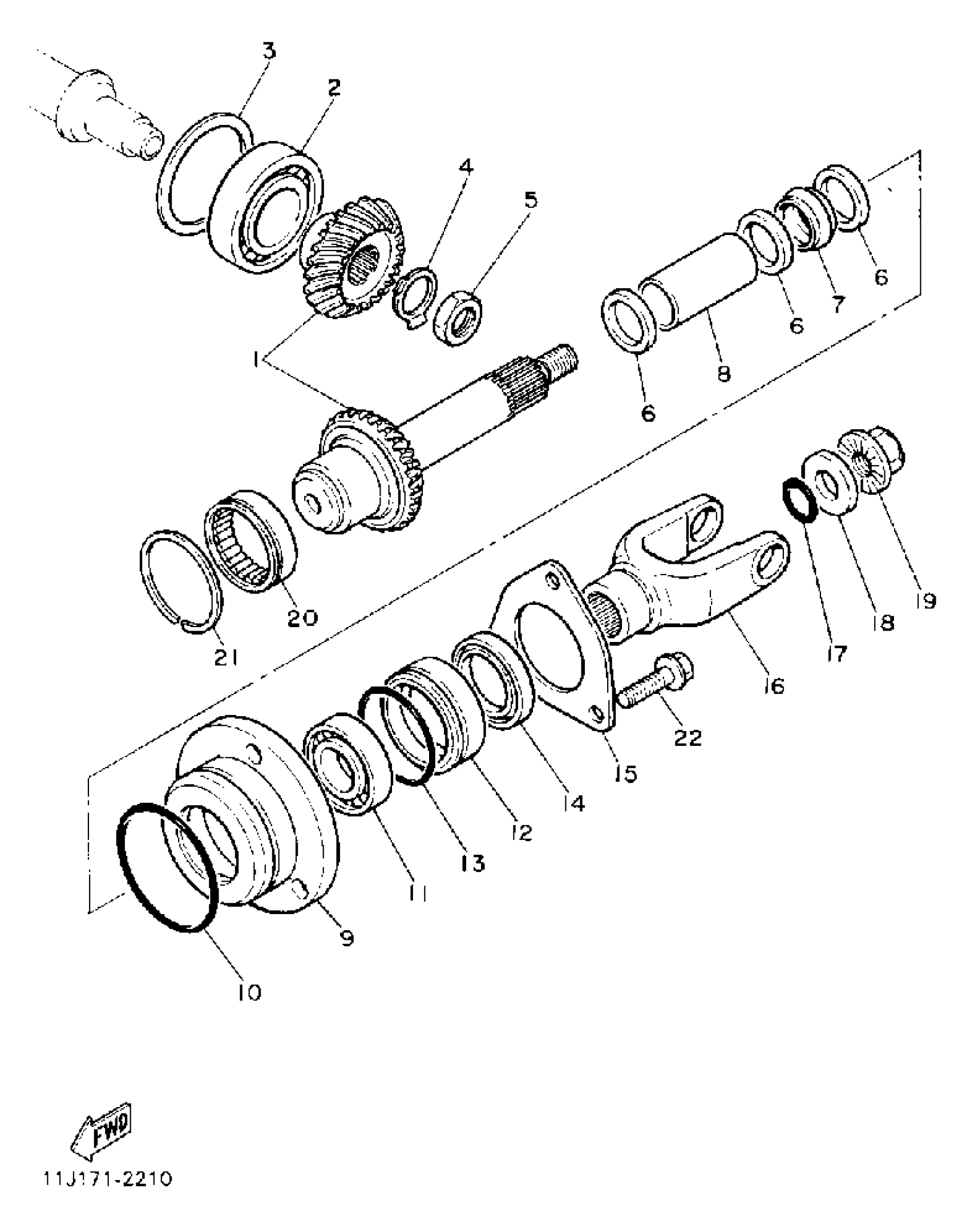

Yamaha XZ550RJ (XZ550RJ) 1982 MIDDLE DRIVE GEAR Diagram

#

Description
Price

1

MIDDLE GEAR

(11H-W1751-00-00)

Unavailable

2

BEARING

93306-20710-00

Unavailable

3

SHIM, THRUST

4H7-17537-00-20

$5.49

3

SHIM, THRUST (0.30T)

4H7-17537-00-30

Unavailable

3

SHIM, THRUST (0.40T)

4H7-17537-00-40

Unavailable

4

WASHER, LOCK(2NX)

90215-23265-00

$5.60

5

NUT, SPEC''L SHAPE

90179-18360-00

Unavailable

6

WASHER, PLATE (4X7)

90201-255A6-00

$12.49

7

SPACER, EXPANSION

1J7-46129-Y1-00

$37.99

8

COLLAR

90387-251E1-00

Unavailable

9

HOUSING, BEARING

11H-17551-00-00

Unavailable

10

O-RING

93210-626A7-00

$14.99

11

BRG,R-B 6205RC2 52MM 124G KY

93306-20548-00

Unavailable

12

RETAINER, BEARING

4X7-17554-00-00

Unavailable

13

O-RING (4X7)

93210-52449-00

$15.99

14

OIL SEAL (4X7)

93101-35099-00

Unavailable

15

PLATE, BEARING

(4X7-17558-00-00)

Unavailable

16

YOKE, joint

11H-17556-00-00

Unavailable

17

O-RING (2H7)

93210-14359-00

Unavailable

18

WASHER, PLATE (1J7)

90201-14633-00

Unavailable

19

NUT

90179-14317-00

Unavailable

20

BEARING, CYLINDRICAL

93311-34050-00

Unavailable

21

CIRCLIP

93440-50102-00

Unavailable

22

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable
