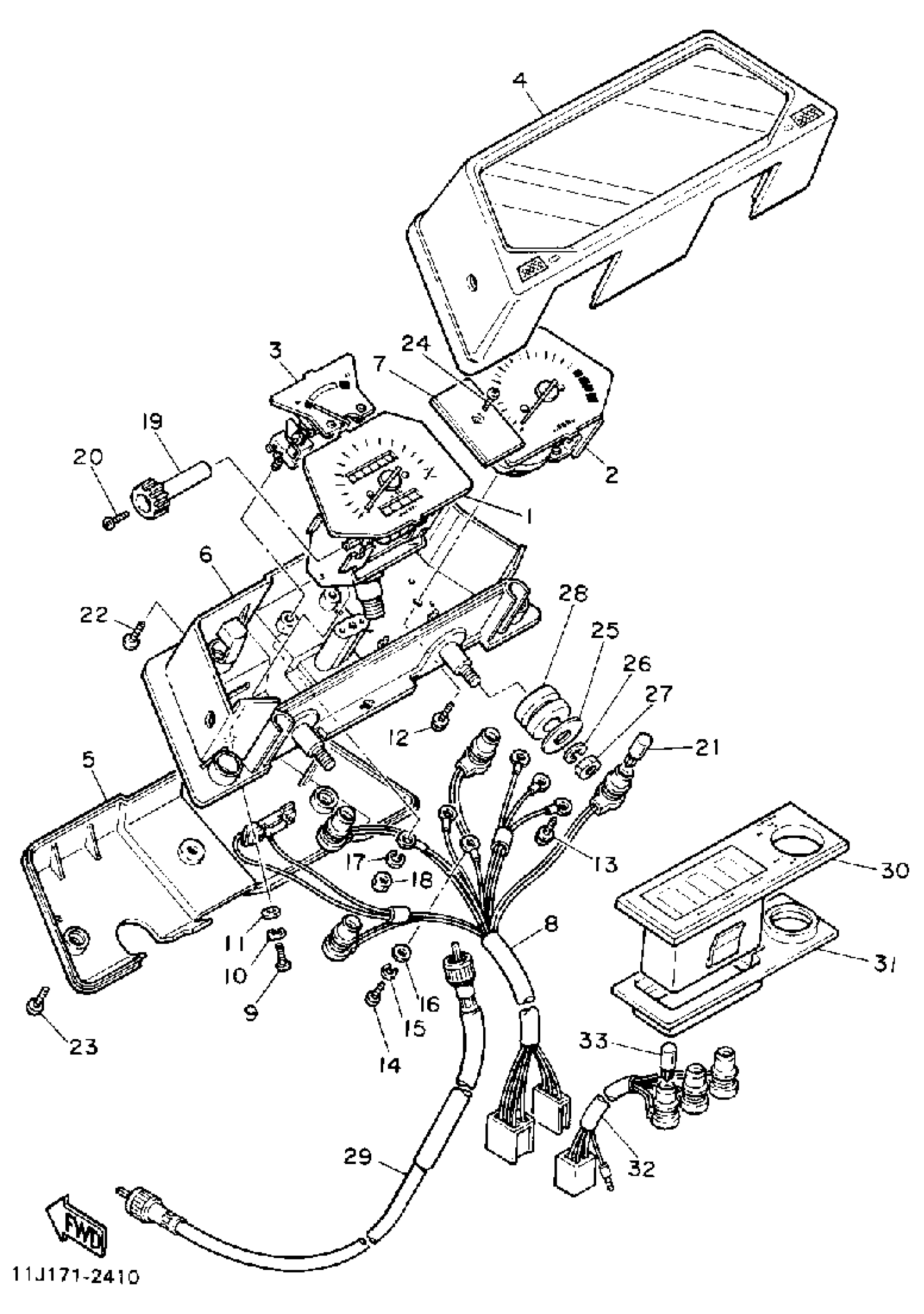

Yamaha XZ550RJ (XZ550RJ) 1982 METER Diagram
#
Description
Price
1
SPEEDOMETER ASSEMBLY
11H-83570-A0-00
Unavailable
2
TACHOMETER ASSEMBLY (11H-83540-00)
11U-83540-00-00
Unavailable
3
WATER TEMP METER
11H-83590-00-00
Unavailable
4
COVER, meter
11H-83559-00-00
Unavailable
5
COVER, meter 2
11H-83579-00-00
Unavailable
6
CASE, INNER
11H-8353H-00-00
Unavailable
7
PANEL METER 2
11H-83613-00-00
Unavailable
8
SOCKET CORD ASSEMBLY
11H-83509-00-00
Unavailable
12
SCREW, WITH WASHER
90159-04043-00
Unavailable
13
SCREW, WITH WASHER
90159-03044-00
Unavailable
16
WASHER(3SX)
92907-03600-00
Unavailable
18
NUT(6TA)
95307-04600-00
Unavailable
19
KNOB, TRIP METER
11H-83578-00-00
Unavailable
20
SCREW, PAN HEAD (11H)
90157-02031-00
Unavailable
21
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
22
SCREW, TAPPING
90164-04005-00
Unavailable
23
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
24
SCREW, binding
90154-02012-00
Unavailable
25
WASHER, PLATE
90201-06086-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
NUT, HEXAGON
95380-06600-00
Unavailable
28
DAMPER (11H-83541-00)
16G-84736-00-00
Unavailable
29
SPEEDOMETER CABLE ASSY
16M-83550-01-00
Unavailable
30
CASE, pilot box
11H-8356A-00-00
Unavailable
31
DAMPER 2
11H-83526-00-00
Unavailable
32
SOCKET CORD ASSEMBLY
(11H-83520-00-00)
Unavailable
33
BULB, MTR.12V3.4W
4G1-84744-00-XX
Unavailable
