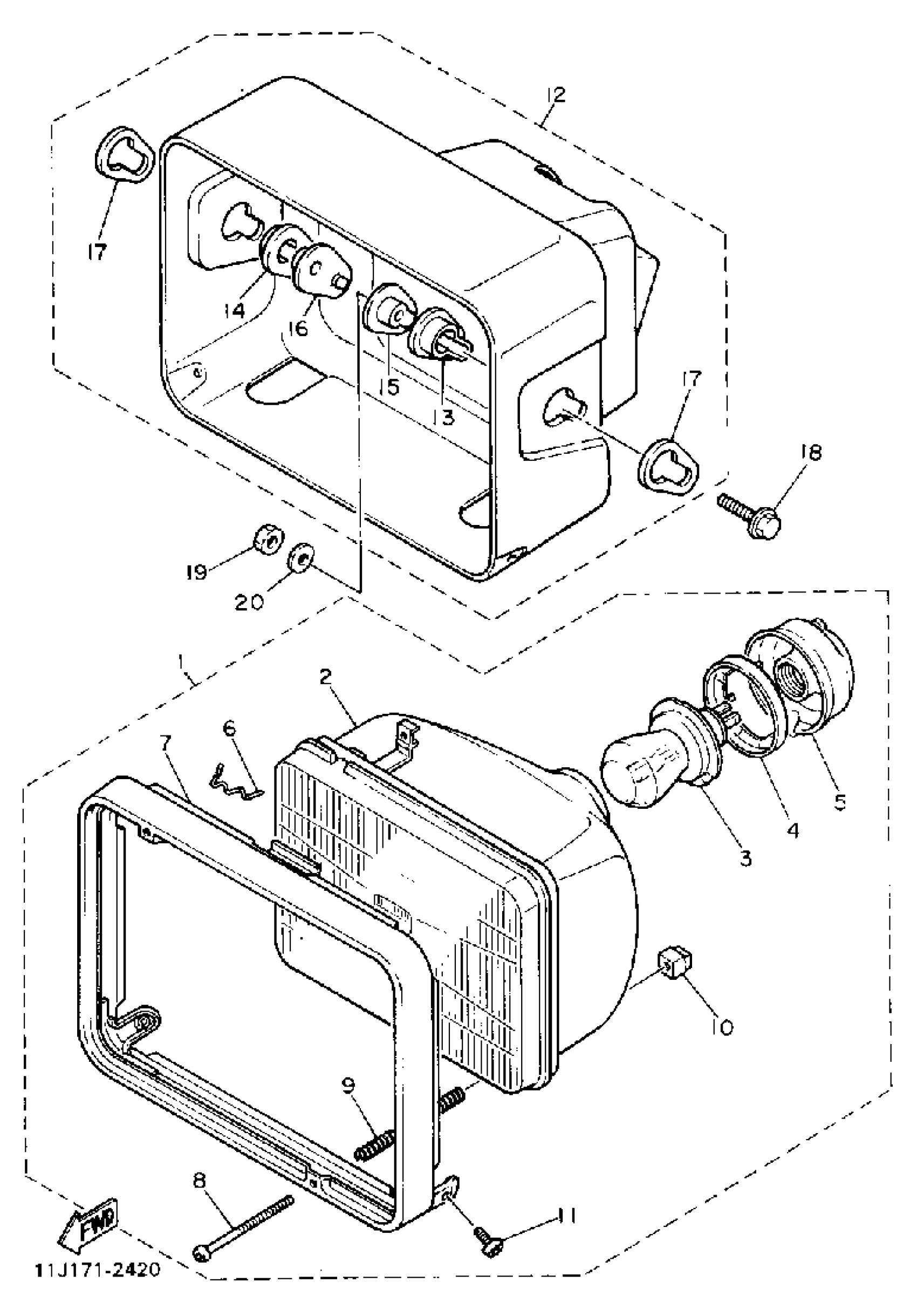

Yamaha XZ550RJ (XZ550RJ) 1982 HEADLIGHT Diagram

HEADLIGHT UNIT ASSEMBLY

10L-84303-A0-00

Unavailable

. LENS, HEADLIGHT

11H-84321-60-00

Unavailable

BULB, HEADLIGHT

46B-84314-00-00

Unavailable

SETTING PLATE, BULB

2F9-84375-00-00

Unavailable

COVER, SOCKET

2F9-84397-01-00

$30.99

SET SPRING

55X-84124-00-00

$11.99

. RIM, HEADLIGHT

11H-84315-00-00

Unavailable

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

SPRING, ADJUST

341-84332-60-00

$9.99

NUT, ADJUST

198-84334-60-00

$7.99

SCREW, PAN

98517-05012-00

$4.73

BODY ASS''Y

11H-84330-00-00

Unavailable

BUSHING 1

5G2-84366-00-00

Unavailable

. DAMPER, HEADLIGHT 2

5G2-84367-00-00

Unavailable

COLLAR 1

5G2-84388-00-00

Unavailable

. SCREW, MNTNG RING

5G2-84398-00-00

Unavailable

BUSHING

5G2-84368-00-00

Unavailable

BOLT, SMALL FLANGE

95027-08030-00

Unavailable

NUT(6L2)

95333-08600-00

Unavailable

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable
