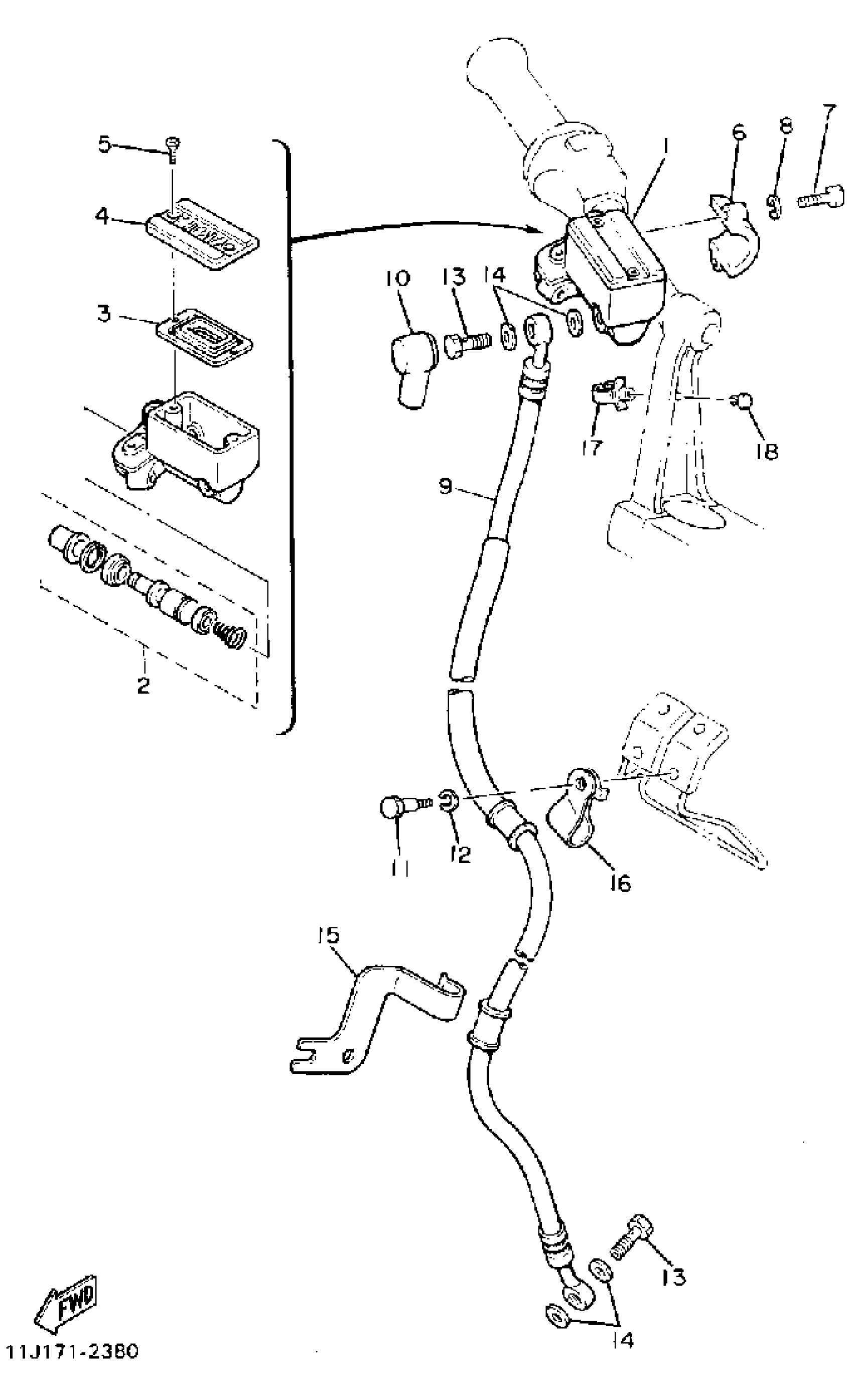

Yamaha XZ550RJ (XZ550RJ) 1982 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

3TB-25870-00-00

$251.38

2

CYLINDER KIT, MASTER

23L-W0041-00-00

$116.44

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$20.32

4

CAP, RESERVOIR

4H7-25852-00-00

$33.30

5

SCREW, FLAT

98707-04012-00

$1.34

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$2.78

8

WASHER, SPRING

92907-06100-00

$0.98

9

HOSE, BRAKE 1

(11H-25872-00-00)

Unavailable

10

BOOT, MASTER CYLINDER

4L0-25862-01-00

$5.96

11

BOLT, HEXAGON

97017-06020-00

$2.37

12

WASHER, SPRING

92907-06100-00

$0.98

13

BOLT, UNION(3GM)

90401-10159-00

$8.26

14

WASHER, PLATE(481)

90201-10118-00

Unavailable

15

HOLDER, brake hose 1

11H-25875-10-00

Unavailable

16

HOLDER, BRKE HOSE 2

(11H-25876-00-00)

Unavailable

17

GUIDE, CABLE

11H-26279-00-00

Unavailable

18

PLUG, SPEC''L SHAPE

90338-06128-00

Unavailable
