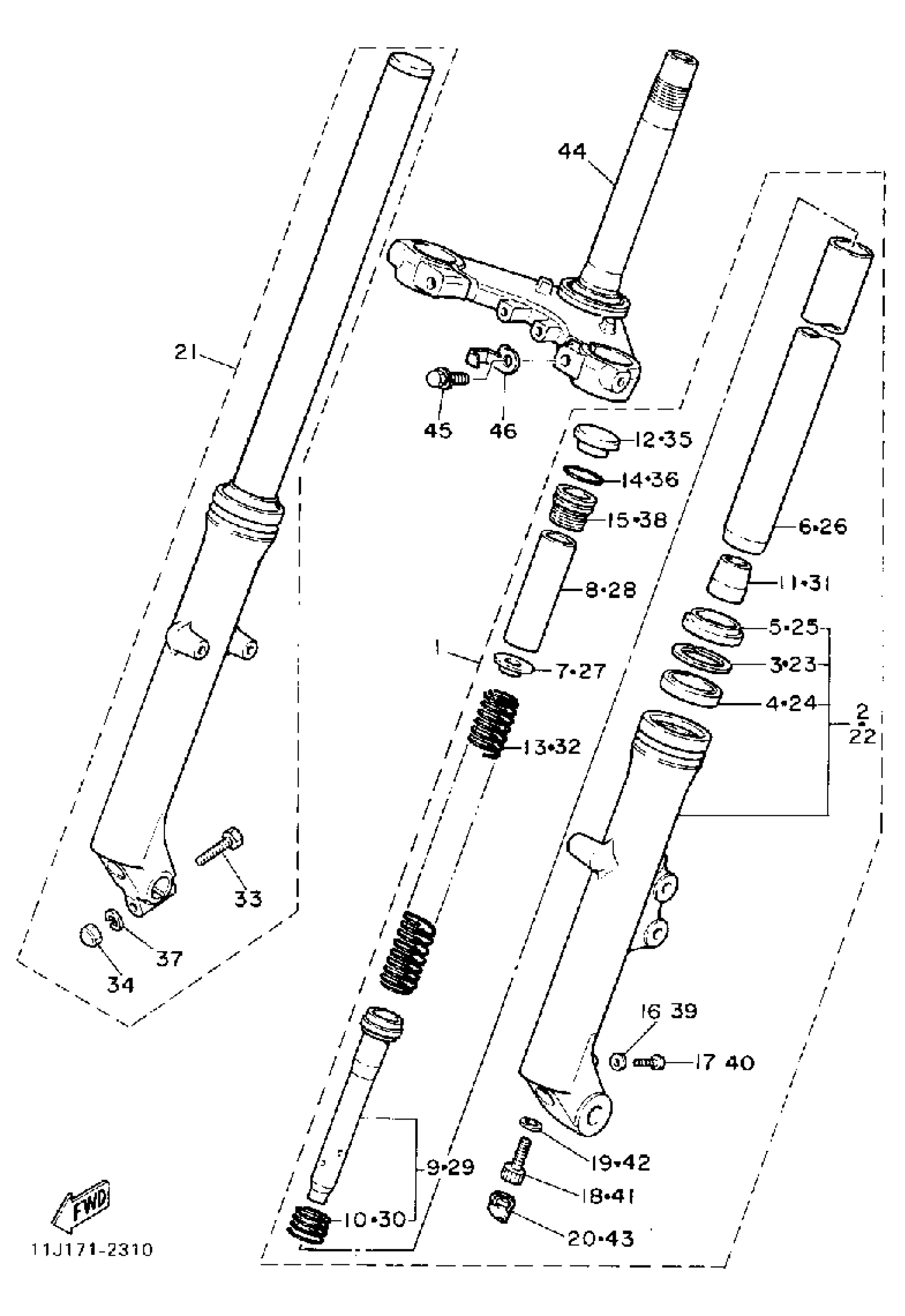

Yamaha XZ550RJ (XZ550RJ) 1982 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

(11H-23102-00-00)

Unavailable

2

TUBE, OUTER 1

(11H-23126-00-38)

Unavailable

3

RING, SNAP

4A1-23156-00-00

$5.49

4

OIL SEAL

4G0-23145-00-00

Unavailable

5

SEAL, DUST

4G0-23144-01-00

Unavailable

6

. INNER TUBE 1

11H-23110-00-00

Unavailable

7

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

8

SPACER

11H-23118-00-00

Unavailable

9

CYLINDER, FRTFRK

(11H-23170-00-00)

Unavailable

10

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

11

TAPER SPINDLE

1W1-23173-L0-00

$31.99

12

CAP

1T3-23168-50-00

$8.99

13

SPRING, FRONT FORK

(11H-23141-00-00)

Unavailable

14

GASKET

240-23114-00-00

$13.49

15

. BOLT, CAP

11H-23111-00-00

Unavailable

16

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

17

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

19

GASKET

509-23158-L0-00

Unavailable

20

PLUG

(11H-2312G-00-00)

Unavailable

21

FRONT FORK ASSEMBLY R

(11H-23103-00-00)

Unavailable

22

TUBE, OUTER 2

(11H-23136-00-38)

Unavailable

23

RING, SNAP

4A1-23156-00-00

$5.49

24

OIL SEAL

4G0-23145-00-00

Unavailable

25

SEAL, DUST

4G0-23144-01-00

Unavailable

26

. INNER TUBE 1

11H-23110-00-00

Unavailable

27

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

28

SPACER

11H-23118-00-00

Unavailable

29

CYLINDER, FRTFRK

(11H-23170-00-00)

Unavailable

30

.. SPRING, REBOUND

509-23151-L0-00

Unavailable

31

TAPER SPINDLE

1W1-23173-L0-00

$31.99

32

SPRING, FRONT FORK

(11H-23141-00-00)

Unavailable

33

BOLT (1E6)

90101-08340-00

Unavailable

34

NUT, CROWN

95303-08800-00

Unavailable

35

CAP

1T3-23168-50-00

$8.99

36

GASKET

240-23114-00-00

$13.49

37

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

38

. BOLT, CAP

11H-23111-00-00

Unavailable

39

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

40

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

41

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

42

GASKET

509-23158-L0-00

Unavailable

43

PLUG

(11H-2312G-00-00)

Unavailable

44

UNDER BRACKET COMP. (11H-23340-00-33)

11U-23340-30-33

Unavailable

45

. BOLT 1

4G0-23346-00-00

Unavailable

46

CLAMP

(11H-2312H-00-00)

Unavailable
