Description

Price

1

DISC, BRAKE

11H-25831-00-00

Unavailable

2

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

WASHER, LOCK

11H-25834-00-00

Unavailable

4

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

4

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

29L-2580T-00-00

Unavailable

5

BRAKE PAD KIT

43F-W0045-01-00

Unavailable

6

. SHIM, CALIPER

(11H-25827-00-00)

Unavailable

6

. SHIM, CALIPER

11U-25827-10-00

Unavailable

7

PAD SPRING, CALIPER

11H-25919-00-00

Unavailable

8

PISTON ASSY, CALIPER

4X8-W0057-00-00

$139.99

9

BLEED SCREW KIT

15B-W0048-00-00

$19.99

10

BOOT

4X8-25917-00-00

Unavailable

11

BOOT 2

5R2-25937-00-00

$37.99

12

BOLT, WASHER BASED(3VD)

90105-10638-00

$7.49

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

14

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

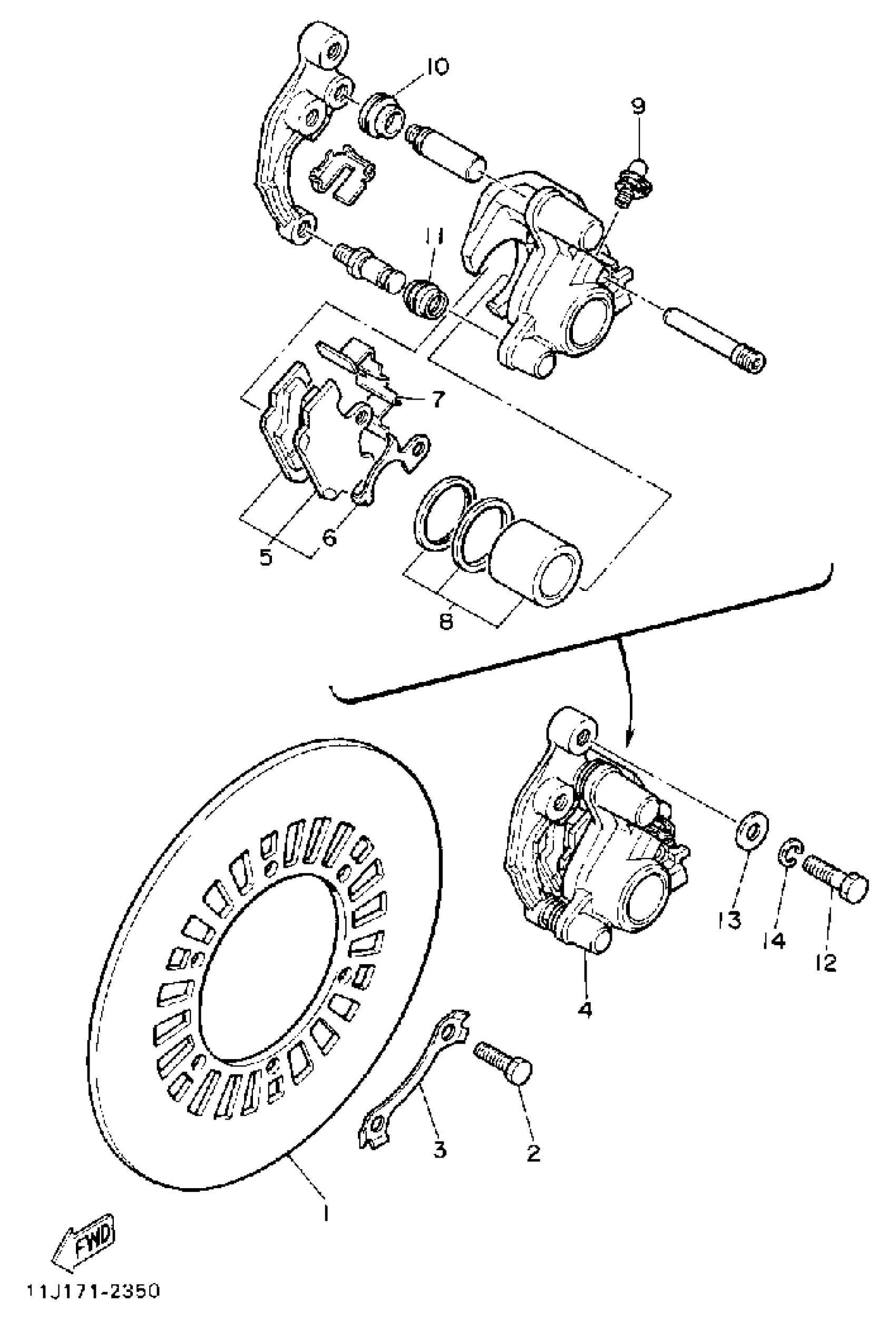

Yamaha XZ550RJ (XZ550RJ) 1982 FRONT BRAKE CALIPER Diagram

DISC, BRAKE

BOLT, HEXAGON (1L9)

WASHER, LOCK

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

CALIPER ASSEMBLY (LEFT) (11H-25810-10) (LEFT)

BRAKE PAD KIT

. SHIM, CALIPER

. SHIM, CALIPER

PAD SPRING, CALIPER

PISTON ASSY, CALIPER

BLEED SCREW KIT

BOOT

BOOT 2

BOLT, WASHER BASED(3VD)

958-69527-00 WASHER, PLAIN

YBS67-10 WASHER, SPRING
