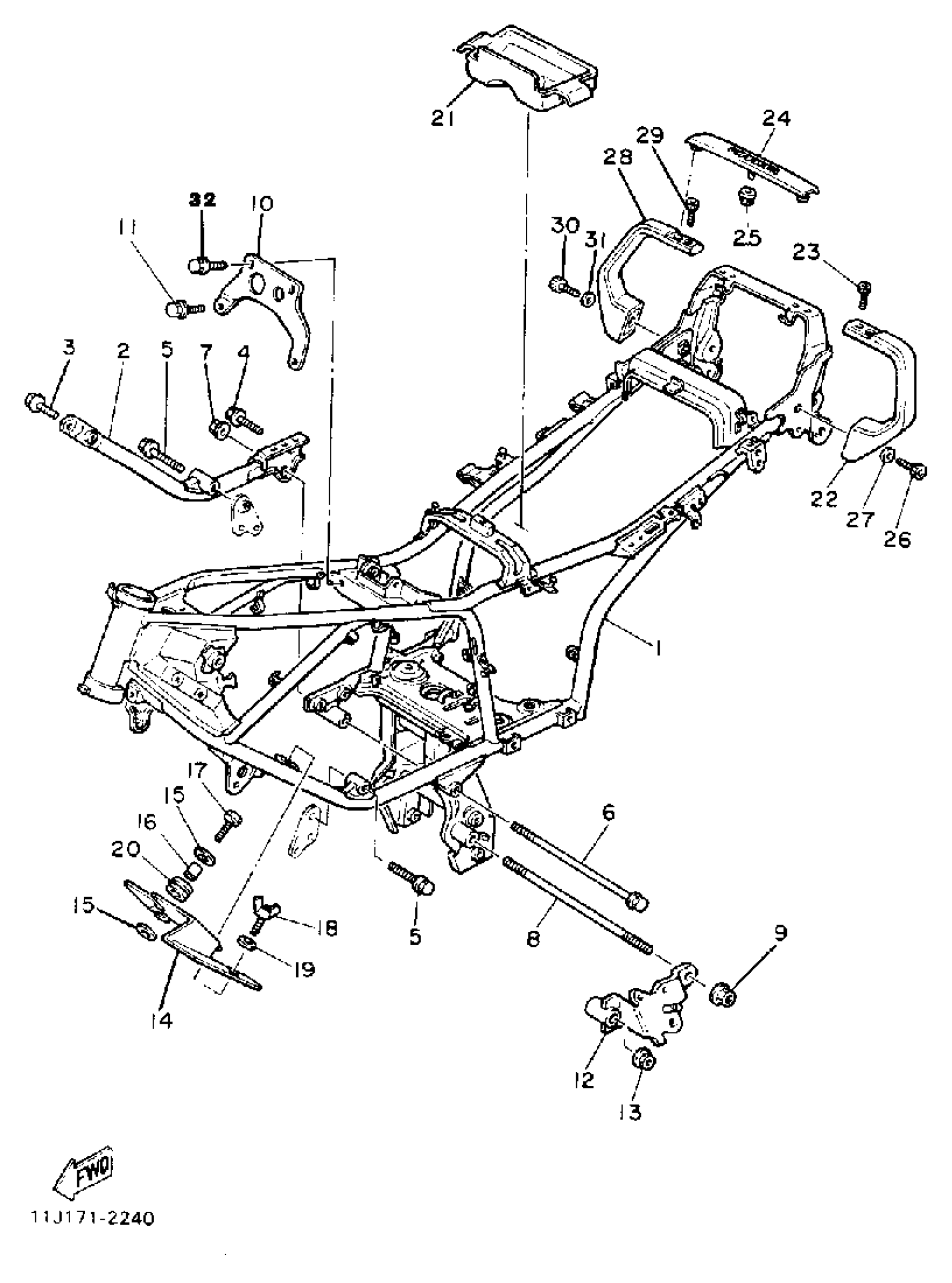

Yamaha XZ550RJ (XZ550RJ) 1982 FRAME Diagram

#

Description
Price

1

FRAME COMP.

11H-21110-00-98

Unavailable

2

DOWN TUBE COMP

11H-21140-00-98

Unavailable

3

BOLT, WASHER BASED

(90105-08212-00)

Unavailable

4

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

5

BOLT, WASHER BASED (4K0)

90105-10169-00

$11.49

6

BOLT, WASHER BASED

90105-10476-00

Unavailable

7

NUT

90179-10321-00

Unavailable

8

BOLT, STUD

(90116-12374-00)

Unavailable

9

NUT(3EF)

90179-12657-00

$5.60

10

STAY, ENGINE 2

(11H-21315-00-00)

Unavailable

11

BOLT, FLANGE(4HM)

95814-08020-00

$8.49

12

BRACKET, SIDE STAND

(11H-21458-00-00)

Unavailable

13

NUT(4KG)

90179-10658-00

$9.49

14

COVER

11H-2117F-00-00

Unavailable

15

WASHER, PLATE

(90201-083F7-00)

Unavailable

16

COLLAR(3HM)

90387-085N0-00

Unavailable

17

BOLT, HEXAGON

97017-08025-00

Unavailable

18

BOLT, wing

90122-06016-00

Unavailable

19

WASHER(6TA)

92907-06200-00

Unavailable

20

GROMMET (16R)

90480-14329-00

Unavailable

21

BOX

(11H-2177A-00-00)

Unavailable

22

STAY, rear

11H-21644-00-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

EMBLEM 7

11H-21787-00-00

Unavailable

25

GROMMET

(90480-01333-00)

Unavailable

26

BOLT, SOCKET

91317-08020-00

Unavailable

27

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

28

STAY, rear

11H-21645-00-00

Unavailable

29

BOLT,SOCKET

91317-06020-00

Unavailable

30

BOLT, SOCKET

91317-08020-00

Unavailable

31

WASHER, PLATE (33N)

90201-084G3-00

Unavailable

32

BOLT, WASHER BASED

90105-08233-00

Unavailable
