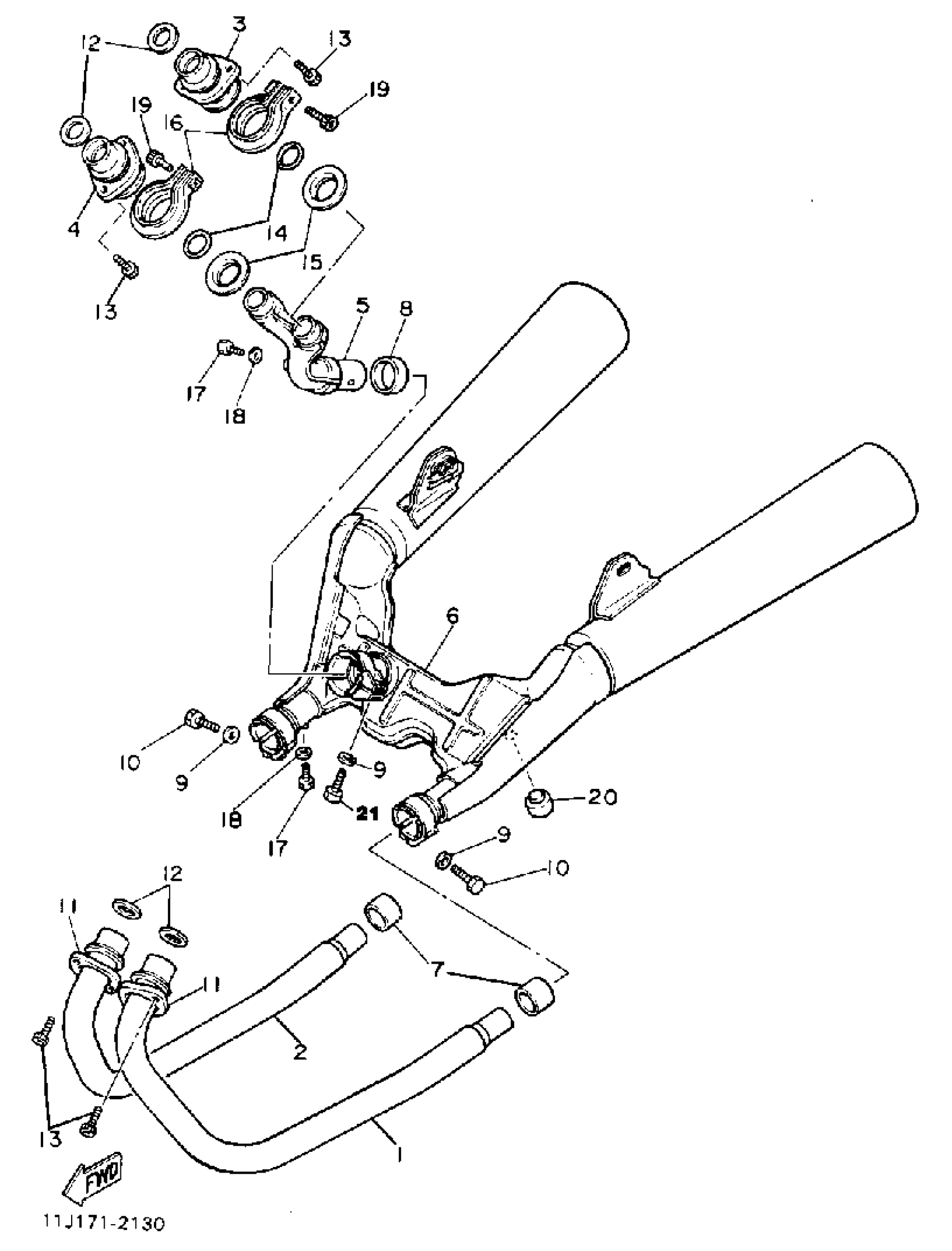

Yamaha XZ550RJ (XZ550RJ) 1982 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST L

(11H-14611-00-00)

Unavailable

2

PIPE, EXHAUST R

11H-14621-00-00

Unavailable

3

PIPE, EXHAUST 3

(11H-14631-01-00)

Unavailable

4

PIPE, EXHAUST 4

(11H-14641-00-00)

Unavailable

5

JOINT, exhaust 1

11H-14615-00-00

Unavailable

6

MUFFLER L (11H-14711-01)

11H-14711-02-00

Unavailable

7

GASKET, MUFFLER

3YF-14714-00-00

$36.99

8

GASKET, EXHAUST 4

3JJ-14653-00-00

$42.99

9

.. WASHER, PLATE

92990-08600-00

Unavailable

10

BOLT (682)

97013-08025-00

$8.49

11

NUT, RING

11H-14612-00-00

Unavailable

12

GASKET, EXHAUST PIPE

4BR-14613-00-00

$7.99

13

BOLT,SOCKET HEAD

91314-06025-00

$8.49

14

GASKET, muffler

11H-14714-01-00

Unavailable

15

RING, stopper

11H-14618-00-00

Unavailable

16

BAND, silencer

11H-14788-00-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

BOLT, hexagon socket head

90110-06051-00

Unavailable

20

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

21

BOLT

90101-08566-00

Unavailable
