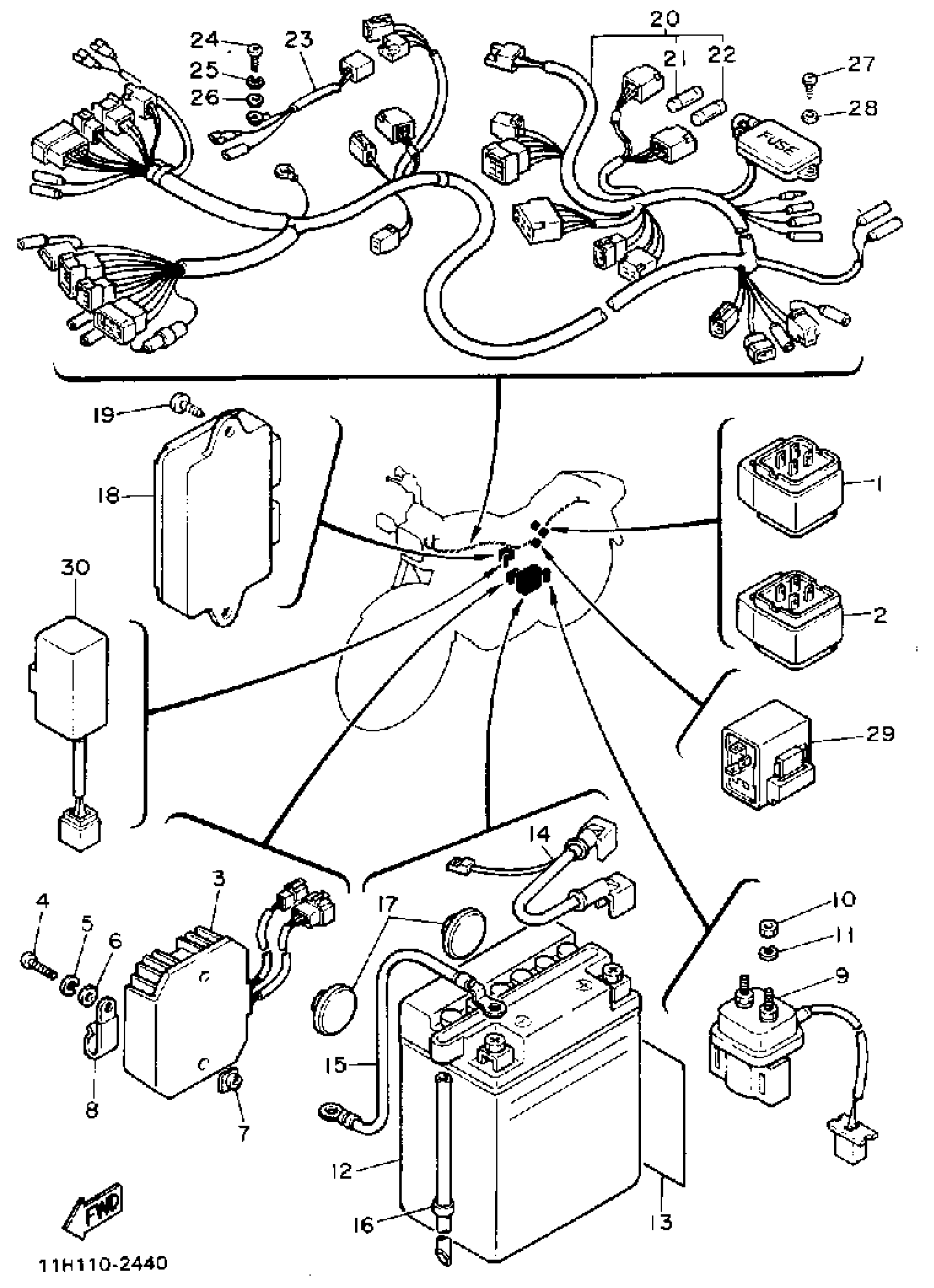

Yamaha XZ550RJ (XZ550RJ) 1982 ELECTRICAL 1 Diagram

#

Description

Price

1

RELAY ASSY

4U8-81950-03-00

Unavailable

2

RELAY ASSY

12R-81950-02-00

$70.99

3

RECTIFIER/REG ASSEMBLY

4X7-81960-A0-00

Unavailable

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

7

NUT, PLATE

4G0-21736-00-00

Unavailable

8

CLAMP

90465-08135-00

Unavailable

9

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

$115.99

10

NUT(650)

95380-06700-00

$8.49

11

WASHER, SPRING

92995-06100-00

Unavailable

12

YB14LA2 YUASA BATTERY

YB1-4LA20-00-00

Unavailable

13

LABEL, BATTERY

40A-82141-G0-00

Unavailable

14

WIRE, PLUS LEAD

1UT-82115-00-00

Unavailable

15

WIRE,MINUS LEAD

2F1-82116-00-00

Unavailable

16

HOSE

(90445-08636-00)

Unavailable

17

PAD, BATTERY

371-82121-00-00

Unavailable

18

IGNITOR UNIT ASSY

11H-82305-10-00

Unavailable

19

SCREW, TRUSS TAP.

97707-60016-00

Unavailable

20

WIRE HARNESS ASSEMBLY

11H-82590-51-00

Unavailable

21

FUSE

1A0-82151-00-00

Unavailable

22

FUSE (12V 30A)

2H7-82151-00-00

Unavailable

23

WIRE, SUB LEAD (11H-82509-00)

11H-82509-01-00

Unavailable

24

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

25

WASHER, PLAIN (646)

92990-04600-00

Unavailable

26

WASHER, PLAIN (646)

92990-04600-00

Unavailable

27

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

Unavailable

28

WASHER, PLAIN (646)

92990-05600-00

Unavailable

29

FLASHER RELAY ASSY

2NV-83350-00-00

Unavailable

30

FLASHER CANCELING UNIT

1A0-83395-03-00

Unavailable
