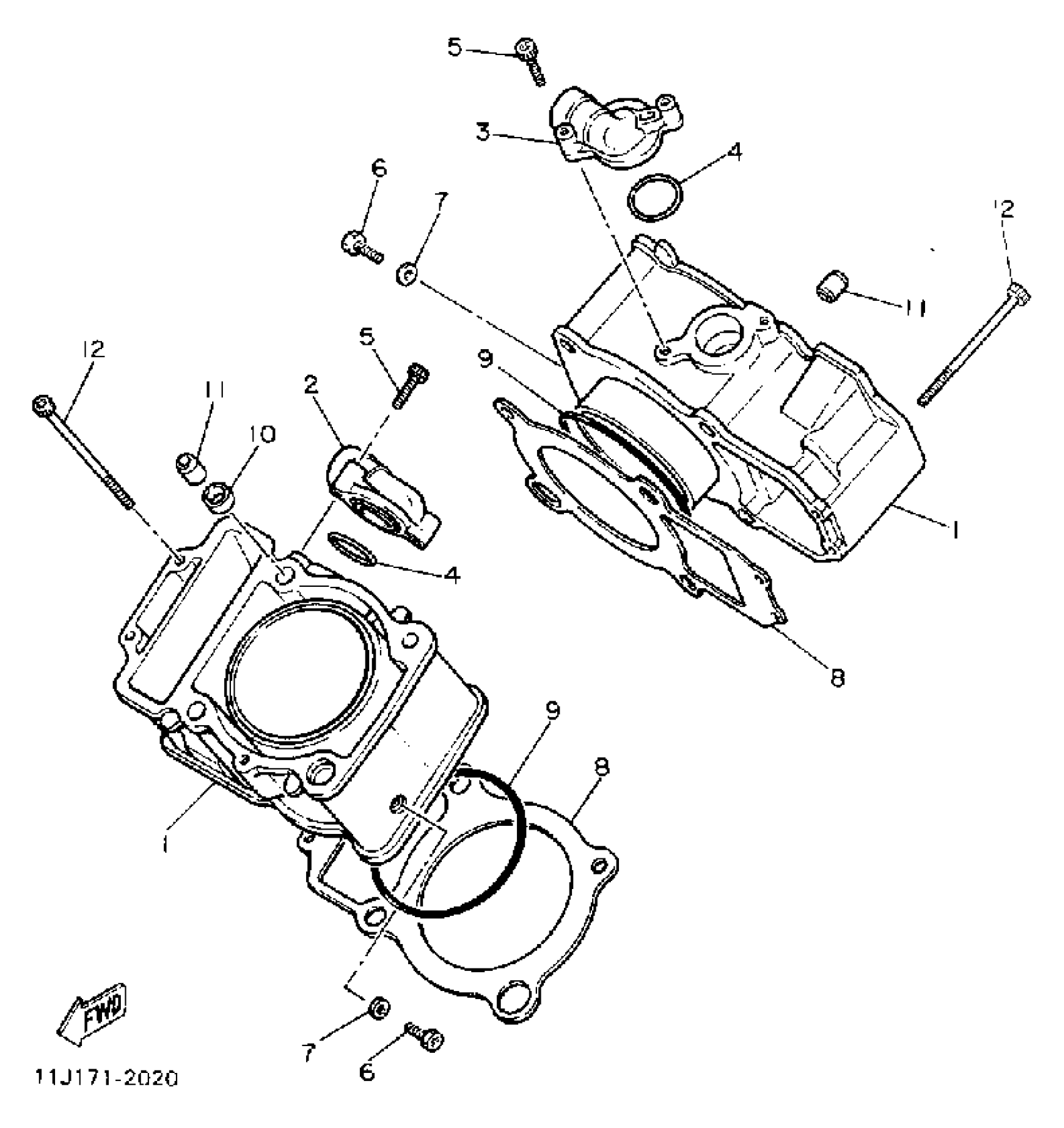

Yamaha XZ550RJ (XZ550RJ) 1982 CYLINDER Diagram

#

Description
Price

1

CYLINDER

(11H-11310-00-00)

Unavailable

2

JOINT, HOSE 3

(11H-12584-00-00)

Unavailable

3

JOINT, hose 4

11H-12594-01-00

Unavailable

4

O-RING, JOINT

93210-25527-00

Unavailable

5

BOLT, SOCKET

91314-06030-00

$5.75

6

SCREW

90153-06029-00

$7.94

7

GASKET 256113960000

90430-06014-00

Unavailable

8

GASKET, CYLINDER

11H-11351-10-00

Unavailable

9

O-RING (11H)

93210-86509-00

$11.12

10

GASKET (1L9)

90430-14131-00

$4.96

11

PIN, DOWEL

99530-14016-00

$2.98

12

BOLT, SOCKET

91317-06110-00

$5.39
