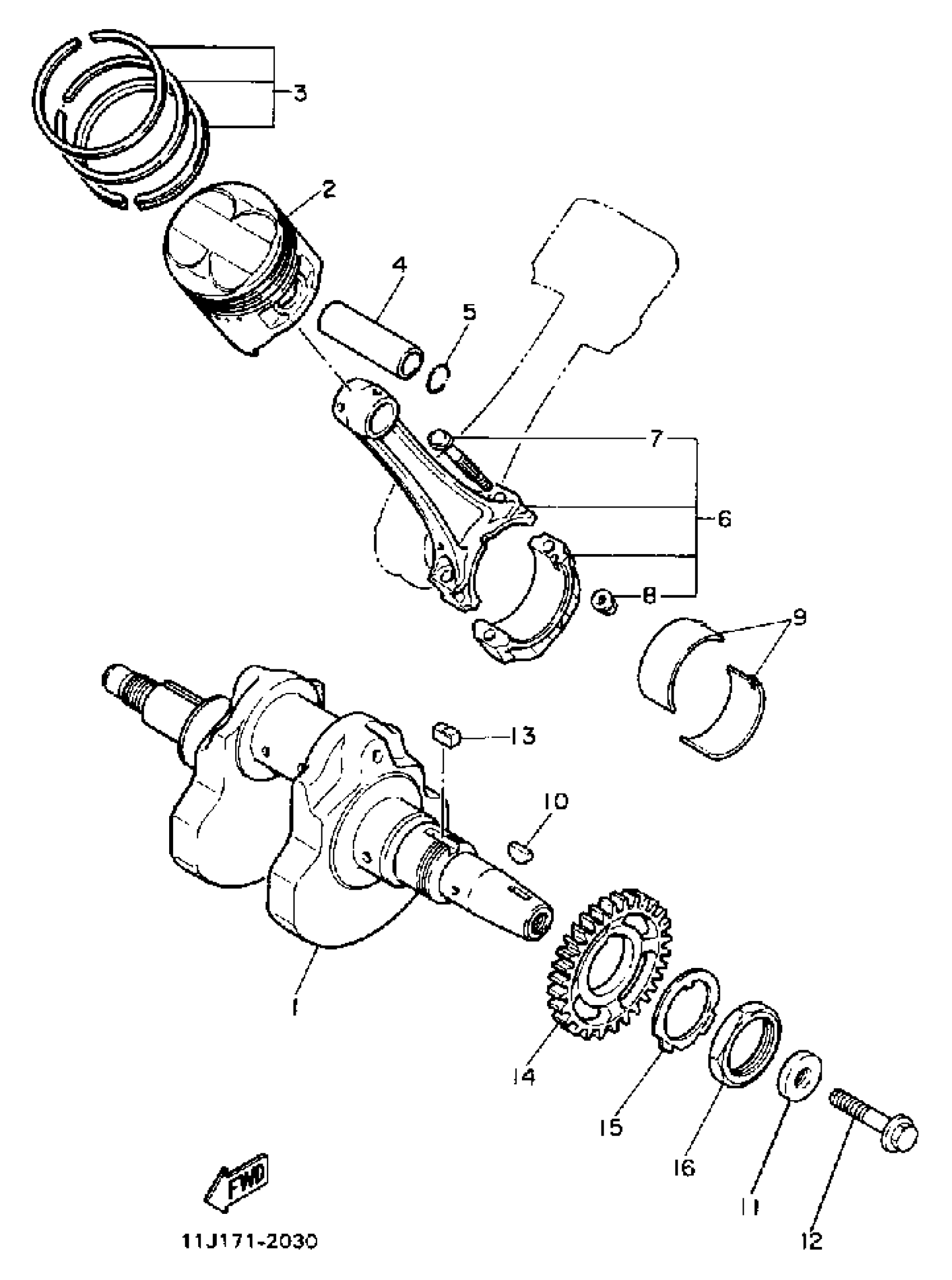

Yamaha XZ550RJ (XZ550RJ) 1982 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

11H-11411-00-00

Unavailable

2

PISTON STD

(11H-11631-00-A0)

Unavailable

2

PISTON (2nd O/S 0.50MM)

11H-11636-00-00

Unavailable

2

PISTON (4th O/S 1.00MM)

11H-11638-00-00

Unavailable

3

PISTON RING SET (STD)

28V-11610-00-00

Unavailable

3

PISTON RING SET (2nd O/S)

28V-11610-20-00

Unavailable

3

PISTON RING SET (4th O/S)

28V-11610-40-00

Unavailable

4

PIN, PISTON

583-11633-00-00

Unavailable

5

CIRCLIP 341116340000

93450-22027-00

$7.49

6

CONNECTING ROD ASSEMBLY

11H-Y1165-00-00

Unavailable

7

BOLT, CON ROD

(11H-11654-01-00)

Unavailable

8

NUT (11H)

90179-09379-00

$8.49

9

PLANE BEARING, connecting rod

11H-11656-00-00

Unavailable

9

PLANE BEARING, connecting rod

11H-11656-10-00

Unavailable

9

PLANE BEARING, connecting rod

11H-11656-20-00

Unavailable

9

PLANE BEARING, connecting rod

11H-11656-30-00

Unavailable

9

PLANE BEARING, connecting rod

11H-11656-40-00

Unavailable

10

KEY, woodruff

90280-07034-00

Unavailable

11

WASHER, PLATE

(90201-107E9-00)

Unavailable

12

BOLT, WASHER BASED (4H7)

90105-10152-00

Unavailable

13

KEY, straight

90282-07051-00

Unavailable

14

GEAR, RING (45T)

(11H-11535-00-00)

Unavailable

15

WASHER, lock

90215-40193-00

Unavailable

16

NUT

90170-40293-00

Unavailable
