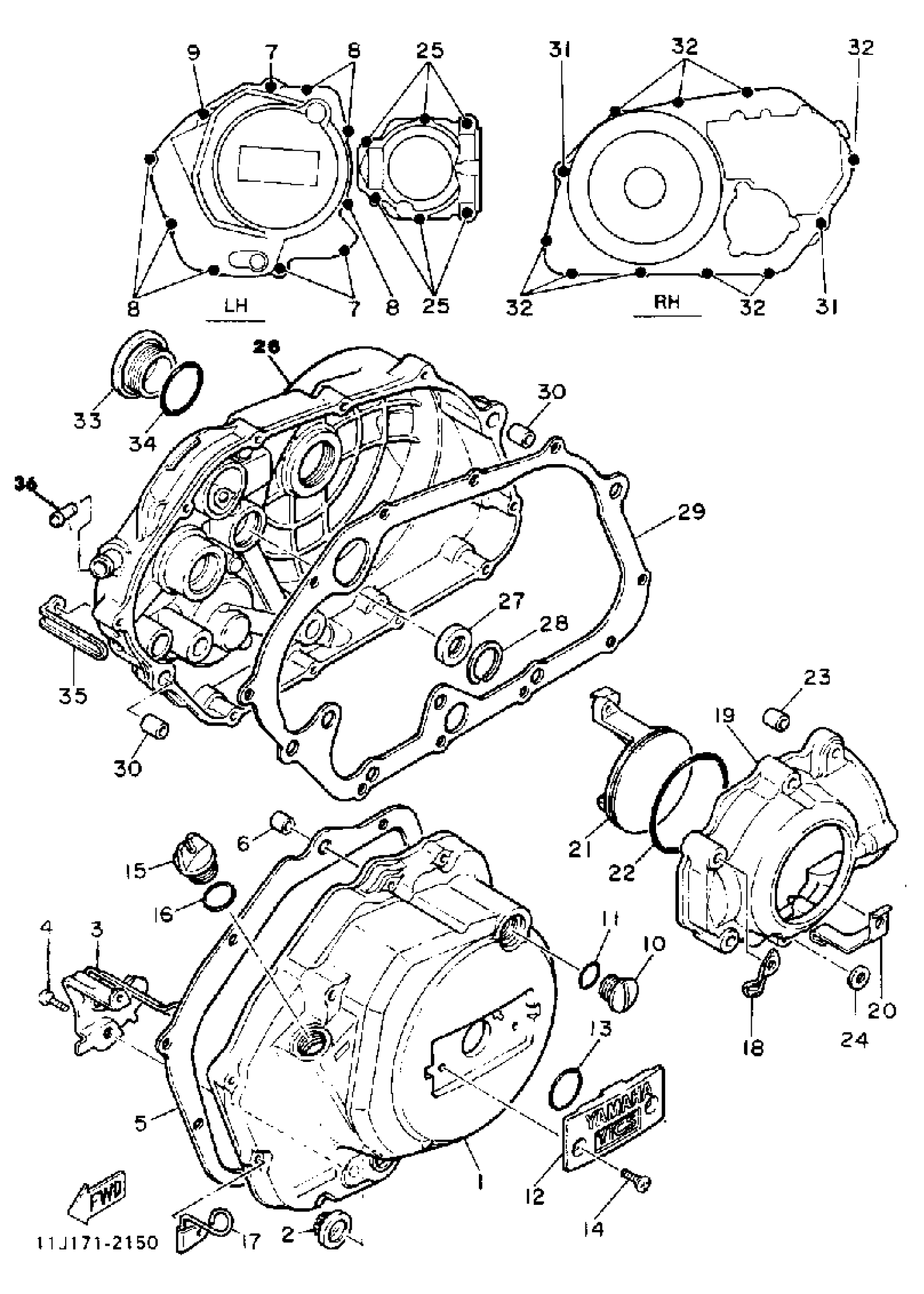

Yamaha XZ550RJ (XZ550RJ) 1982 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

11H-15411-01-00

Unavailable

1

PLUG, OIL LEVEL

BAT-15362-00-00

$20.99

1

O-RING(1KT)

93210-27778-00

$8.49

1

COVER, CRANKCASE L (11H-15411-00)

99999-01571-00

Unavailable

2

GAUGE, LEVEL

3Y1-15361-00-00

$30.99

3

CLAMP

90465-10182-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

GASKET, CRANKCASE COVER 1

11H-15451-11-00

Unavailable

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, SOCKET

91314-06035-00

$8.49

8

BOLT,SOCKET HEAD

91314-06025-00

$8.49

9

BOLT,SOCKET

91314-06055-00

$8.49

10

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

11

O-RING (2H9)

93210-14369-00

$7.49

12

COVER, cap 2

11H-15427-00-00

Unavailable

13

O-RING(2HG)

93210-270A8-00

Unavailable

14

SCREW, FLAT HEAD

98780-06016-00

Unavailable

15

PLUG, OIL

3Y1-15363-10-00

Unavailable

16

O-RING (646)

93210-19123-00

Unavailable

17

CLAMP

90465-14181-00

Unavailable

18

CLAMP

(90465-08191-00)

Unavailable

19

COVER, GENERATOR

(11H-15415-00-00)

Unavailable

20

CLAMP 001

(90465-16211-00)

Unavailable

20

CLAMP 001

(90465-16211-00)

Unavailable

21

COVER, OIL PUMP R

(11H-15426-00-00)

Unavailable

22

O-RING (5G2)

93210-71462-00

Unavailable

23

PIN, DOWEL(3VD)

99530-10114-00

$2.55

24

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

25

BOLT,SOCKET

91314-08040-00

Unavailable

26

HOUSING, thermostat

11H-12417-02-00

Unavailable

26

COVER, crankcase 2

11H-15421-02-00

Unavailable

26

COVER, CRANKCASE 2 (11H-15421-01)

99999-01264-00

Unavailable

27

OIL SEAL (14X25X5.5-583)

93101-14089-00

Unavailable

28

CIRCLIP

99009-25500-00

Unavailable

29

GASKET, CRCS CVR 2

11H-15461-11-00

Unavailable

30

PIN, DOWEL(3BM)

99530-10120-00

Unavailable

31

BOLT, SOCKET

91314-06040-00

Unavailable

32

BOLT,SOCKET HEAD

91314-06025-00

$8.49

33

PLUG, STRAIGHT SCREW (11H)

90340-36076-00

Unavailable

34

O-RING

93210-35804-00

Unavailable

35

CLAMP

90465-08190-00

Unavailable

36

JOINT 1

11H-12469-00-00

Unavailable
