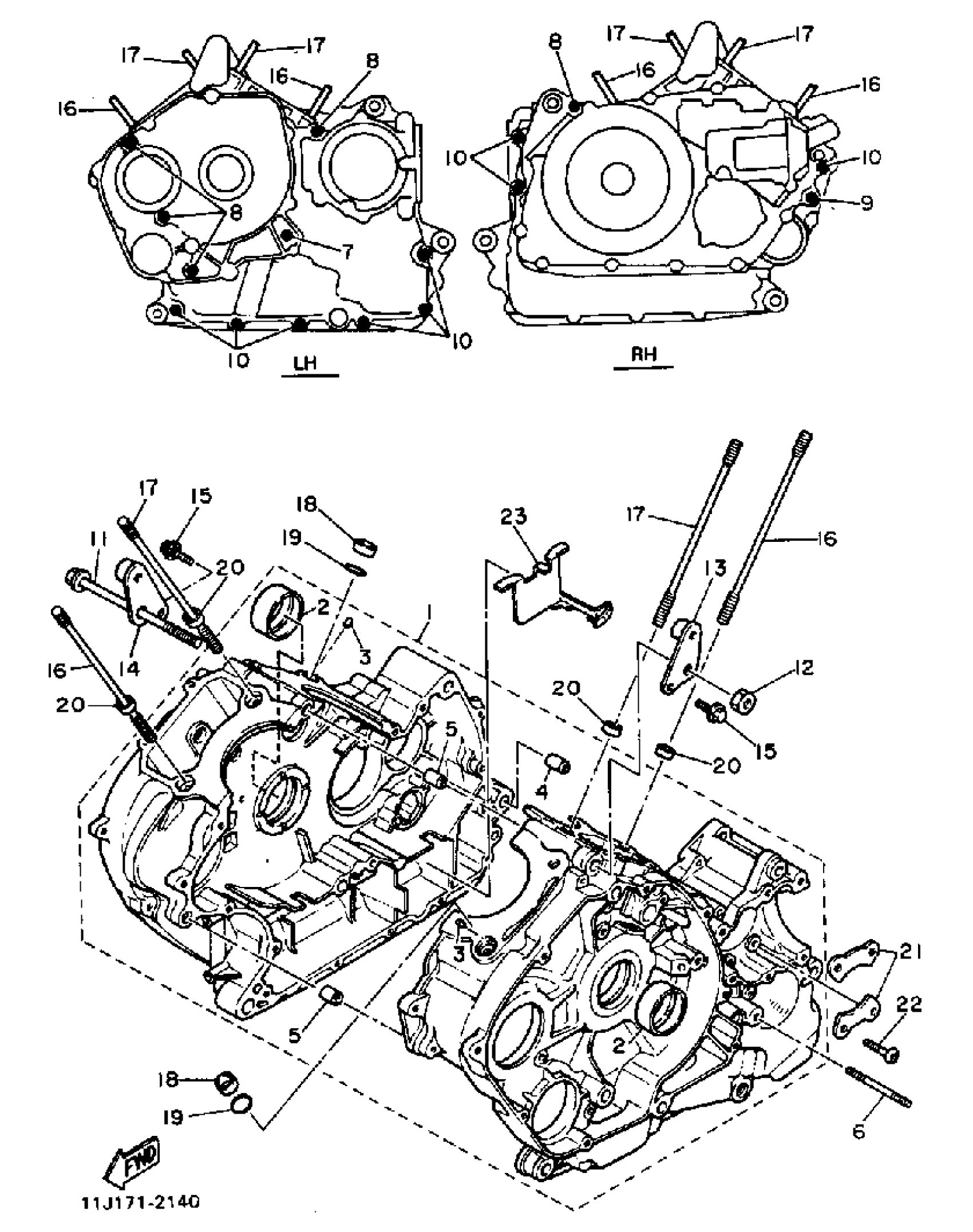

Yamaha XZ550RJ (XZ550RJ) 1982 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY 001

(11H-15100-02-00)

Unavailable

1

CRANKCASE ASSEMBLY 001

(11H-15100-02-00)

Unavailable

2

PLANE BEARING, CRANKSHAFT 1

22U-11416-80-00

$45.99

2

PLANE BEARING, CRANKSHAFT 1

22U-11416-90-00

Unavailable

3

NOZZLE 1

11H-15138-00-00

Unavailable

4

PIN, DOWEL

99530-14016-00

$3.80

5

PIN, DOWEL(MH0)

91815-16017-00

$8.49

6

BOLT, STUD

(95611-10650-00)

Unavailable

7

BOLT, SOCKET

91314-06080-00

$3.88

8

BOLT,SOCKET HEAD

91311-06100-00

Unavailable

9

BOLT, SOCKET

91314-06045-00

$8.49

10

BOLT, SOCKET

91314-06030-00

$8.49

11

BOLT

90105-10042-00

$14.99

12

NUT(4KG)

90179-10658-00

$9.49

13

PLATE

(11H-15113-00-00)

Unavailable

14

PLATE, BUFFLE 1

(11H-15123-00-00)

Unavailable

15

BOLT, FLANGE

95817-06020-00

Unavailable

16

BOLT, STUD (583)

90116-10225-00

Unavailable

17

BOLT, STUD

(90116-10389-00)

Unavailable

18

COLLAR (1L9)

90387-16547-00

Unavailable

19

O-RING (1L9)

93210-18322-00

Unavailable

20

PIN, DOWEL

99530-14016-00

$3.80

21

PLATE, BEARING COVER

11H-15383-02-00

Unavailable

22

SCREW

90149-08013-00

Unavailable

23

COVER, OIL PUMP

(11H-15412-00-00)

Unavailable
