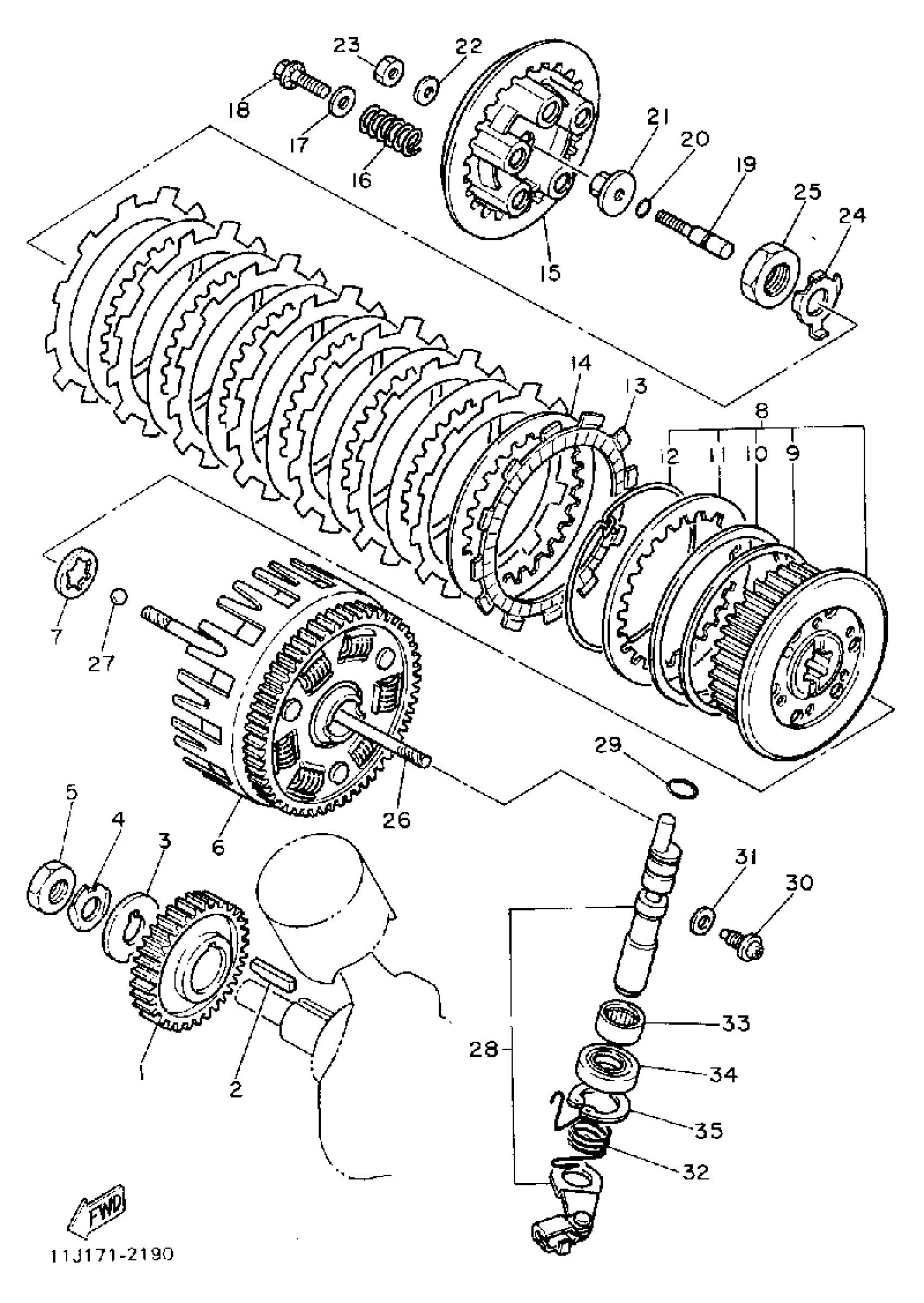

Yamaha XZ550RJ (XZ550RJ) 1982 CLUTCH Diagram
#
1
GEAR, PRI DRIVE
(11H-16111-00-00)
Unavailable
2
KEY, straight
90282-07052-00
Unavailable
6
PRI DRVN GEAR
(11H-16150-00-00)
Unavailable
7
. PLATE, THRUST 1
3Y1-16154-00-00
Unavailable
8
. CLUTCH BOSS ASSY
4H7-16370-00-00
Unavailable
9
PLATE, SEAT
1J7-16384-00-00
Unavailable
10
.. SPRING, CLUTCH BOSS
1J7-16383-01-00
Unavailable
11
PLATE, CLUTCH 1
168-16324-10-00
Unavailable
12
RING, CLUTCH BOSS
1J7-16385-00-00
Unavailable
15
PLATE, PRESSURE 1
(11H-16351-00-00)
Unavailable
16
SPRING (583 CLUTCH)
90501-23391-00
Unavailable
17
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
18
BOLT, FLANGE
95817-06020-00
Unavailable
19
ROD, PUSH 1
3Y1-16356-01-00
Unavailable
20
UNAVAILABLE IN PRICE BOOK (93210-06422)
93210-06622-00
Unavailable
21
PLATE, PUSH
1W1-16358-01-00
Unavailable
22
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
23
NUT, HEXAGON
95380-06600-00
Unavailable
24
WASHER, LOCK (34L)
90215-20231-00
Unavailable
25
NUT (34L)
90170-20327-00
Unavailable
26
ROD, PUSH 2
(11H-16357-00-00)
Unavailable
27
BALL (498)
93511-32027-00
Unavailable
28
PUSH LEVER ASS''Y
11H-16380-00-00
Unavailable
29
. O-RING
93210-14515-00
Unavailable
30
SCREW 425163430000
90149-08067-00
Unavailable
31
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
32
SPRING, TORSION
(90508-16520-00)
Unavailable
33
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
Unavailable
34
OIL SEAL (22U)
93102-18278-00
Unavailable
35
CIRCLIP(46T)
99009-32500-00
Unavailable
