AIR FILTER

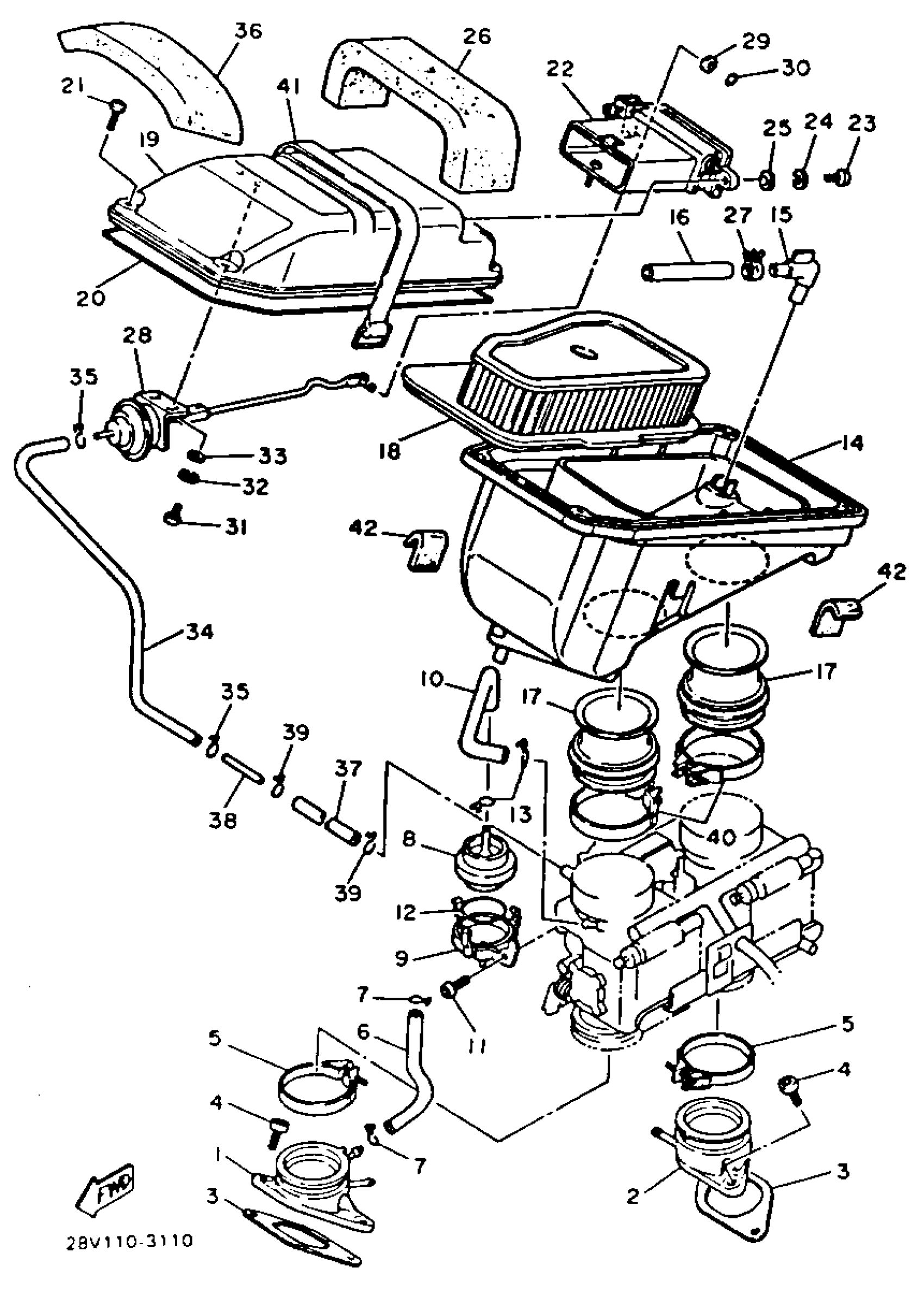

Yamaha XZ550RJ (XZ550RJ) 1982 AIR FILTER Diagram
#
1
JOINT, CARBURETOR 1
11H-13586-02-00
Unavailable
2
JOINT, CARBURETOR 2
11H-13596-02-00
Unavailable
3
GASKET, MANIFOLD
11H-13556-11-00
Unavailable
4
BOLT,SOCKET
91317-06020-00
Unavailable
5
HOSE CLAMP ASSY
90450-53005-00
Unavailable
6
HOSE
11H-13926-01-00
Unavailable
8
ELEMENT ASSEMBLY
11H-14450-00-00
Unavailable
9
STAY 1
28V-14498-00-00
Unavailable
10
HOSE
90445-07723-00
Unavailable
12
O-RING (137)
93210-26033-00
Unavailable
14
CASE, AIR CLEANER 1
(11H-14411-00-00)
Unavailable
15
PIPE
(11H-14419-00-00)
Unavailable
16
HOSE
90445-13650-00
Unavailable
17
JOINT, AIR CLEANER 1
11H-14453-00-00
Unavailable
18
ELEMENT ASSY, AIR CLEANER
28V-14450-00-00
Unavailable
19
CAP, CLEANER CASE 1
11H-W1443-00-00
Unavailable
20
SEAL
1VJ-14462-00-00
Unavailable
21
SCREW, TRUSS TAP.
97707-60016-00
Unavailable
22
DUCT ASSEMBLY
11H-14430-00-00
Unavailable
23
SCREW, TAPPING(6U1)
97780-50610-00
Unavailable
24
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
25
WASHER, PLAIN (646)
92990-05600-00
Unavailable
26
DAMPER 2
(28V-14426-00-00)
Unavailable
27
CLIP
90468-08104-00
Unavailable
28
DAMPER 2
(11H-14426-00-00)
Unavailable
28
DAMPER
(28V-14409-00-00)
Unavailable
29
WASHER, PLATE 8077743700
90201-03313-00
Unavailable
30
WASHER
(93430-03032-00)
Unavailable
31
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
32
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
33
WASHER, PLAIN (646)
92990-05600-00
Unavailable
34
HOSE
(90445-07711-00)
Unavailable
36
DAMPER 1
(28V-14425-00-00)
Unavailable
37
HOSE
(90445-07747-00)
Unavailable
38
JOINT
28V-13595-00-00)
Unavailable
40
CLAMP, HOSE
90460-64142-00
Unavailable
41
BAND
11H-14455-00-00
Unavailable
42
DAMPER 1
(11H-14425-00-00)
Unavailable
50
PLUG, BLIND
16G-13569-00-00
Unavailable
51
CLIP (3G0)
90467-10039-00
Unavailable
