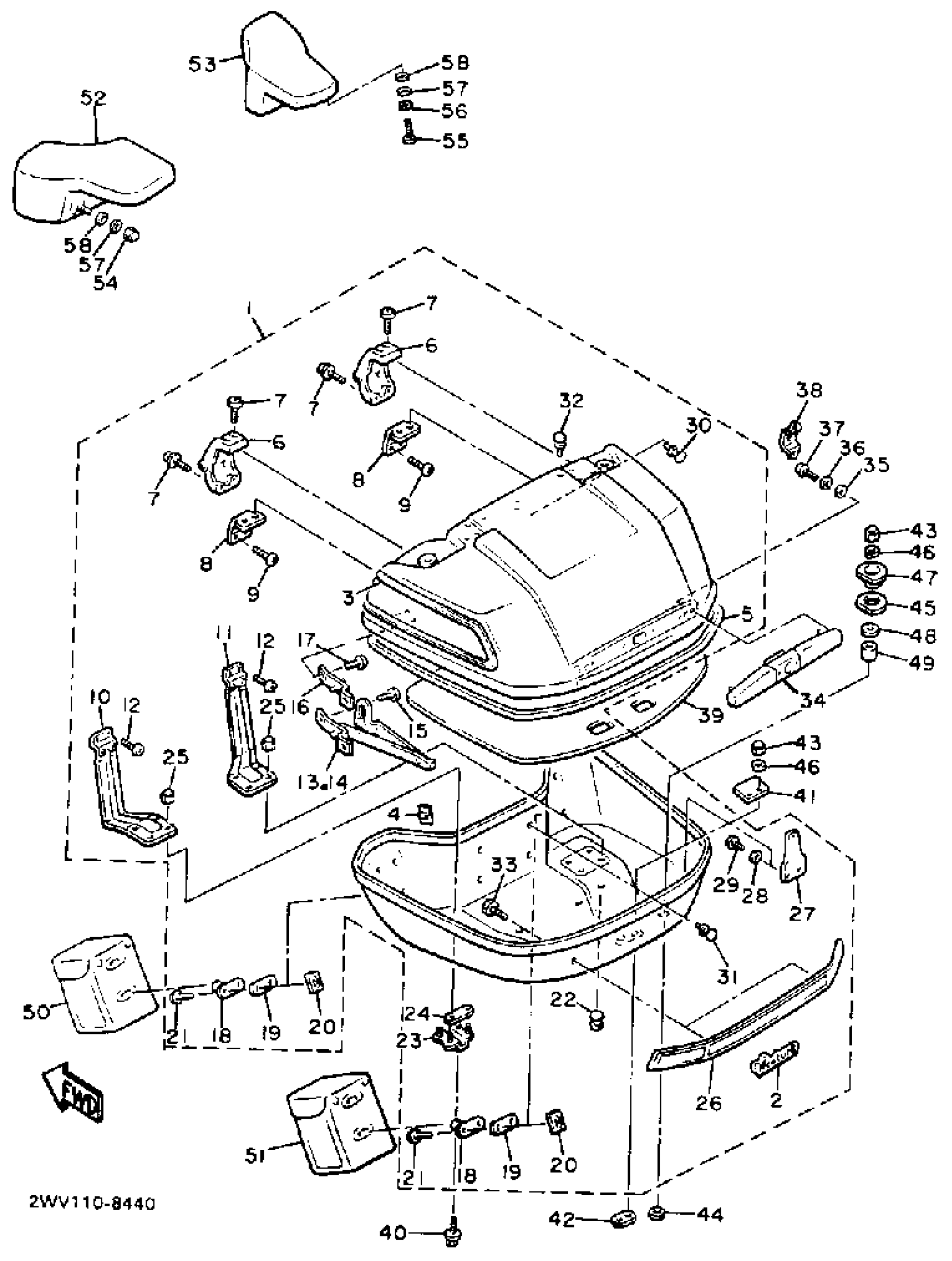

Yamaha XVZ13UC (VENTURE CA) 1988 TRAVELBAG Diagram
#
1
TRAVEL TRUNK
2WV-Y284E-00-5X
Unavailable
2
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
3
GRAPHIC SET, TRUNK
(2WV-2840H-00-00)
Unavailable
4
PAD, BATTERY
(5G7-82121-00-00)
Unavailable
5
SEAL 5
54K-2847F-00-00
Unavailable
6
. HINGE 2
54K-2845E-00-00
Unavailable
7
. SCREW, WITH WASHER
90159-05132-00
Unavailable
8
. REINFORCEMENT 3
54K-2845H-00-00
Unavailable
9
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
10
. BRACKET 5
54K-28486-00-00
Unavailable
11
. BRACKET 6
54K-28496-00-00
Unavailable
12
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
13
STOPPER, open
1NL-2845L-00-00
Unavailable
14
STOPPER, open
1NL-2845M-00-00
Unavailable
15
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
16
BRACKET, trunk stopper
1NL-2849R-00-00
Unavailable
17
SCREW, tapping (97701-30106)
97701-30606-00
Unavailable
18
. HOOK
54K-2844L-00-00
Unavailable
19
. SEAL 7
54K-2849F-00-00
Unavailable
20
. NUT, special
54K-2849M-00-00
Unavailable
21
SCREW, TAPPING
97707-40710-00
Unavailable
22
GROMMET (397)
90480-10068-00
Unavailable
23
BRACKET 3
1NL-28476-00-00
Unavailable
24
PLATE, rubber 3
1NL-28485-00-00
Unavailable
25
NUT, CAP
95307-05800-00
Unavailable
26
. REAR REFLECTOR ASS''Y
54K-85140-00-00
Unavailable
27
. HOOK
54K-28488-00-00
Unavailable
28
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
29
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
30
PLUG(1NL)
90338-07180-00
Unavailable
31
PLUG(1NL)
90338-07180-00
Unavailable
32
. DAMPER, grip
26H-2843A-00-00
Unavailable
33
. SCREW, tapping
97706-40008-00
Unavailable
34
GRIP, SADDLEBAG
54K-28408-00-00
Unavailable
35
WASHER, PLATE
90202-08146-00
Unavailable
36
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
37
GASKET, EXHAUST
98507-05008-00
Unavailable
38
COVER LOCK ASS''Y 2
54K-28493-00-00
Unavailable
39
SEAT
54K-2848H-00-00
Unavailable
40
BOLT, FLANGE(2UJ)
95024-06010-00
Unavailable
41
. PLATE 3
54K-28497-00-00
Unavailable
42
. PLATE, rubber 9
54K-2849J-00-00
Unavailable
43
NUT(4MY)
95307-06800-00
Unavailable
44
WASHER, PLATE
90202-06058-00
Unavailable
45
PLATE, rubber 10
1NL-2845K-00-00
Unavailable
46
WASHER, SPRING
92907-06100-00
Unavailable
47
REINFORCEMENT 4
1NL-2843K-00-00
Unavailable
48
COLLAR (3H5)
90387-060A3-00
Unavailable
49
WASHER, PLATE (5E3)
90202-10120-00
Unavailable
50
POUCH COMP. 1
1NL-28401-00-00
Unavailable
51
POUCH, 2
3JJ-28402-00-00
Unavailable
52
REST, ARM L/H
1NL-2840R-00-00
Unavailable
53
POUCH, 2
3JJ-2840T-00-00
Unavailable
54
NUT, CAP
95307-05800-00
Unavailable
55
SCREW, PAN HEAD
90157-05M19-00
Unavailable
56
WASHER(3SX)
92907-05100-00
Unavailable
57
WASHER, PLATE (26H)
90202-05147-00
Unavailable
58
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
