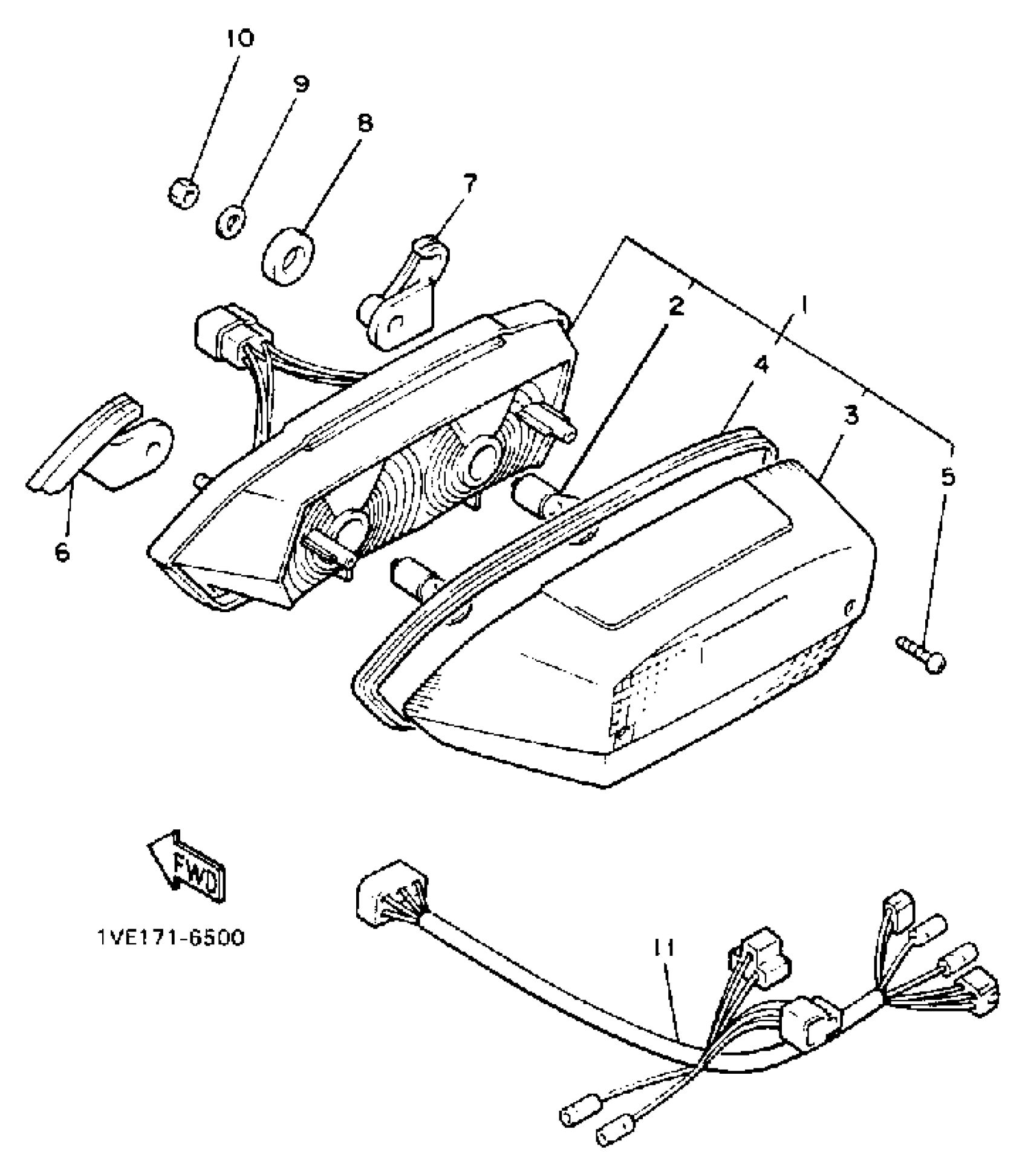

Yamaha XVZ13UC (VENTURE CA) 1988 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASS''Y

26H-84710-60-00

Unavailable

2

BULB, TAIL LAMP (12V 32/3CP)

256-84714-61-00

$9.34

3

. LENS, taillight

26H-84721-60-00

Unavailable

4

SEAL

3TJ-14457-00-00

Unavailable

5

SCREW, LENS FITTING

3Y1-84524-00-00

$2.06

6

DAMPER, tail 1

26H-84736-00-00

Unavailable

7

DAMPER, tail 2

26H-84737-00-00

Unavailable

8

DAMPER

26H-84553-00-00

Unavailable

9

WASHER PLATE 248217570000

90201-06074-00

$5.86

10

NUT, HEXAGON

95380-06600-00

$4.11

11

CORD, TAILLIGHT

(1VA-84717-00-00)

Unavailable
