1988 Yamaha Venture CA (XVZ13UC) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1988 Yamaha Venture CA (XVZ13UC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

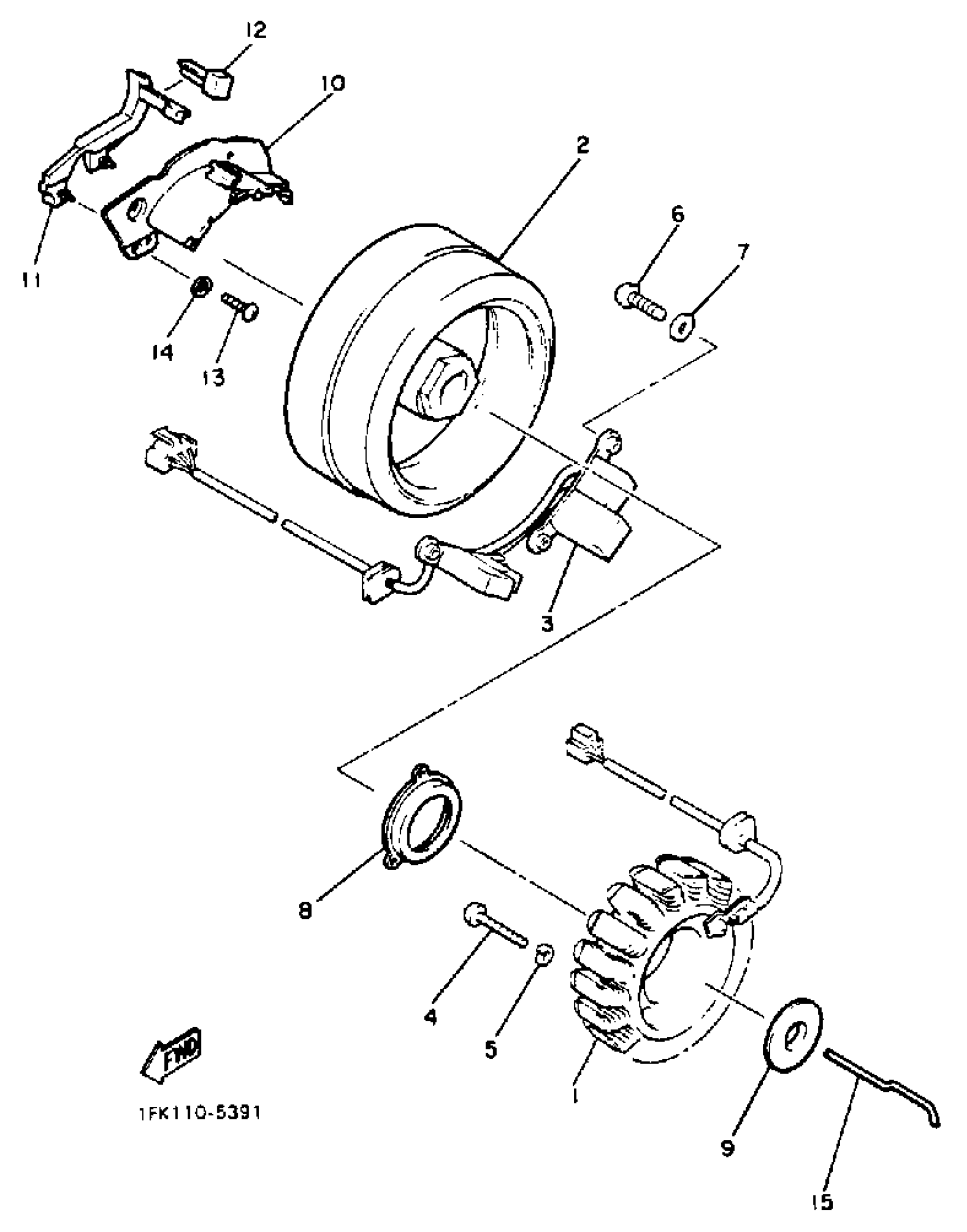

1988 Yamaha Venture CA (XVZ13UC) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASY

26H-81410-12-00

1
Out of stock

2

ROTOR ASSEMBLY

26H-81450-10-00

1
Out of stock

3

PICK-UP ASSEMBLY

26H-81670-10-00

1
Out of stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, PLATE

90201-06045-00

1

$6.18

In stock

8

PLATE, STAT0R

59J-15113-00-00

1
Out of stock

9

PLATE, C0VER

59J-15191-00-00

1
Out of stock

10

SEPARATOR, OIL

(1FK-15358-00-00)

1
Out of stock

11

SEAL, CRANKCASE

1FK-15379-00-00

1
Out of stock

12

SEAL, PROTECTOR

1FK-15494-00-00

—
Out of stock

13

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SHAFT 1

59J-11455-00-00

1
Out of stock
