1988 Yamaha Venture CA (XVZ13UC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1988 Yamaha Venture CA (XVZ13UC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

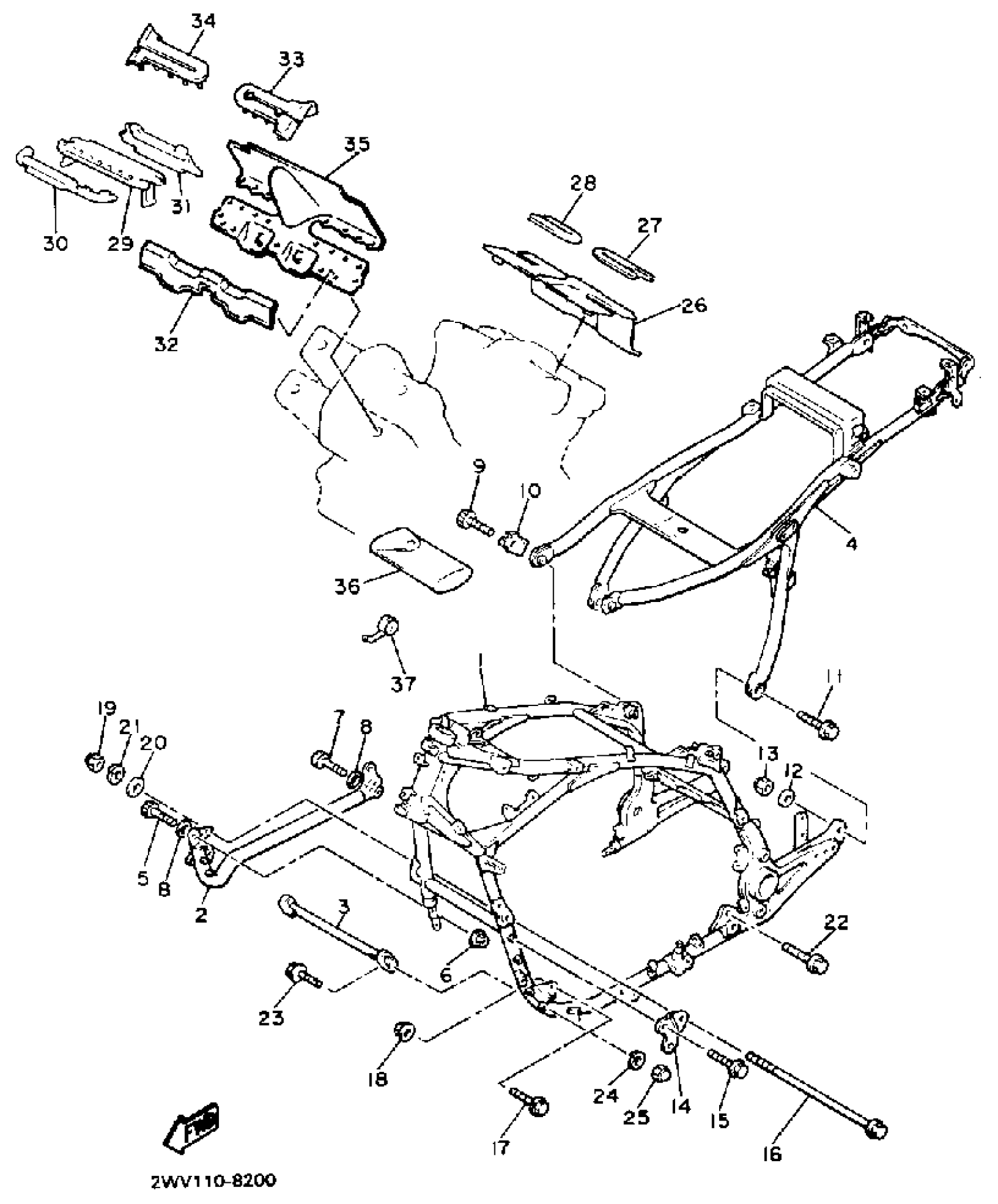

1988 Yamaha Venture CA (XVZ13UC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

2WR-21110-00-33

1
Out of stock

2

DOWN TUBE COMP

2WR-21140-00-33

1
Out of stock

3

CROSS BAR COMPLETE

26H-2141V-00-00

1
Out of stock

4

REAR FRAME COMP

1NL-21190-00-33

1
Out of stock

5

BOLT,SOCKET

91317-10040-00

1

$3.91

In stock

6

NUT

90179-10321-00

1
Out of stock

7

BOLT, SOCKET

91317-10030-00

1

$6.85

In stock

8

WASHER (7A9)

90201-100F7-00

1

$6.38

In stock

9

BOLT (583)

90101-10303-00

1

$6.25

In stock

10

WASHER, LOCK

90215-10192-00

1
Out of stock

11

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

12

WASHER, PLATE (2J2)

90201-10696-00

1
Out of stock

13

NUT, CROWN(3BM)

90176-10073-00

1

$6.85

In stock

14

STAY, ENGINE 2

(26H-21315-00-00)

1
Out of stock

15

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

16

BOLT, washer based

90105-10254-00

1
Out of stock

17

BOLT, WASHER BASED(4EB)

90105-10788-00

—
Out of stock

18

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

19

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

20

—

$3.00

In stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

22

BOLT, WASHER BASED (26H)

90105-12252-00

—
Out of stock

23

BOLT, FLANGE

95817-08060-00

—

$3.28

In stock

24

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

25

NUT, crown

90176-08034-00

1
Out of stock

26

COVER 2

26H-2117M-00-00

1
Out of stock

27

COVER 3

26H-2117N-00-00

1
Out of stock

28

COVER 4

26H-2117R-00-00

1
Out of stock

29

COVER 7

26H-2117V-00-00

1
Out of stock

30

COVER 5

26H-2117T-00-00

1
Out of stock

31

COVER 6

26H-2117U-00-00

1
Out of stock

32

COVER 8

26H-2117W-00-00

1
Out of stock

33

COVER 9

26H-2117X-00-00

1
Out of stock

34

COVER 10

26H-2117Y-00-00

1
Out of stock

35

COVER

26H-2117F-00-00

1
Out of stock

36

TOOL KIT

26H-W2810-00-00

1
Out of stock

37

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
