1988 Yamaha Venture CA (XVZ13UC) Fairing Diagram

← All diagrams

Find the part on the Fairing diagram for your 1988 Yamaha Venture CA (XVZ13UC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

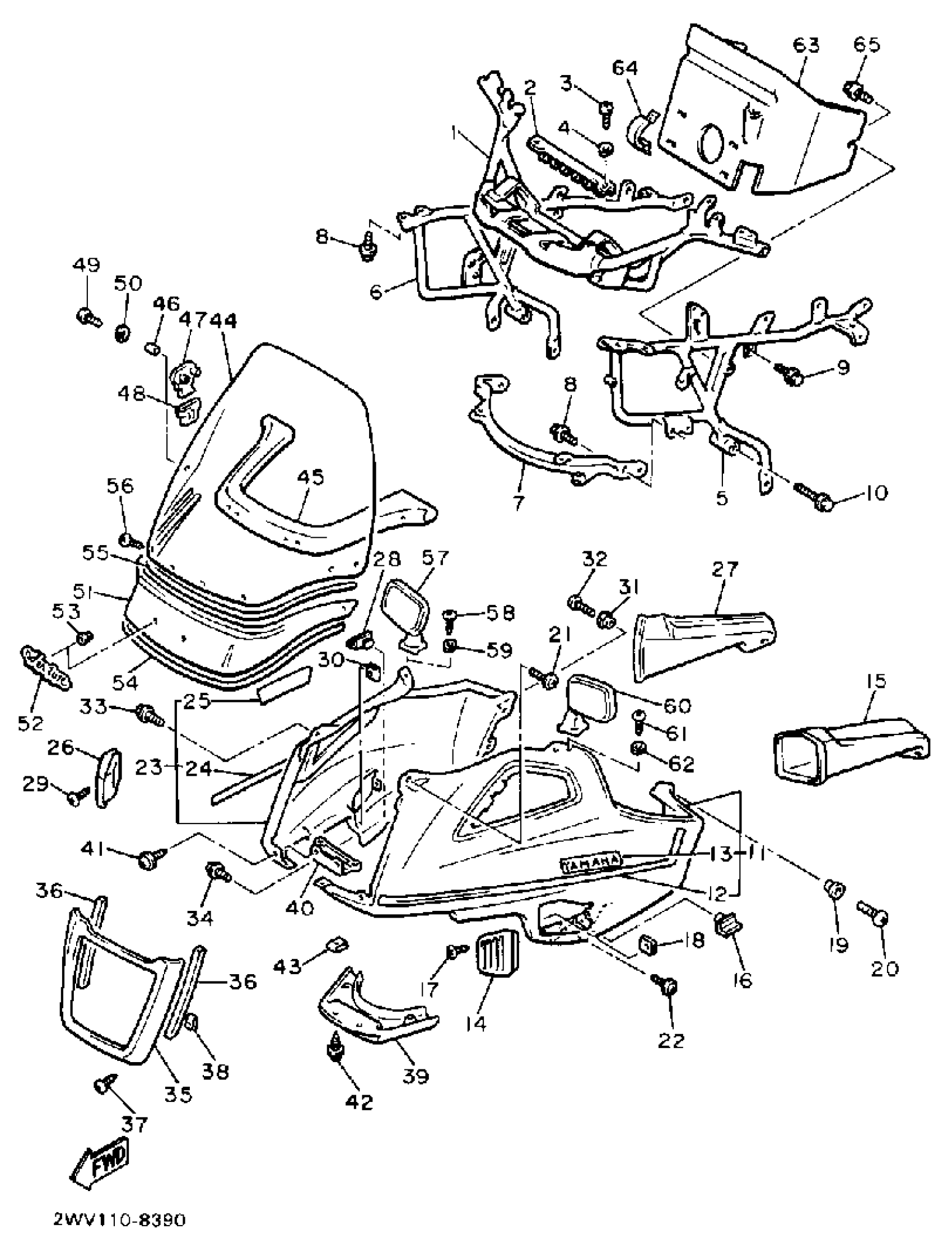

1988 Yamaha Venture CA (XVZ13UC) Fairing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY 1

1NL-28356-00-00

1
Out of stock

2

BRACKET, relay

41R-2134E-01-00

1
Out of stock

3

SCREW, PAN

98517-06012-00

1

$3.14

In stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

STAY, leg shield

1NL-28322-00-00

1
Out of stock

6

STAY, leg shield

1NL-28332-00-00

1
Out of stock

7

STAY 2

26H-28359-01-00

1
Out of stock

8

BOLT, FLANGE

95812-06010-00

1

$2.75

In stock

9

BOLT, FLANGE

95817-08012-00

1

$3.98

In stock

10

BOLT, FLANGE

95817-08050-00

1

$3.15

In stock

11

BODY, FRONT UPPER 1

2WV-Y283G-00-6Y

1
Out of stock

12

. GRAPHIC, COWLING 1

2WV-28391-00-00

1
Out of stock

13

EMBLEM

26H-28328-00-00

1
Out of stock

14

GRILL, air intake 1

26H-2837N-01-33

1
Out of stock

15

DUCT 3

26H-2838T-01-00

1
Out of stock

16

DAMPER

26H-28372-00-00

1
Out of stock

17

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

18

NUT, SPRING (26H)

90183-04027-00

—

$1.91

In stock

19

COLLAR

90387-06107-00

—

$7.05

In stock

20

SCREW, PAN

98507-06014-00

—

$6.18

In stock

21

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

22

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

23

BODY, FRONT UPPER 2

2WV-Y283H-00-6Y

1
Out of stock

24

. GRAPHIC, COWLING 2

2WV-28392-00-00

1
Out of stock

25

EMBLEM

26H-28338-00-00

1
Out of stock

26

GRILL, air intake 2

26H-2837R-01-33

1
Out of stock

27

DUCT 4

26H-2838U-01-00

1
Out of stock

28

DAMPER

26H-28372-00-00

1
Out of stock

29

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

30

NUT, SPRING (26H)

90183-04027-00

—

$1.91

In stock

31

COLLAR

90387-06107-00

—

$7.05

In stock

32

SCREW, PAN

98507-06014-00

—

$6.18

In stock

33

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

34

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

35

RIM, HEADLIGHT

1NL-2835A-00-95

1
Out of stock

36

PAD

1NL-28378-00-00

1
Out of stock

37

SCREW, TAPPING (5G2)

90164-04006-00

—
Out of stock

38

NUT, SPRING (26H)

90183-04027-00

—

$1.91

In stock

39

GRILL, AIR INTAKE 3

26H-2837T-00-96

1
Out of stock

40

PLATE

1NL-28336-00-00

1
Out of stock

41

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

42

SCREW, WITH WASHER(1NL)

90159-05134-00

—
Out of stock

43

NUT, SPRING

90183-051A0-00

—

$2.66

In stock

44

SCREEN (41R-2837U-00)

ABA-26H01-11-00

1
Out of stock

45

MOLE 1

26H-28345-00-00

1
Out of stock

46

COLLAR

90387-056J6-00

1
Out of stock

47

PLATE, front

1NL-28361-00-00

1
Out of stock

48

DAMPER, SIDE COVER

2N4-21717-00-00

—

$6.38

In stock

49

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

50

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

51

MOLE 2

1NL-28346-00-00

1
Out of stock

52

EMBLEM 4 (26H-21784-00)

26H-21783-00-00

1
Out of stock

53

GROMMET(1KT)

90480-01445-00

—

$3.15

In stock

54

MOLD 3

1NL-28347-01-00

1
Out of stock

55

NOLE 4

1NL-28348-01-00

1
Out of stock

56

SCREW (26H)

90149-05185-00

—

$8.55

In stock

57

REAR VIEW MIRROR ASSY (RIGHT)

26H-26290-20-00

1
Out of stock

58

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

59

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

60

REAR VIEW MIRROR ASSY (LEFT)

26H-26290-30-00

1
Out of stock

61

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

62

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

63

PANEL, inner 3

41V-2836M-00-00

1
Out of stock

64

BRACKET

1NL-28366-00-00

1
Out of stock

65

BOLT, WITH WASHER(55K)

90119-06117-00

—

$3.74

In stock
