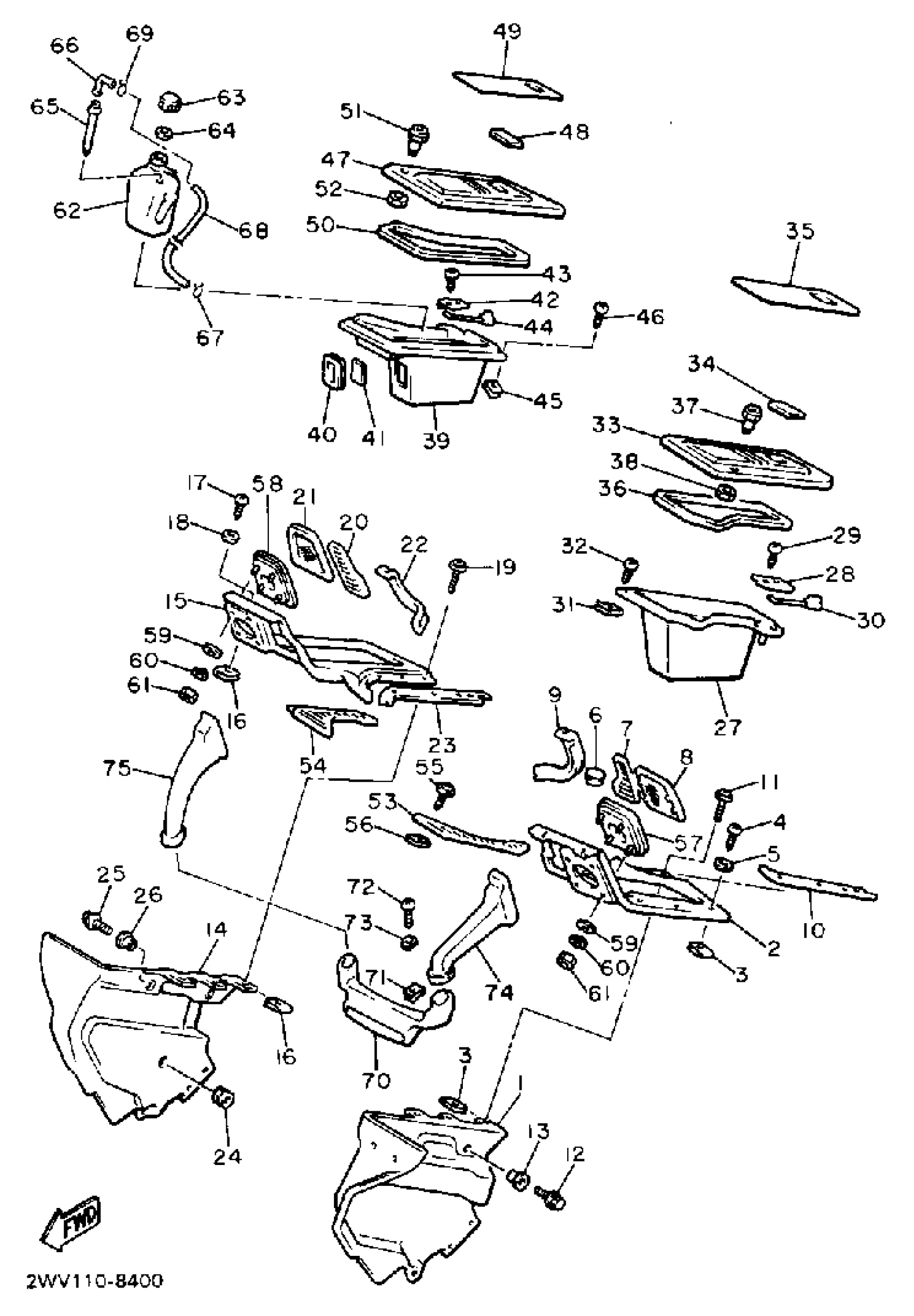

Yamaha XVZ13UC (VENTURE CA) 1988 COWLING 1 Diagram

#

Description
Price

1

PANEL, inner 1

1NL-2836K-00-00

Unavailable

2

PANEL, console 1

26H-2837L-02-00

Unavailable

3

NUT, SPRING

90183-051A0-00

$3.81

4

SCREW, PAN HEAD

90157-05M19-00

Unavailable

5

WASHER(1RW)

92907-05600-00

$3.78

6

CAP

26H-28349-00-00

Unavailable

7

GRILL, air outlet 1

26H-2837V-00-00

Unavailable

8

PANEL, 1

26H-2835U-01-00

Unavailable

9

MOLE 5

26H-2834G-00-00

Unavailable

10

DAMPER, locating 1

26H-2836T-00-00

Unavailable

11

SCREW, WITH WASHER(1NL)

90159-05134-00

$0.33

12

BOLT, FLANGE

95817-06020-00

$3.81

13

COLLAR (8G8)

90387-06681-00

$9.49

14

PANEL, inner 2

1NL-2836L-00-00

Unavailable

15

PANEL, console 2

26H-2837M-01-00

Unavailable

16

NUT, SPRING

90183-051A0-00

$3.81

17

SCREW, PAN HEAD

90157-05M19-00

Unavailable

18

WASHER(1RW)

92907-05600-00

$3.78

19

SCREW, WITH WASHER(1NL)

90159-05134-00

$0.33

20

GRILL, air outlet 2

26H-2837W-00-00

Unavailable

21

PANEL, 1

26H-2835U-01-00

Unavailable

22

MOLE 6

26H-2834H-00-00

Unavailable

23

DAMPER, locating 2

26H-2836U-00-00

Unavailable

24

GROMMET

90480-40367-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

$3.81

26

COLLAR (8G8)

90387-06681-00

$9.49

27

BOX 1

26H-2838K-01-00

Unavailable

28

PLATE, lock 1

26H-28216-00-00

Unavailable

29

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

30

PIN, lock

26H-28235-00-00

Unavailable

31

NUT, SPRING (26H)

90183-04027-00

Unavailable

32

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

33

LID 1

26H-2839K-01-00

Unavailable

34

EMBLEM 7

(33N-21787-00-00)

Unavailable

35

SEAT 1

26H-2838G-00-00

Unavailable

36

SEAL, box 1

26H-2838M-01-00

Unavailable

37

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

38

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

39

BOX 2

26H-2838L-01-00

Unavailable

40

HOLDER

26H-2839N-00-00

Unavailable

41

PANEL, access

26H-2839R-00-00

Unavailable

42

PLATE, lock 2

26H-28226-00-00

Unavailable

43

SCREW, PAN TAP.2 SLIT

97707-40610-00

Unavailable

44

PIN, lock

26H-28235-00-00

Unavailable

45

NUT, SPRING (26H)

90183-04027-00

Unavailable

46

SCREW, TAPPING (5G2)

90164-04006-00

Unavailable

47

LID 2

26H-2839L-01-00

Unavailable

48

EMBLEM 7

(33N-21787-00-00)

Unavailable

49

SEAT 1

26H-2838G-00-00

Unavailable

50

SEAL, box 2

26H-2839M-00-00

Unavailable

51

SIDE COVER LOCK ASSY

26H-21708-00-00

Unavailable

52

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable

53

HOOD 1

26H-2835E-00-00

Unavailable

54

HOOD 2

26H-2835F-00-00

Unavailable

55

SCREW, WITH WASHER(1NL)

90159-05134-00

$0.33

56

NUT, SPRING

90183-051A0-00

$3.81

57

GRILLE, speaker 1

26H-88163-00-00

Unavailable

58

GRILLE, speaker 2

26H-88173-00-00

Unavailable

59

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

60

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

61

NUT, HEXAGON (663)

95380-05600-00

Unavailable

62

TANK, recovery

26H-21871-01-00

Unavailable

63

CAP

26H-21875-00-00

Unavailable

64

GASKET

26H-21874-00-00

Unavailable

65

PIPE 1

26H-21816-01-00

Unavailable

66

ELBOW

26H-21828-00-00

Unavailable

67

CLIP (7K7)

90467-11044-00

Unavailable

68

HOSE (M201)

91A10-07150-00

Unavailable

69

CLIP

90467-100A1-00

Unavailable

70

DUCT 5

26H-2838J-00-00

Unavailable

71

NUT, SPRING

90183-051A0-00

$3.81

72

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

73

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

74

DUCT 1

26H-2838N-00-00

Unavailable

75

DUCT 2

26H-2838R-00-00

Unavailable
