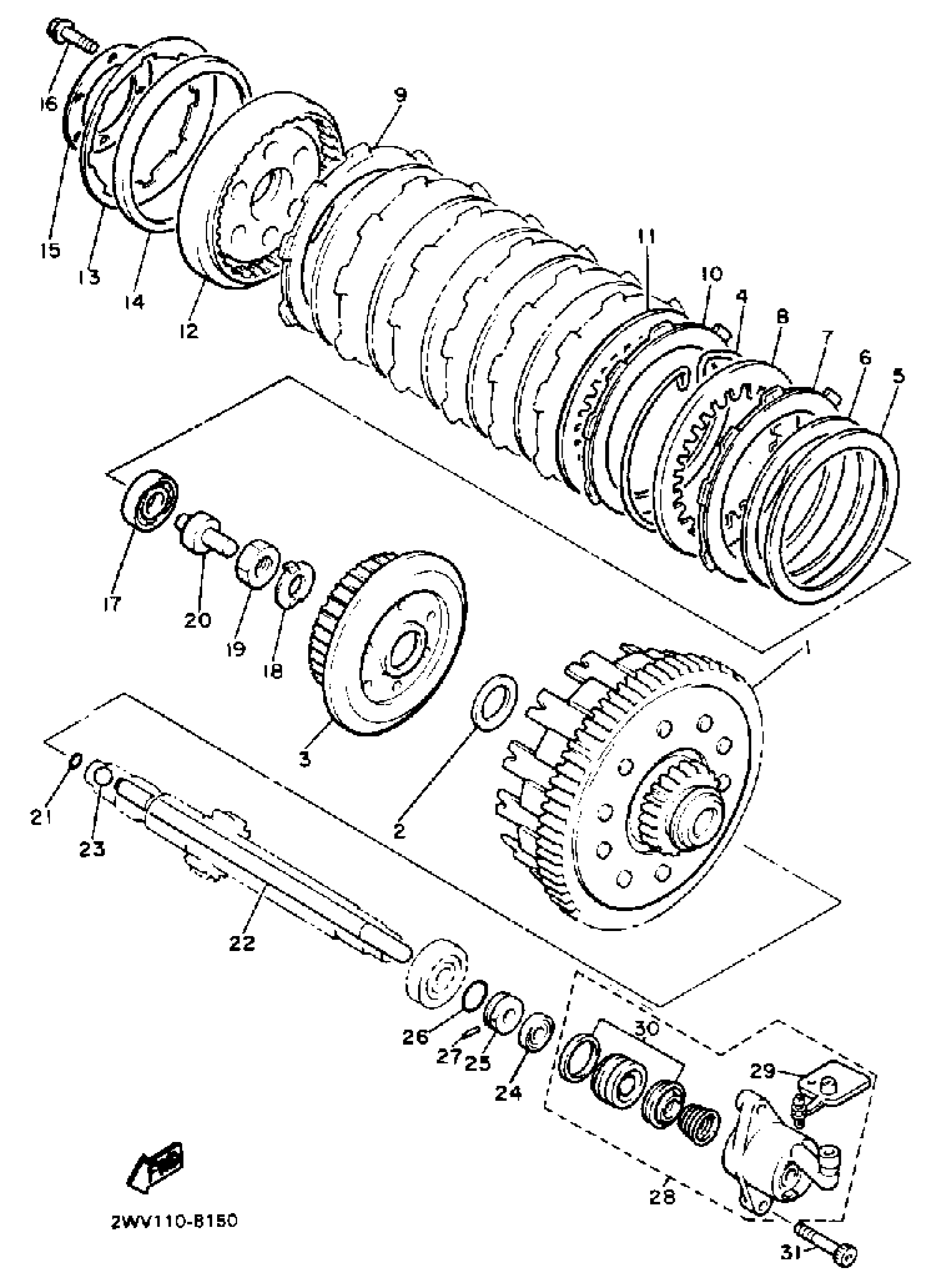

Yamaha XVZ13UC (VENTURE CA) 1988 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
99999-02924-00
Unavailable
2
PLATE, THRUST 1
26H-16154-00-00
Unavailable
3
BOSS, CLUTCH
1FK-16371-00-00
Unavailable
15
PLATE, PRESSURE 2
1FK-16352-00-00
Unavailable
16
BOLT, HEXAGON
97017-06025-00
Unavailable
17
BEARING(2JN)
93306-00315-00
Unavailable
18
WASHER, LOCK (26H)
90215-25218-00
Unavailable
19
UNAVAILABLE IN PRICE BOOK
90170-10323-00
Unavailable
20
ROD, PUSH 1
36Y-16356-00-00
Unavailable
21
O-RING (26H)
93210-06632-00
Unavailable
22
ROD, PUSH 2
4NK-16357-00-00
Unavailable
23
BALL (498)
93511-32027-00
Unavailable
24
OIL SEAL(12E)
93109-08061-00
Unavailable
25
GUIDE,PUSH ROD
26H-Y1639-00-00
Unavailable
26
O-RING (1L9)
93210-18322-00
Unavailable
27
PIN, DOWEL
93603-07073-00
Unavailable
28
PUSH LEVER COMP.
1FK-16381-11-00
Unavailable
29
BLEED SCREW KIT
1NL-W0048-00-00
Unavailable
30
PUSH LEVER SEAL KIT
26H-W0098-00-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD (4H7
90110-06035-00
Unavailable
