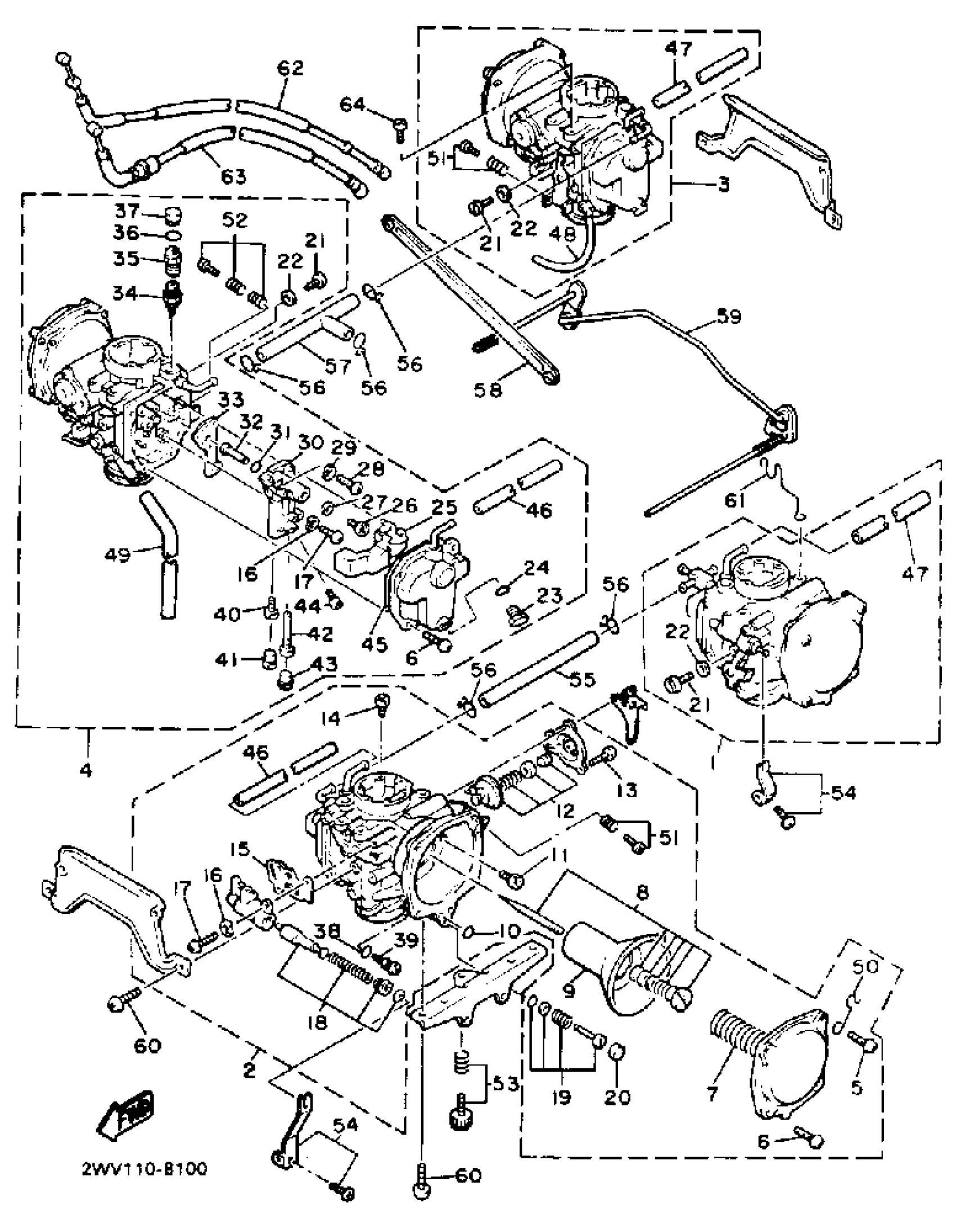

Yamaha XVZ13UC (VENTURE CA) 1988 CARBURETOR NON CALIFORNIA MODEL Diagram

#

Description
Price

1

CARBURETOR ASY 1

1NL-14901-02-00

Unavailable

2

CARBURETOR ASY 2

1NL-14902-02-00

Unavailable

3

CARBURETOR ASY 3

1NL-14903-02-00

Unavailable

4

CARBURETOR ASSY 4

1NL-14904-02-00

Unavailable

5

SCREW, PAN HEAD(1FK)

90157-05050-00

Unavailable

6

SCREW,PAN HEAD (646)

98580-05012-00

$7.99

7

SPRING, DIAPHRAGM

1FK-14933-00-00

$36.99

8

.. NEEDLE SET

1NL-1490J-00-00

Unavailable

9

DIAPHRAGM ASSY

1FK-14940-09-00

$247.99

10

O-RING (248)

93210-03119-00

$4.99

11

JET, MAIN (#170)

3G2-14231-34-00

$14.49

12

DIAPHRAGM SET, 5

3LD-1490H-00-00

Unavailable

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

13

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

14

. JET, MAIN 80 (80)

3G2-14231-16-00

Unavailable

15

GASKET

3JB-14536-00-00

Unavailable

16

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

17

SCREW, PAN HEAD

98511-04012-00

Unavailable

18

STARTER SET

11H-1410A-00-00

Unavailable

19

PILOT SCREW SET

12R-14105-00-00

Unavailable

20

CAP

3F9-14118-00-00

Unavailable

21

.. PLUG, SCREW

341-14991-00-00

Unavailable

22

.. WASHER

26H-14952-00-00

Unavailable

23

PLUG, SCREW

22U-14115-00-00

Unavailable

24

.. O-RING

22U-14561-00-00

Unavailable

25

FLOAT

1FK-14985-00-00

Unavailable

26

SCREW

22U-14565-00-00

Unavailable

27

WASHER,MAIN JET

137-14153-00-00

Unavailable

28

SCREW, PAN HEAD

98507-04018-00

Unavailable

29

. UNAVAILABLE IN PRICE BOOK (92902-04100)

92901-41000-0

Unavailable

30

BLOCK JET ASSY

26H-1411A-00-09

Unavailable

31

O-RING

22U-14147-00-00

Unavailable

32

NOZZLE, MAIN

26H-14941-90-00

Unavailable

33

GASKET

3JB-14199-00-00

Unavailable

34

NEEDLE VALVE ASSY

1FK-14190-15-00

Unavailable

35

NET, FILTER

1J7-14994-00-00

Unavailable

36

O-RING

1FK-14147-00-00

Unavailable

37

CAP

41R-14118-01-00

Unavailable

38

O-RING

214-14147-00-00

Unavailable

39

SCREW

2L1-14191-00-00

Unavailable

40

JET, PILOT (# 37.5)

4G0-14142-37-A0

Unavailable

41

CAP

22V-14968-00-00

Unavailable

42

PIPE, MAIN BREED

26H-1414G-00-00

Unavailable

43

CAP

22U-14968-00-00

Unavailable

44

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

45

O-RING

22V-14147-00-00

Unavailable

46

. PIPE (INL-14197-00-00)

90445-111F4-00

Unavailable

47

HOSE (L800)

90445-11083-00

Unavailable

48

HOSE (L570)

90445-075G4-00

Unavailable

49

HOSE (L570)

90445-075G4-00

Unavailable

50

CLIP, PIPE

(31M-14139-00-00)

Unavailable

51

STOP SCREW SET

48H-1490K-00-00

Unavailable

52

STOP SCREW SET

48H-1490K-00-00

Unavailable

53

.. THROTTLE SCREW SET

41V-14103-00-00

Unavailable

54

STARTER LEVER SET 2

(41V-1490M-00-00)

Unavailable

55

HOSE

31H-14987-00-00

Unavailable

56

CLIP

90467-100A1-00

Unavailable

57

HOSE

26H-14987-00-00

Unavailable

58

ROD SET

(41V-14504-00-00)

Unavailable

59

. STARTER LEVER SET, 1

41V-1490L-00-00

Unavailable

60

SCREW PAN HEAD

98580-06010-00

Unavailable

61

CLIP, PIPE

(26H-14139-00-00)

Unavailable

62

THROTTLE CABLE 4

41V-2631J-00-00

Unavailable

63

CABLE, THROTTLE 3

41V-26313-01-00

Unavailable

64

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable
