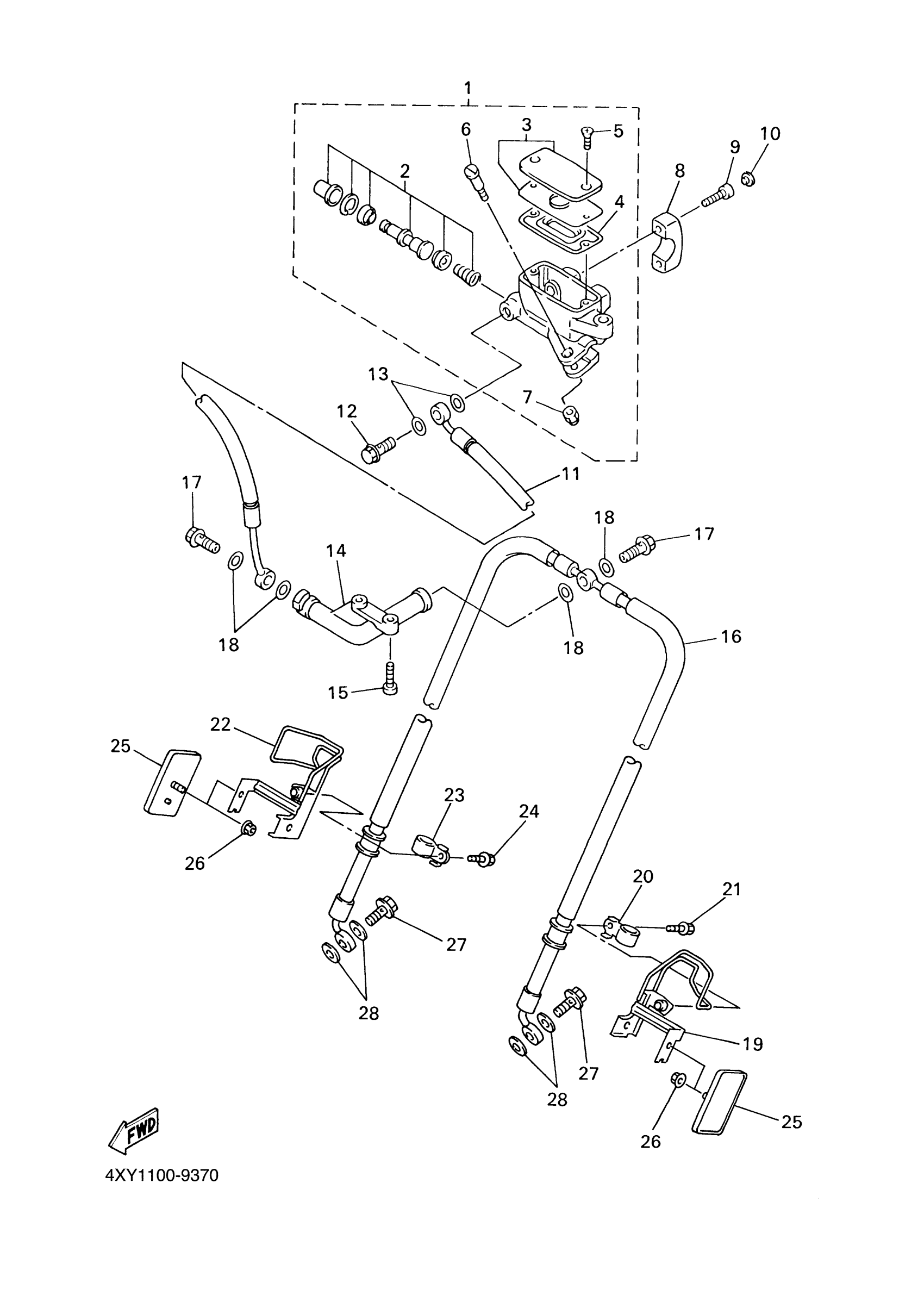

Yamaha XVZ13TFXR (ROYAL STAR VENTURE) 2C9G 2008 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4XY-W2587-10-00

Unavailable

2

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

3

RESERVOIR CAP SET

5VN-W2585-20-00

$52.89

4

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$18.52

5

SCREW

3D8-2589H-10-00

$6.03

6

BOLT, LEVER

4NK-2589F-00-00

Unavailable

7

NUT, U(4NK)

95604-06100-00

$6.22

8

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

9

BOLT,SOCKET HEAD

91314-06025-00

$6.22

10

PLUG(42H)

90338-06162-00

$9.73

11

HOSE, BRAKE 1

4XY-25872-00-00

$91.64

12

BOLT, UNION

90401-10020-00

$7.72

13

GASKET

90430-10005-00

$6.57

14

JOINT

4NK-25885-00-00

Unavailable

15

BOLT,SOCKET

91317-06020-00

Unavailable

16

HOSE, BRAKE 2

4WM-25873-00-00

Unavailable

17

BOLT, UNION

90401-10020-00

$7.72

18

GASKET

90430-10005-00

$6.57

19

HOLDER, BRAKE HOSE 1

4XY-25875-00-00

Unavailable

20

CLAMP 1

90461-08031-00

Unavailable

21

BOLT, FLANGE

95817-06012-00

Unavailable

22

HOLDER, BRAKE HOSE

4XY-25886-00-00

Unavailable

23

CLAMP 1

90461-08031-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable

25

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

26

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

27

BOLT, UNION

90401-10020-00

$7.72

28

GASKET

90430-10005-00

$6.57
