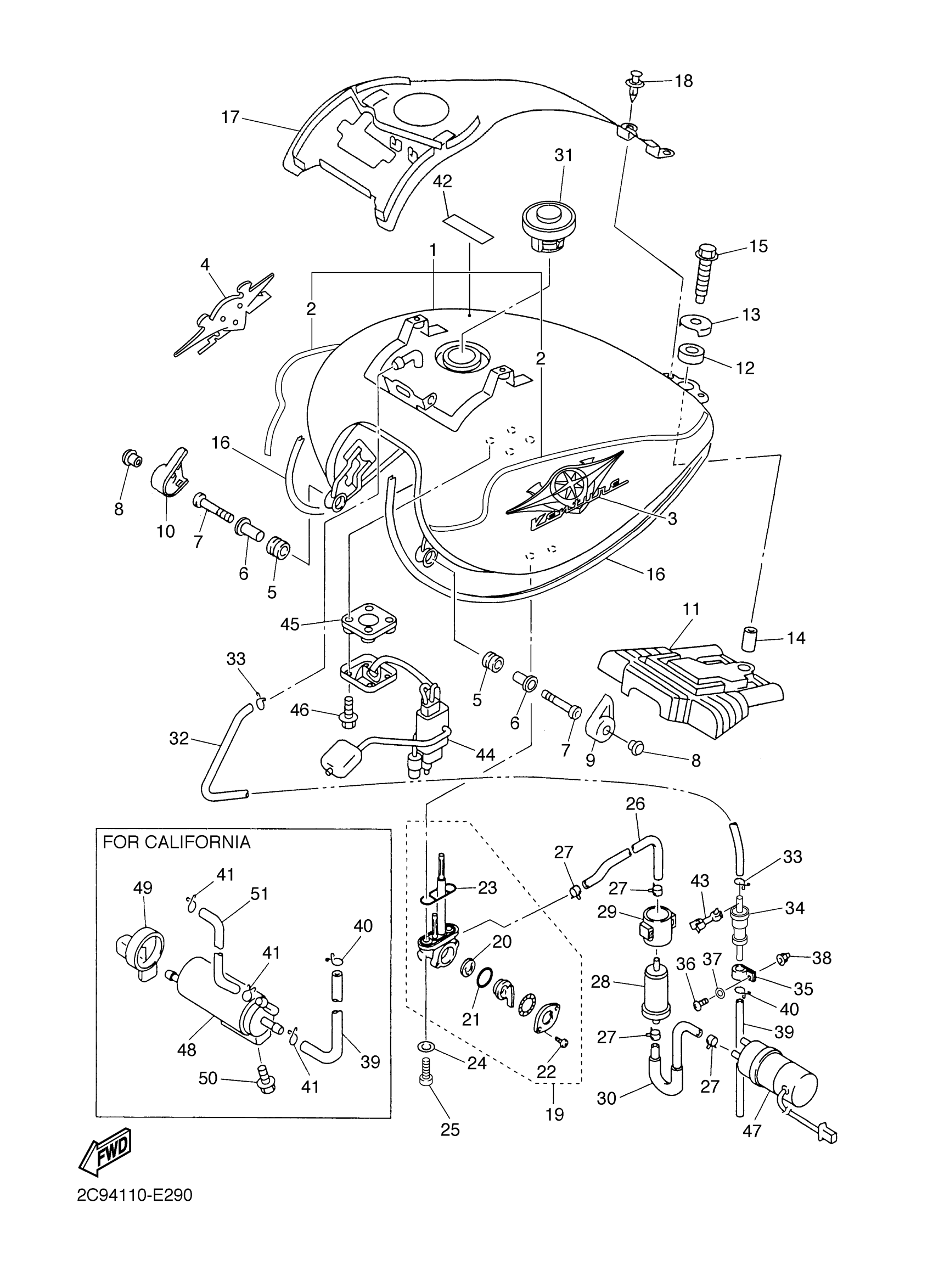

Yamaha XVZ13TFVC (ROYAL STAR VENTURE CA) 2C95 2006 FUEL TANK Diagram
#
1
FUEL TANK COMP. (VERY DARK RED METALLIC 2)
4XY-Y2410-10-X3
Unavailable
2
. GRAPHIC SET
4XY-24240-90-00
Unavailable
3
EMBLEM
2C9-2416B-00-00
Unavailable
4
EMBLEM
2C9-2417B-00-00
Unavailable
7
BOLT,SOCKET
91317-06035-00
Unavailable
10
COVER, SIDE 2
1D6-24139-00-00
Unavailable
11
DAMPER, LOCATING 2
4XY-24182-00-00
Unavailable
16
MOLD, FUEL TANK
4XY-24188-00-00
Unavailable
17
COVER, TOP
4XY-2171A-00-00
Unavailable
18
RIVET(4JH)
90269-07076-00
Unavailable
19
FUEL COCK ASSY 1
4WM-24500-10-00
Unavailable
20
VALVE PACKING
3AC-24523-00-00
Unavailable
21
SEAL, COCK
3AJ-24534-01-00
Unavailable
22
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
23
O-RING
4X8-24512-00-00
Unavailable
24
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
25
SCREW 256241430000
90149-06011-00
Unavailable
26
PIPE, FUEL 1
4XY-24311-00-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
FILTER ASSY
1FK-24560-10-00
Unavailable
29
BRACKET, FILTER
1FK-24566-00-00
Unavailable
30
PIPE 2
4NK-24312-00-00
Unavailable
31
CAP ASSY
4NK-24602-20-00
Unavailable
32
PIPE 10
1D6-24321-00-00
Unavailable
33
CLIP
90467-09002-00
Unavailable
34
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
35
CLAMP
90464-15014-00
Unavailable
36
SCREW, PAN
98517-05012-00
Unavailable
37
WASHER(1RW)
92907-05600-00
Unavailable
38
NUT, CROWN(47X)
90176-05054-00
Unavailable
39
HOSE (L400)
90445-116K9-00
Unavailable
40
CLIP
90467-100A1-00
Unavailable
41
CLIP
90467-100A1-00
Unavailable
42
LABEL, CAUTION
5GK-2118K-00-00
Unavailable
43
CLAMP(2YK)
90464-13103-00
Unavailable
44
SENDER UNIT ASSY, FUEL METER
4XY-85752-11-00
Unavailable
45
GASKET, SENDER UNIT
5G3-85753-00-00
Unavailable
46
BOLT, WITH WASHER
90119-05071-00
Unavailable
47
FUEL PUMP COMP.
4NK-13907-01-00
Unavailable
48
CANISTER ASSY
4XY-24170-00-00
Unavailable
49
COVER, CANISTER
2JU-2419E-00-00
Unavailable
50
BOLT, FLANGE
95817-06010-00
Unavailable
51
HOSE
90445-113K3-00
Unavailable
