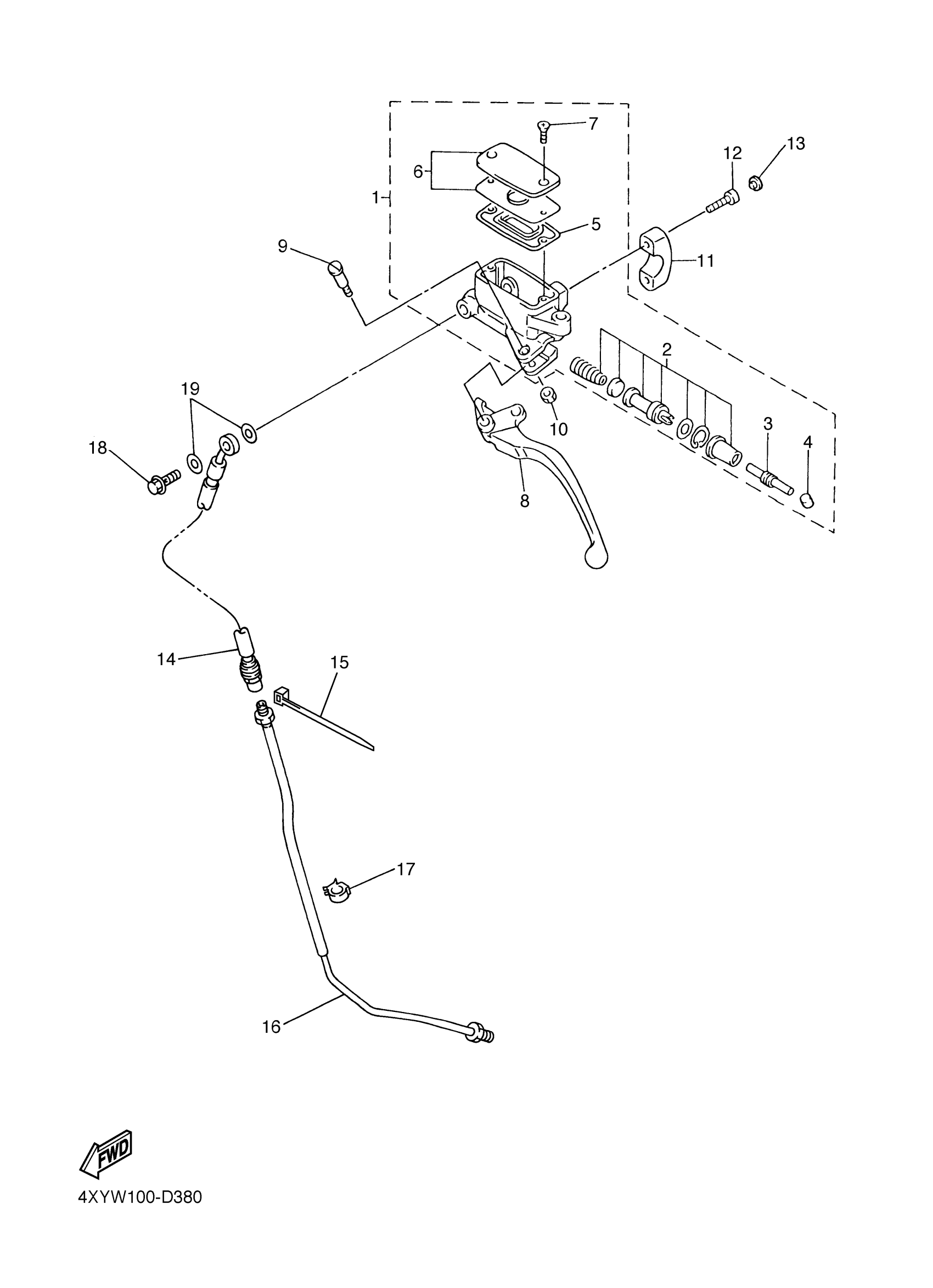

Yamaha XVZ13TFVC (ROYAL STAR VENTURE CA) 2C95 2006 FRONT MASTER CYLINDER 2 Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

4NK-W2645-00-00

$496.99

2

CYLINDER KIT, MASTER (CLUTCH)

3GM-W0099-00-00

Unavailable

3

ROD, PUSH

3GM-26464-00-00

$18.49

4

BUSH

3GM-26455-00-00

$24.99

5

DIAPHRAGM, RESERVOIR

4NK-25854-00-00

$22.99

6

RESERVOIR CAP SET

4NK-W2585-01-00

Unavailable

7

SCREW

3D8-2589H-10-00

$7.99

8

LEVER 1

1D6-83912-00-00

$69.99

9

BOLT, LEVER

4NK-83945-00-00

$14.49

10

NUT, U(4NK)

95604-06100-00

$8.49

11

BRACKET, MASTER CYLINDER

4NK-25867-00-00

Unavailable

12

BOLT,SOCKET HEAD

91314-06025-00

$8.49

13

PLUG(42H)

90338-06162-00

$11.49

14

HOSE, CLUTCH 1

4XY-26472-00-00

$230.99

15

CLAMP

90464-16061-00

$8.49

16

PIPE

4XY-26471-00-00

Unavailable

17

CLAMP(4GY)

90464-10190-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable
