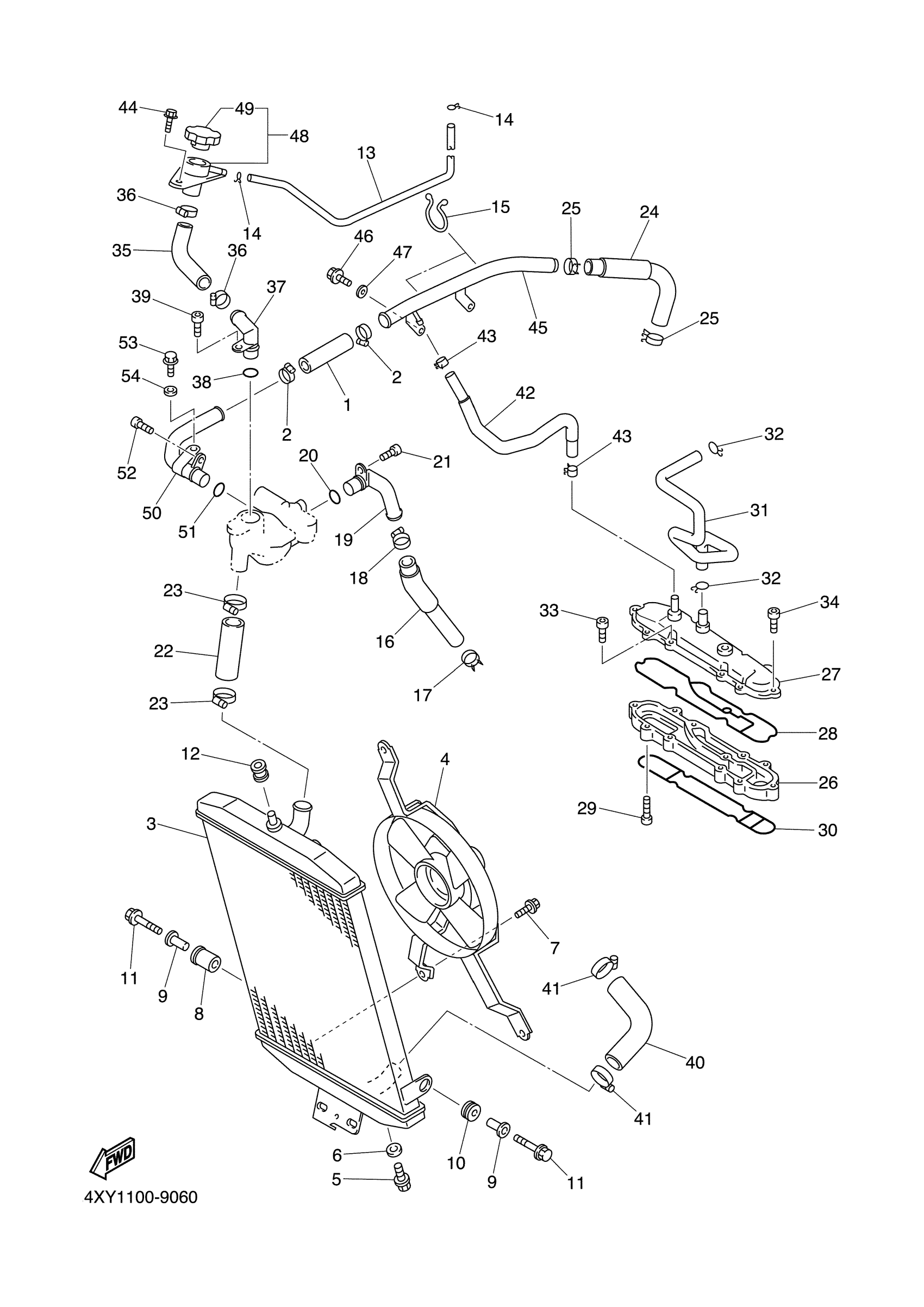

Yamaha XVZ13TFTC (ROYAL STAR VENTURE CA) 4XYX 2005 RADIATOR HOSE Diagram
#
1
HOSE 3 (L81.8)
4XY-12578-00-00
Unavailable
3
RADIATOR ASSY
4XY-12461-00-00
Unavailable
4
BLOWER ASSY
4XY-12405-00-00
Unavailable
8
DAMPER, RADIATOR
4XY-12465-00-00
Unavailable
9
COLLAR
90387-0614X-00
Unavailable
16
HOSE 1
4XY-12576-00-00
Unavailable
17
CLIP (10V)
90467-23067-00
Unavailable
19
PIPE 5
4XY-12485-00-00
Unavailable
20
O-RING (716)
93210-18417-00
Unavailable
21
BOLT,SOCKET
91317-06012-00
Unavailable
22
HOSE 4 (L85)
4XY-12579-00-00
Unavailable
23
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
24
HOSE 2
4XY-12577-00-00
Unavailable
25
CLIP (10V)
90467-23067-00
Unavailable
26
COVER 1
1FK-1246A-10-00
Unavailable
27
COVER 2
26H-1246E-20-00
Unavailable
28
GASKET, HOUSING COVER 2
26H-12428-00-00
Unavailable
29
BOLT, SOCKET
91314-06016-00
Unavailable
30
GASKET, HOUSING COVER 1
26H-12427-00-00
Unavailable
31
PIPE, BREATHER 1
4XY-11166-00-00
Unavailable
32
CLIP (371)
90467-14015-00
Unavailable
33
BOLT, SOCKET
91314-06040-00
Unavailable
34
BOLT, SOCKET
91314-06040-00
Unavailable
35
HOSE 6
4XY-12589-00-00
Unavailable
37
PIPE 4
4XY-12484-00-00
Unavailable
38
O-RING (716)
93210-18417-00
Unavailable
39
BOLT,SOCKET
91317-06012-00
Unavailable
40
HOSE 5
4XY-12588-00-00
Unavailable
41
HOSE CLAMP ASSY(3GM)
90450-38040-00
Unavailable
42
HOSE 7
4XY-12551-00-00
Unavailable
43
CLIP(3BM)
90467-10135-00
Unavailable
44
BOLT, FLANGE
95817-06012-00
Unavailable
45
PIPE 1
4XY-12481-00-00
Unavailable
46
BOLT
97027-05010-00
Unavailable
47
WASHER(1RW)
92907-05600-00
Unavailable
48
CONDUCTION ASSY
4NK-12590-00-00
Unavailable
49
CAP, RADIATOR
1B3-12462-00-00
Unavailable
50
PIPE 2
4XY-12482-00-00
Unavailable
51
O-RING (716)
93210-18417-00
Unavailable
52
BOLT,SOCKET
91317-06012-00
Unavailable
53
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
54
WASHER(6TA)
92907-06600-00
Unavailable
