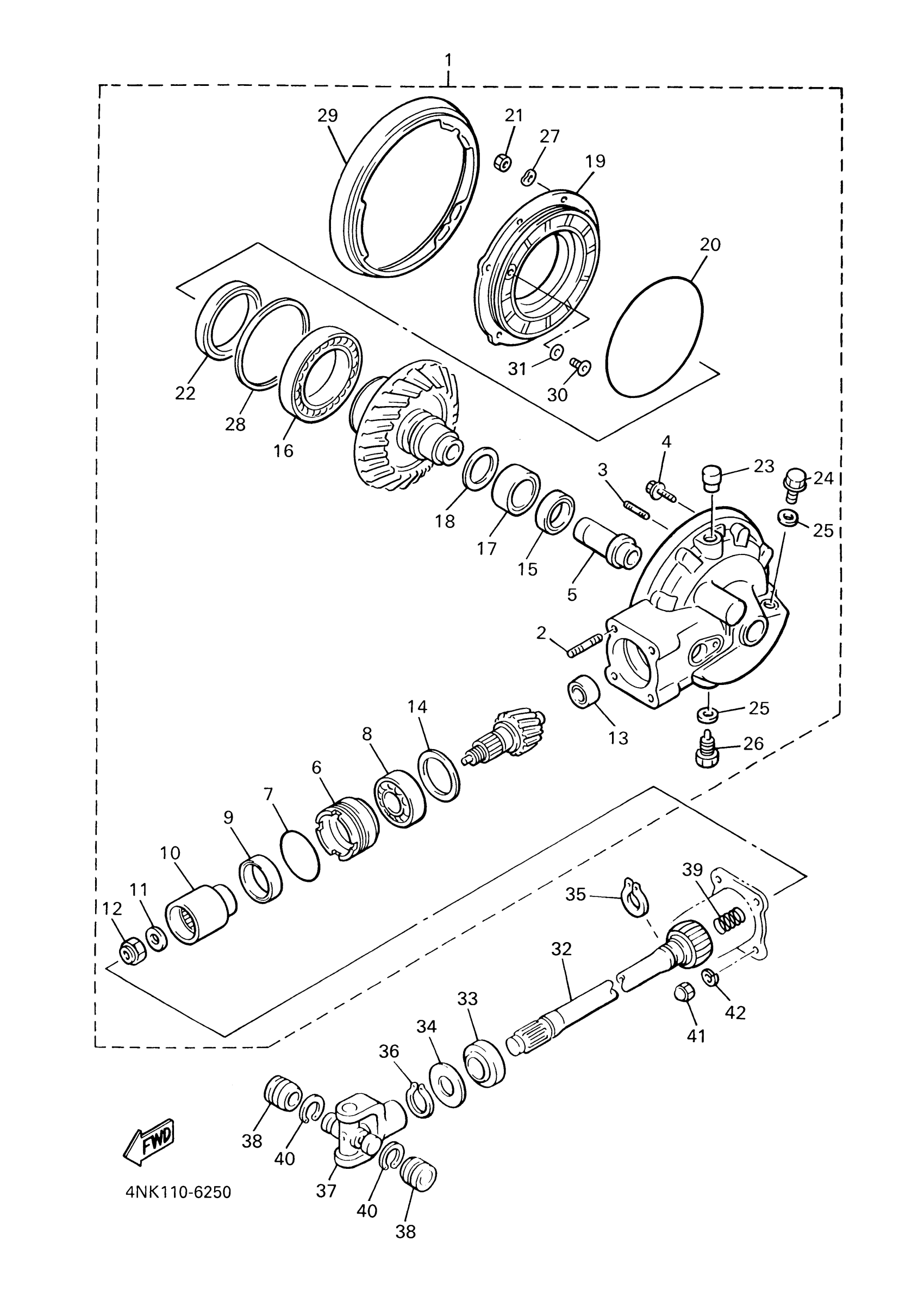

Yamaha XVZ13TFTC (ROYAL STAR VENTURE CA) 4XYX 2005 DRIVE SHAFT Diagram
#
1
REAR AXLE GEAR CASE ASSY
4XY-46101-00-00
Unavailable
2
BOLT, STUD (5E5)
90116-10361-00
Unavailable
5
. COLLAR, GUIDE
4YE-46153-00-00
Unavailable
10
COUPLING, GEAR
4H7-46123-01-00
Unavailable
14
SHIM, THRUST (0.50T)
1J7-17537-Y0-50
Unavailable
15
OIL SEAL (30X42X7-1J7)
93101-30084-00
Unavailable
16
BRG,R-B 16014C2 110MM 433G KY
93316-01403-00
Unavailable
17
BRG,CYL-CAL ROLLER 80G KY
93311-43729-00
Unavailable
18
WASHER, THRUST
22U-46118-00-12
Unavailable
18
WASHER, THRUST
22U-46118-00-14
Unavailable
18
WASHER, THRUST
22U-46118-00-16
Unavailable
18
WASHER, THRUST
22U-46118-00-18
Unavailable
18
WASHER, THRUST
22U-46118-00-20
Unavailable
19
. HOUSING, BEARING
1FK-46152-01-00
Unavailable
20
O-RING(59V)
93211-54698-00
Unavailable
21
NUT(6TA)
95337-08600-00
Unavailable
22
OIL SEAL (4H7)
93102-70167-00
Unavailable
23
BREATHER COMP.
56W-17590-00-00
Unavailable
24
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
Unavailable
25
GASKET
214-11198-01-00
Unavailable
26
PLUG
3JL-13455-00-00
Unavailable
27
WASHER(6TA)
92907-08700-00
Unavailable
28
SHIM, RING GEAR (0.25T)
1J7-46117-Y0-25
Unavailable
28
SHIM, RING GEAR (0.30T)
1J7-46117-Y0-30
Unavailable
28
SHIM, RING GEAR (0.40T)
1J7-46117-Y0-40
Unavailable
28
SHIM, RING GEAR (0.50T)
1J7-46117-Y0-50
Unavailable
29
COVER, HOUSING
1FK-46154-00-00
Unavailable
30
STOPPER, RING GEAR
1FK-46156-00-00
Unavailable
31
SHIM, STOPPER
1FK-46157-00-15
Unavailable
31
. SHIM, STOPPER (T=020)
1FK-46157-00-20
Unavailable
32
SHAFT, DRIVE
4XY-46172-00-00
Unavailable
33
OIL SEAL(1FK)
93108-43013-00
Unavailable
34
WASHER, PLATE (4H7)
90201-231A2-00
Unavailable
35
CIRCLIP (4H7)
93410-23056-00
Unavailable
36
CIRCLIP (537)
93410-22039-00
Unavailable
37
CROSS JOINT COMP.
4X7-46180-00-00
Unavailable
38
BEARING(2HR)
93399-99926-00
Unavailable
39
SPRING, COMPRESSION (2H7)
90501-16491-00
Unavailable
40
CIRCLIP (4X7)
93440-20088-00
Unavailable
41
NUT, CROWN(2GG)
90176-10075-00
Unavailable
42
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
