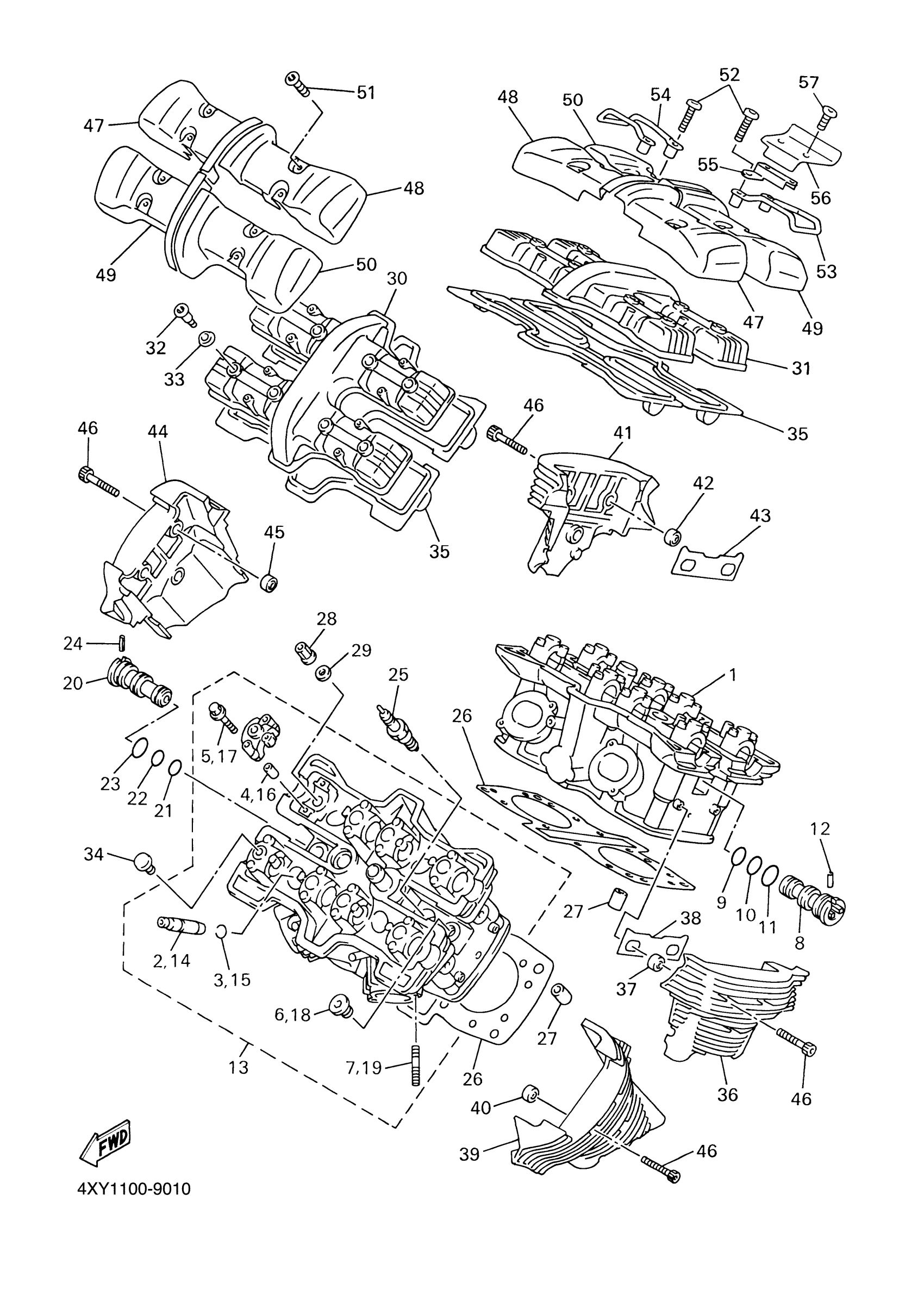

Yamaha XVZ13TFTC (ROYAL STAR VENTURE CA) 4XYX 2005 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD ASSY
4XY-11101-41-00
Unavailable
8
JOINT 1
26H-12469-01-00
Unavailable
12
PIN, SPRING
91690-30025-00
Unavailable
13
CYLINDER HEAD ASSY
4XY-11101-51-00
Unavailable
20
JOINT 1
26H-12469-01-00
Unavailable
24
PIN, SPRING
91690-30025-00
Unavailable
25
DPR8EA-9 NGK 10PK
DPR-8EA90-00-00
Unavailable
25
DPR8EA-9 NGK 10PK
DPR-8EA90-00-00
Unavailable
26
GASKET, CYLINDER HEAD 1
1NL-11181-02-00
Unavailable
27
PIN, DOWEL
99530-14016-00
Unavailable
28
NUT (26H)
90179-10414-00
Unavailable
29
WASHER, PLATE (26H)
90201-102G9-00
Unavailable
30
COVER, CYLINDER HEAD 1
4NK-11191-00-00
Unavailable
31
COVER, CYLINDER HEAD 1
4NK-11191-00-00
Unavailable
32
BOLT(4BP)
90109-066F0-00
Unavailable
33
RUBBER, MOUNT 1
5EA-1111G-00-00
Unavailable
34
PLUG (31M)
90338-10150-00
Unavailable
35
GASKET, HEAD COVER 1
4NK-11193-00-00
Unavailable
36
COVER, CYLINDER HEAD SIDE 2
4NK-11186-20-00
Unavailable
37
DAMPER, ENGINE MOUNT 1
4NK-15316-00-00
Unavailable
38
GASKET
4NK-11195-00-00
Unavailable
39
COVER, CYLINDER HEAD SIDE 3
4XY-11187-20-00
Unavailable
40
DAMPER, ENGINE MOUNT 1
4NK-15316-00-00
Unavailable
41
COVER, CYLINDER HEAD SIDE 1
4NK-11185-20-00
Unavailable
42
DAMPER, ENGINE MOUNT 1
4NK-15316-00-00
Unavailable
43
GASKET
4NK-11195-00-00
Unavailable
44
COVER, CYLINDER HEAD SIDE 4
4XY-1111H-20-00
Unavailable
45
DAMPER, ENGINE MOUNT 1
4NK-15316-00-00
Unavailable
46
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
47
COVER 1
4NK-1111M-00-00
Unavailable
48
COVER 2
4NK-1111N-00-00
Unavailable
49
COVER 3
4NK-1111P-00-00
Unavailable
50
COVER 4
4NK-1111R-00-00
Unavailable
51
BOLT, BUTTON HEAD(4NK)
92014-06014-00
Unavailable
52
BOLT, BUTTON HEAD(4NK)
92014-06030-00
Unavailable
53
BRACKET, CYLINDER HEAD COVER
4NK-11152-00-00
Unavailable
54
BRACKET, CYLINDER HEAD COVER 2
4NK-11142-00-00
Unavailable
55
BRACKET, CYLINDER HEAD COVER
4XY-11152-00-00
Unavailable
56
COVER
4XY-1118A-00-00
Unavailable
57
BOLT, BUTTON HEAD
92014-06010-00
Unavailable
