Description

Price

1

COVER, CRANKCASE 1

4NK-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

4NK-15451-00-00

$27.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, SOCKET

91314-06060-00

$8.49

5

BOLT, SOCKET

91314-06045-00

$8.49

6

PLATE

4NK-15191-00-00

Unavailable

7

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

8

PLUG, STRAIGHT SCREW (5H0)

90340-14068-00

$18.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

COVER, CAP 2

4NK-15427-00-00

Unavailable

11

O-RING (256)

93210-45150-00

$9.49

12

SCREW, FLAT

98704-06016-00

Unavailable

13

COVER, CRANKCASE 2

4NK-15421-00-00

Unavailable

14

GASKET, CRANKCASE COVER 2

3JP-15461-01-00

$7.99

15

COVER, CARBURATOR 2

4NK-15423-00-00

Unavailable

16

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

17

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

BOLT, SOCKET

91314-06045-00

$8.49

20

BOLT, SOCKET

91314-06035-00

Unavailable

21

GASKET 256113960000

90430-06014-00

Unavailable

22

COVER, CRANKCASE 3

4NK-15431-00-00

Unavailable

23

PLUG, OIL

2H7-15363-00-00

Unavailable

24

O-RING(1KT)

93210-27778-00

Unavailable

25

GASKET, CRANKCASE COVER 3

4NK-15462-00-00

Unavailable

26

PIN, DOWEL(3VD)

99530-10114-00

$2.55

27

BOLT,SOCKET HEAD

91314-06025-00

Unavailable

28

BOLT, SOCKET

91314-06035-00

Unavailable

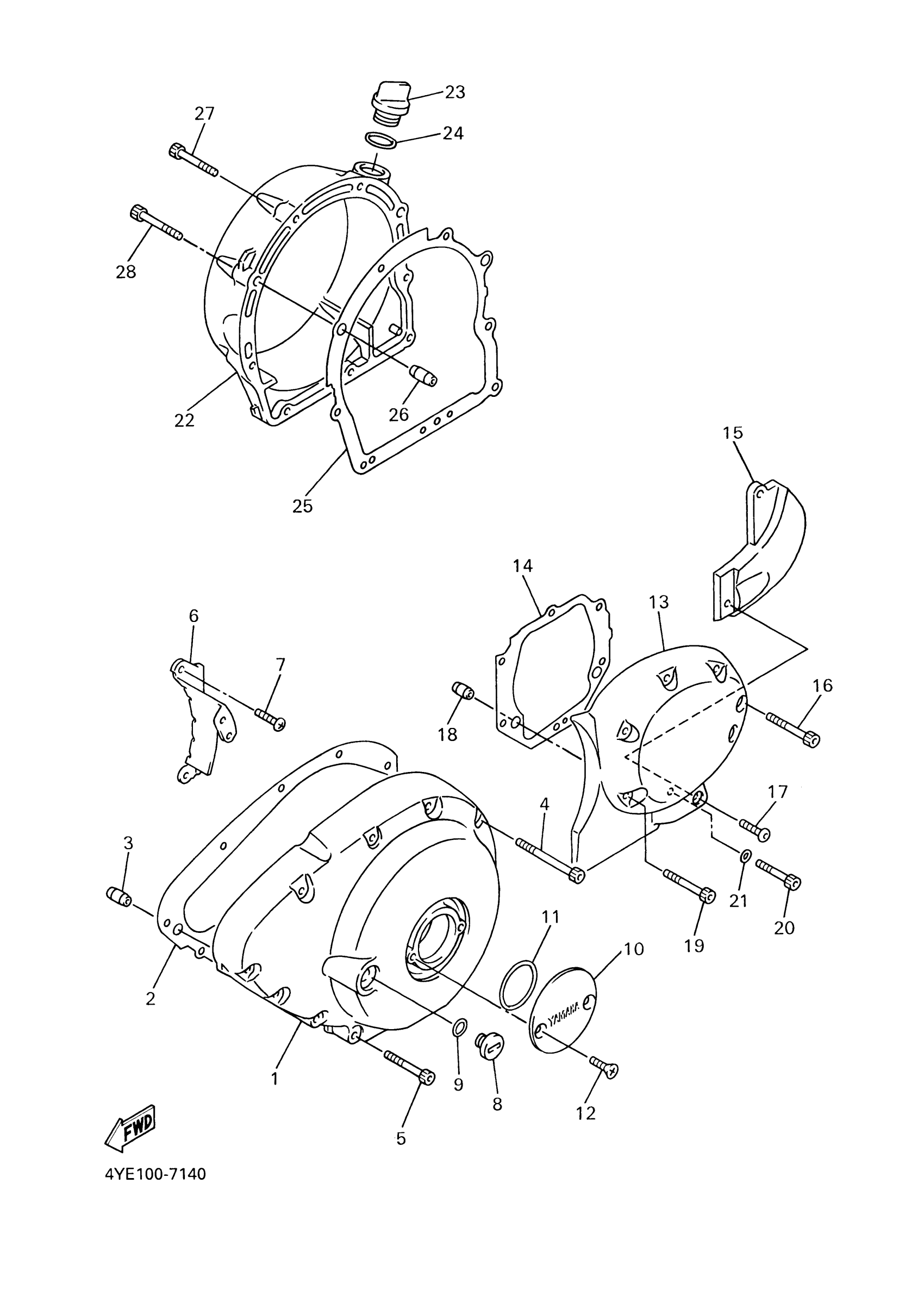

Yamaha XVZ13TFTC (ROYAL STAR VENTURE CA) 4XYX 2005 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

GASKET, CRANKCASE COVER 1

PIN, DOWEL(3VD)

BOLT, SOCKET

BOLT, SOCKET

PLATE

SCREW, PAN HEAD(3TJ)

PLUG, STRAIGHT SCREW (5H0)

O-RING (2H9)

COVER, CAP 2

O-RING (256)

SCREW, FLAT

COVER, CRANKCASE 2

GASKET, CRANKCASE COVER 2

COVER, CARBURATOR 2

BOLT,SOCKET HEAD

BOLT, BUTTON HEAD(4NK)

PIN, DOWEL(3VD)

BOLT, SOCKET

BOLT, SOCKET

GASKET 256113960000

COVER, CRANKCASE 3

PLUG, OIL

O-RING(1KT)

GASKET, CRANKCASE COVER 3

PIN, DOWEL(3VD)

BOLT,SOCKET HEAD

BOLT, SOCKET
