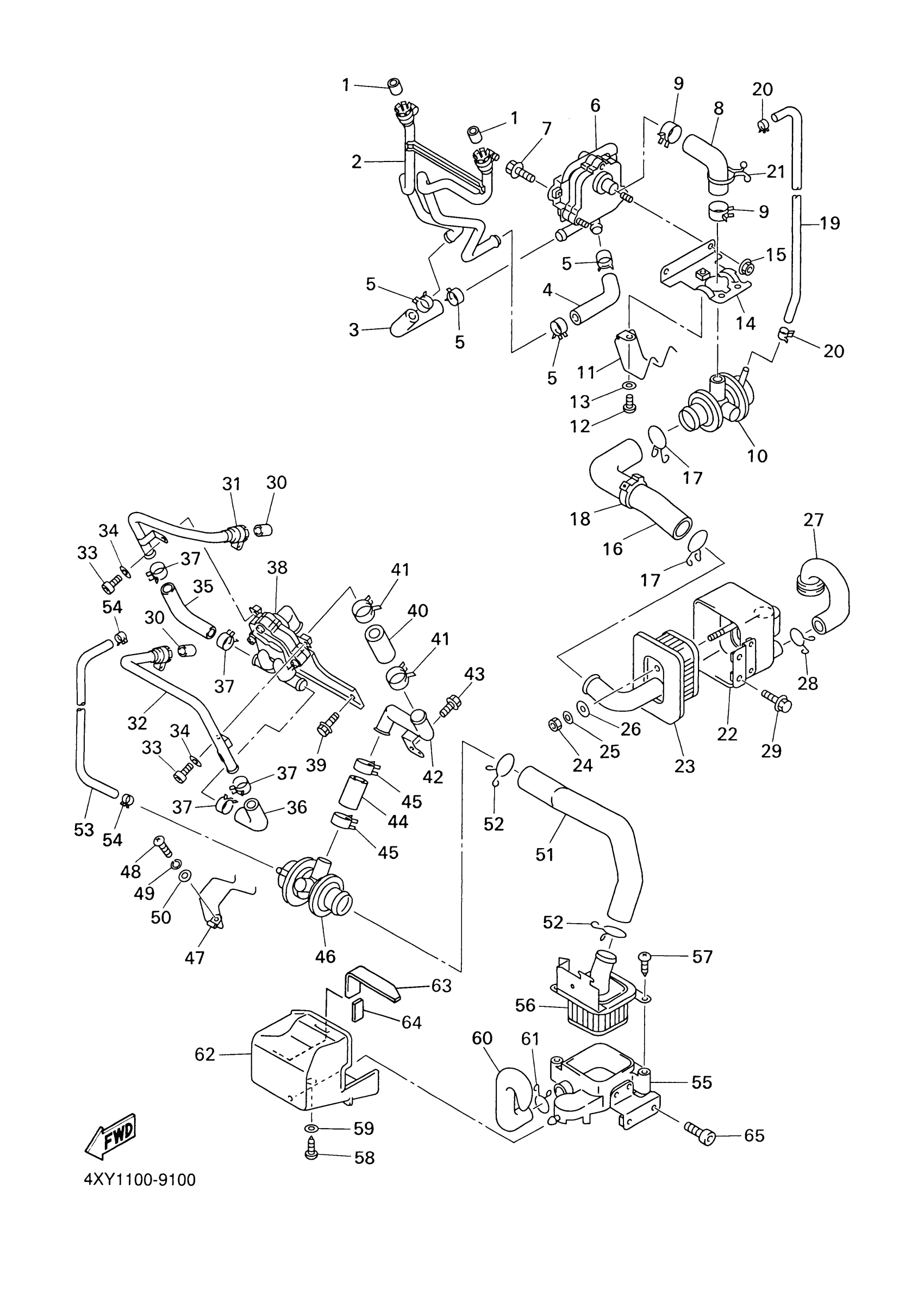

Yamaha XVZ13TFSZC (ROYAL STAR VENTURE S CA) 1BM2 2010 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

GASKET, MUFFLER

4KM-14714-01-00

$25.99

2

PIPE 2

4XY-14872-00-00

Unavailable

3

HOSE, BEND 1

4XY-14881-00-00

Unavailable

4

HOSE, BEND 1

4XY-14881-10-00

Unavailable

5

CLIP

90468-08104-00

$3.93

6

REED VALVE ASSY

4XY-14808-00-00

Unavailable

7

BOLT, FLANGE

95817-06012-00

$1.43

8

HOSE, BEND 2

4XY-14882-10-00

Unavailable

9

CLIP (4V3)

90467-19051-00

$2.34

10

AIR CUT VALVE ASS'Y

4XY-14840-00-00

Unavailable

11

CLAMP (1RV)

90462-20188-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

WASHER(6TA)

92907-06600-00

$2.72

14

BRACKET 2

4XY-14868-00-00

Unavailable

15

NUT, FLANGE(4MV)

95707-06500-00

$1.23

16

HOSE, BEND 2

4XY-14882-00-00

Unavailable

17

CLIP(8V0)

90467-24096-00

Unavailable

18

CLAMP(4KM)

90464-25217-00

Unavailable

19

HOSE (L985)

90445-086K4-00

Unavailable

20

CLIP(41W)

90467-08092-00

Unavailable

21

CLAMP

90464-25267-00

Unavailable

22

CASE, AIR CLEANER

4XY-14857-00-00

Unavailable

23

CAP, CASE

4XY-14858-00-00

Unavailable

24

NUT, HEXAGON

95317-05600-00

Unavailable

25

WASHER, PLAIN LARGE

92907-05200-00

Unavailable

26

WASHER, PLATE (463)

90202-05057-00

Unavailable

27

HOSE, BEND 3

4XY-14883-00-00

Unavailable

28

CLIP

90467-20M15-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

$1.43

30

GASKET, MUFFLER

4KM-14714-01-00

$25.99

31

PIPE 3

4XY-14873-00-00

Unavailable

32

PIPE 4

4XY-14874-00-00

Unavailable

33

BOLT,SOCKET

91317-06012-00

Unavailable

34

WASHER(6TA)

92907-06600-00

$2.72

35

HOSE, BEND 6

4XY-14886-00-00

Unavailable

36

HOSE, BEND 6

4XY-14886-00-00

Unavailable

37

CLIP

90468-08104-00

$3.93

38

REED VALVE ASSY

4XY-14808-10-00

Unavailable

39

BOLT, FLANGE

95817-06012-00

$1.43

40

HOSE, BEND 4 (L37.4)

4XY-14884-00-00

Unavailable

41

CLIP (4V3)

90467-19051-00

$2.34

42

PIPE 5

4XY-14875-00-00

Unavailable

43

BOLT, FLANGE

95817-06012-00

$1.43

44

HOSE, BEND 4 (L37.4)

4XY-14884-00-00

Unavailable

45

CLIP (4V3)

90467-19051-00

$2.34

46

AIR CUT VALVE ASSY

4XY-14840-10-00

Unavailable

47

CLAMP (1RV)

90462-20188-00

Unavailable

48

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

49

WASHER, SPRING

92907-06100-00

Unavailable

50

WASHER(6TA)

92907-06600-00

$2.72

51

HOSE, BEND 5

4XY-14885-00-00

Unavailable

52

CLIP(8V0)

90467-24096-00

Unavailable

53

HOSE (L770)

90445-090G9-00

Unavailable

54

CLIP(41W)

90467-08092-00

Unavailable

55

CASE, AIR CLEANER

4XY-14857-10-00

Unavailable

56

CAP, CASE

4XY-14858-10-00

Unavailable

57

SCREW, TAPPING(3JP)

97707-50612-00

Unavailable

58

SCREW, PAN TAP.2 SLIT

97707-50614-00

Unavailable

59

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

60

HOSE, BEND 7

4XY-14887-10-00

Unavailable

61

CLIP

90467-20M15-00

Unavailable

62

COVER, 1

4XY-1479H-00-00

Unavailable

63

SEAL, DUST

4XY-14829-00-00

Unavailable

64

SEAL, DUST

4XY-14855-00-00

Unavailable

65

BOLT,SOCKET

91317-06016-00

Unavailable
