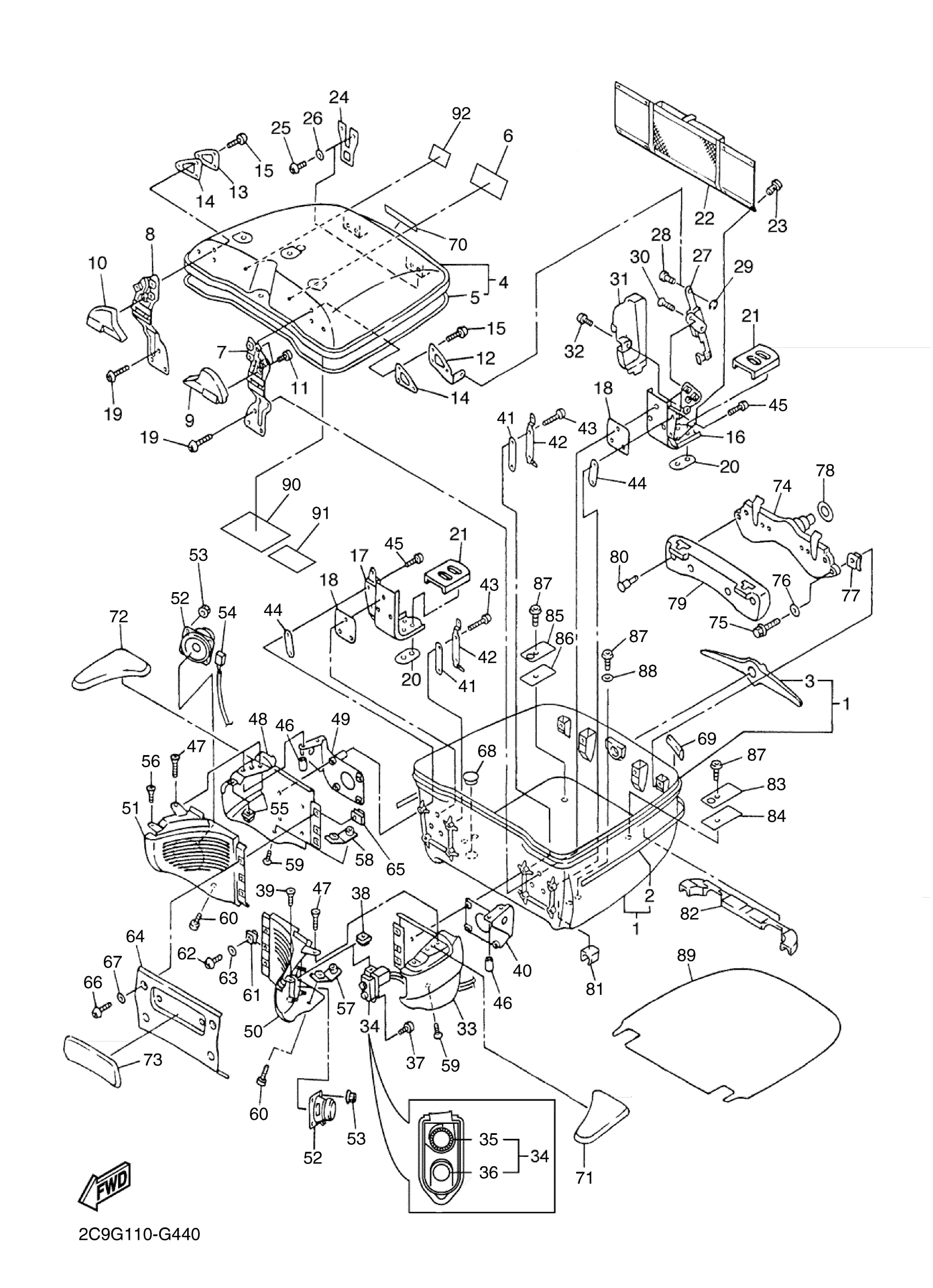

Yamaha XVZ13TFSXC (ROYAL STAR VENTURE S CA) 2C9L 2008 TRAVEL BAG Diagram
#
1
TRAVEL TRUNK LOWER SET
4XY-W2846-00-P3
Unavailable
2
. GRAPHIC SET, TRAVEL TRUNK
2C9-2840H-20-00
Unavailable
3
EMBLEM
4XY-28445-00-00
Unavailable
4
TRAVEL TRUNK UPPER SET
4XY-W2847-00-PB
Unavailable
5
SEAL 1
4XY-28428-00-00
Unavailable
6
PLATE, EPA (CALIFORNIA)
1D6-2176P-00-00
Unavailable
6
PLATE, EPA (NON CALIFORNIA)
1D6-2179W-20-00
Unavailable
7
HINGE 2
4XY-2845E-01-00
Unavailable
8
HINGE 4
4XY-2849E-01-00
Unavailable
9
COVER, HINGE 1
4XY-2846K-00-PB
Unavailable
10
COVER, HINGE 2 (DARK BLUISH GRAY METALLIC 8)
4XY-2846L-00-PB
Unavailable
12
PLATE 2
4XY-28487-00-00
Unavailable
13
PLATE 3
4XY-28497-00-00
Unavailable
14
PLATE, RUBBER 3
4XY-28485-00-00
Unavailable
15
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
16
BRACKET 5
4XY-28486-01-00
Unavailable
17
BRACKET 6
4XY-28496-01-00
Unavailable
18
PLATE, RUBBER 2
4XY-28484-00-00
Unavailable
19
BOLT, BUTTON HEAD
92017-05020-00
Unavailable
20
PLATE, RUBBER 1
4XY-28483-00-00
Unavailable
21
SEAT 4
4XY-2848M-00-00
Unavailable
22
SEAT 3
4XY-2848L-00-00
Unavailable
23
RIVET(81E)
90269-05055-00
Unavailable
24
HOOK
4XY-28488-00-00
Unavailable
25
BOLT, BUTTON HEAD
92017-05008-00
Unavailable
26
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
27
STOPPER, OPEN
4XY-2845L-01-00
Unavailable
28
PIN, STOPPER
4XY-2842L-00-00
Unavailable
29
CIRCLIP (EU0)
99080-04600-00
Unavailable
30
SCREW, FLAT
98707-04010-00
Unavailable
31
COVER ASSY
4XY-2843F-01-00
Unavailable
32
BOLT, BUTTON
92017-05010-00
Unavailable
33
BASE, REMOCON. (DARK BLUISH GRAY METALLIC 8)
4XY-8816E-01-PB
Unavailable
34
REMOTE CONTROL 1
4XY-88169-01-00
Unavailable
35
KNOB.1
4XY-88137-00-00
Unavailable
36
BUTTON
4XY-88157-00-00
Unavailable
38
NUT, SPRING
90183-051A0-00
Unavailable
39
SCREW, FLAT
98707-05014-00
Unavailable
40
BRACKET 1
4XY-28426-00-00
Unavailable
41
PLATE, RUBBER 8
4XY-2848J-00-00
Unavailable
42
PLATE, BOTTOM
4XY-2841R-00-00
Unavailable
43
BOLT, BUTTON
92017-06030-00
Unavailable
44
PLATE, RUBBER 7
4XY-2847J-00-00
Unavailable
45
BOLT, BUTTON HEAD
92017-05014-00
Unavailable
46
NUT(1KT)
90179-05523-00
Unavailable
47
SCREW, FLAT
98707-05020-00
Unavailable
48
BODY (DARK BLUISH GRAY METALLIC 8)
4XY-2841L-01-PB
Unavailable
49
BRACKET 2
4XY-28436-00-00
Unavailable
50
GRILLE, SPEAKER 1 (DARK BLUISH GRAY METALLIC 8)
4XY-88165-01-PB
Unavailable
51
GRILLE, SPEAKER 2
4XY-88175-01-PB
Unavailable
52
SPEAKER 1
4XY-88161-00-00
Unavailable
53
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
54
CORD
4XY-88176-00-00
Unavailable
55
NUT, SPRING
90183-051A0-00
Unavailable
56
SCREW, FLAT
98707-05016-00
Unavailable
57
PLATE,4
4XY-2846H-01-00
Unavailable
58
PLATE
4XY-28417-01-00
Unavailable
59
SCREW, FLAT
98707-05012-00
Unavailable
60
SCREW, BINDING
98907-05012-00
Unavailable
61
NUT, SPRING
90183-051A0-00
Unavailable
62
SCREW, PAN
98517-05012-00
Unavailable
63
WASHER(1RW)
92907-05600-00
Unavailable
64
COVER 4 (DARK BLUISH GRAY METALLIC 8)
4XY-2844J-00-PB
Unavailable
65
NUT, SPRING
90183-051A0-00
Unavailable
66
BOLT, BUTTON HEAD
92014-05014-00
Unavailable
67
. WASHER, PLATE
90202-05088-00
Unavailable
68
PLUG
90338-24260-00
Unavailable
69
SEAL
1JK-21268-00-00
Unavailable
70
EMBLEM 1
3LS-21781-10-00
Unavailable
71
SEAT 5
4XY-2848N-00-00
Unavailable
72
SEAT 6
4XY-2848P-00-00
Unavailable
73
SEAT 7
4XY-2848R-00-00
Unavailable
74
LOCK ASSY 1
4XY-W2841-00-00
Unavailable
75
BOLT(3JK)
97027-05020-00
Unavailable
76
WASHER(1RW)
92907-05600-00
Unavailable
77
NUT, SPRING
90183-051A0-00
Unavailable
78
SEAL
4KN-2475M-00-00
Unavailable
79
COVER LOCK ASSY 2
4XY-28493-00-00
Unavailable
80
RIVET
90269-06001-00
Unavailable
81
DAMPER 10
4XY-2847R-00-00
Unavailable
82
DAMPER 8
4XY-2847N-00-00
Unavailable
83
PLATE 7
4XY-2846P-00-00
Unavailable
84
PLATE, RUBBER 9
4XY-2849J-00-00
Unavailable
85
PLATE 8
4XY-2846R-00-00
Unavailable
86
PLATE, RUBBER 11
4XY-2847T-00-00
Unavailable
87
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
88
WASHER(6TA)
92907-06600-00
Unavailable
89
SEAT
4XY-2848H-00-00
Unavailable
90
LABEL, CAUTION
4XY-28446-02-00
Unavailable
91
LABEL, TIRE
4NK-21668-A0-00
Unavailable
92
PLATE, ROUTING 2
4LE-21686-A0-00
Unavailable
