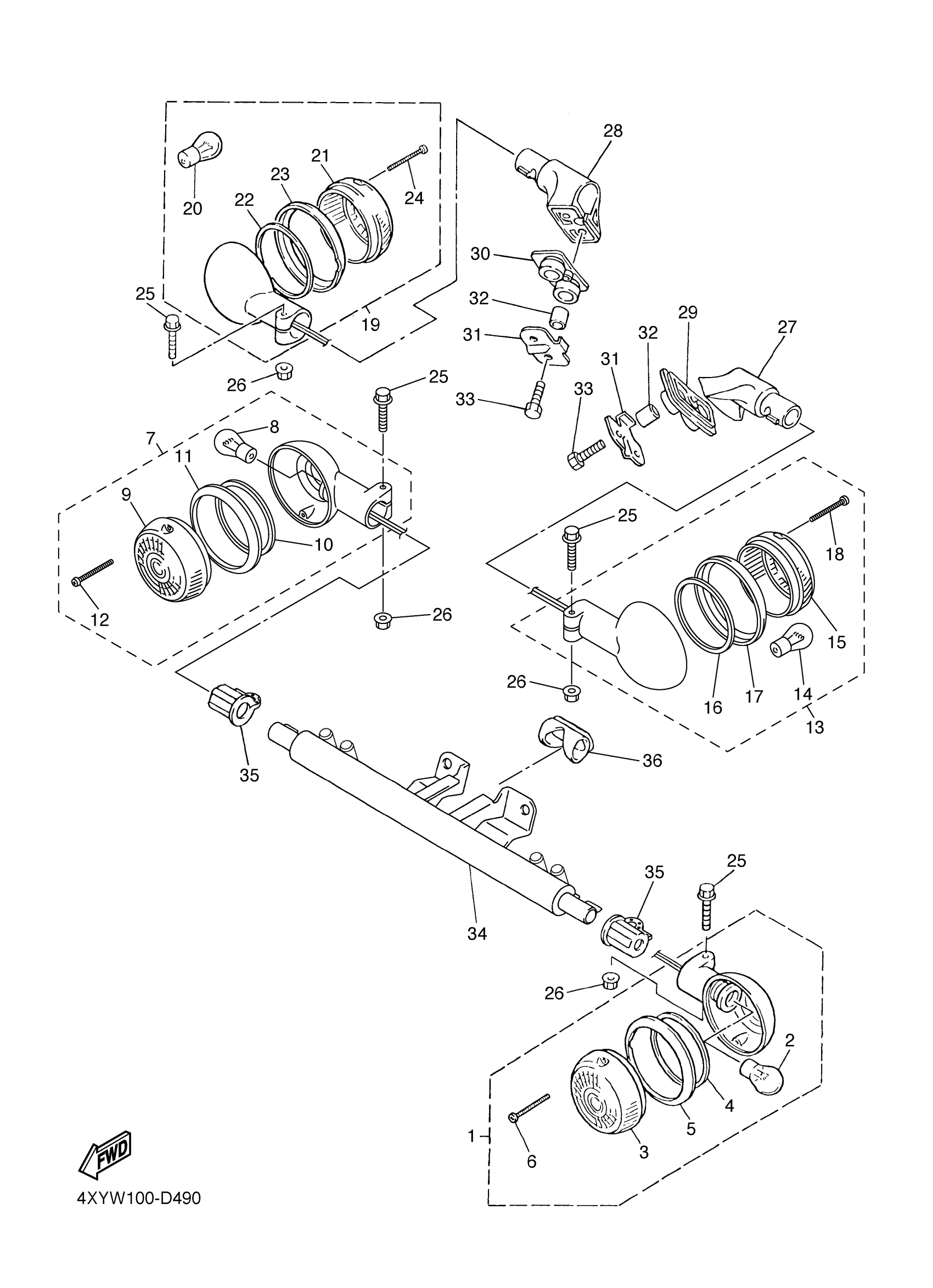

Yamaha XVZ13TFSXC (ROYAL STAR VENTURE S CA) 2C9L 2008 FLASHER LIGHT Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

5YS-83310-01-00

$80.55

2

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$12.22

3

LENS, FLASHER

5VN-83312-10-00

$11.88

4

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

5

LENS, RIM

1D6-83363-00-00

$21.88

6

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

7

FRONT FLASHER LIGHT ASSY 2

5YS-83320-01-00

$79.79

8

BULB, FLASHER (12V-23/8W)

5VN-83311-00-00

$12.22

9

LENS, FLASHER

5VN-83312-20-00

$14.70

10

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

11

LENS, RIM

1D6-83363-10-00

$21.82

12

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

13

REAR FLASHER LIGHT ASSY 1

1D6-83330-01-00

$102.47

14

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$11.47

15

LENS, FLASHER

1D6-83312-20-00

Unavailable

16

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

17

LENS, RIM

1D6-83363-10-00

$21.82

18

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

19

REAR FLASHER LIGHT ASSY 2

1D6-83340-01-00

Unavailable

20

BULB, FLASHER (12V-21W)

5VN-83331-00-00

$11.47

21

LENS, FLASHER

1D6-83312-10-00

Unavailable

22

GASKET, FLASHER LENS

1D6-83313-00-00

$5.96

23

LENS, RIM

1D6-83363-00-00

$21.88

24

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

25

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

26

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

27

STAY, FLASHER 1

4YE-83318-00-00

Unavailable

28

STAY, FLASHER 2

4YE-83328-00-00

Unavailable

29

BASE, FLASHER 1

4YE-83314-00-00

Unavailable

30

BASE, FLASHER 2

4YE-83324-00-00

Unavailable

31

WASHER, SPECIAL 8

4YE-8334F-00-00

Unavailable

32

COLLAR

90387-06113-00

Unavailable

33

BOLT, HEXAGON

97017-06020-00

Unavailable

34

STAY, 8

4XY-2317V-00-00

Unavailable

35

DAMPER, FLASHER 1

5VN-83321-00-00

Unavailable

36

PLUG, BLIND

4NK-83345-00-00

Unavailable
