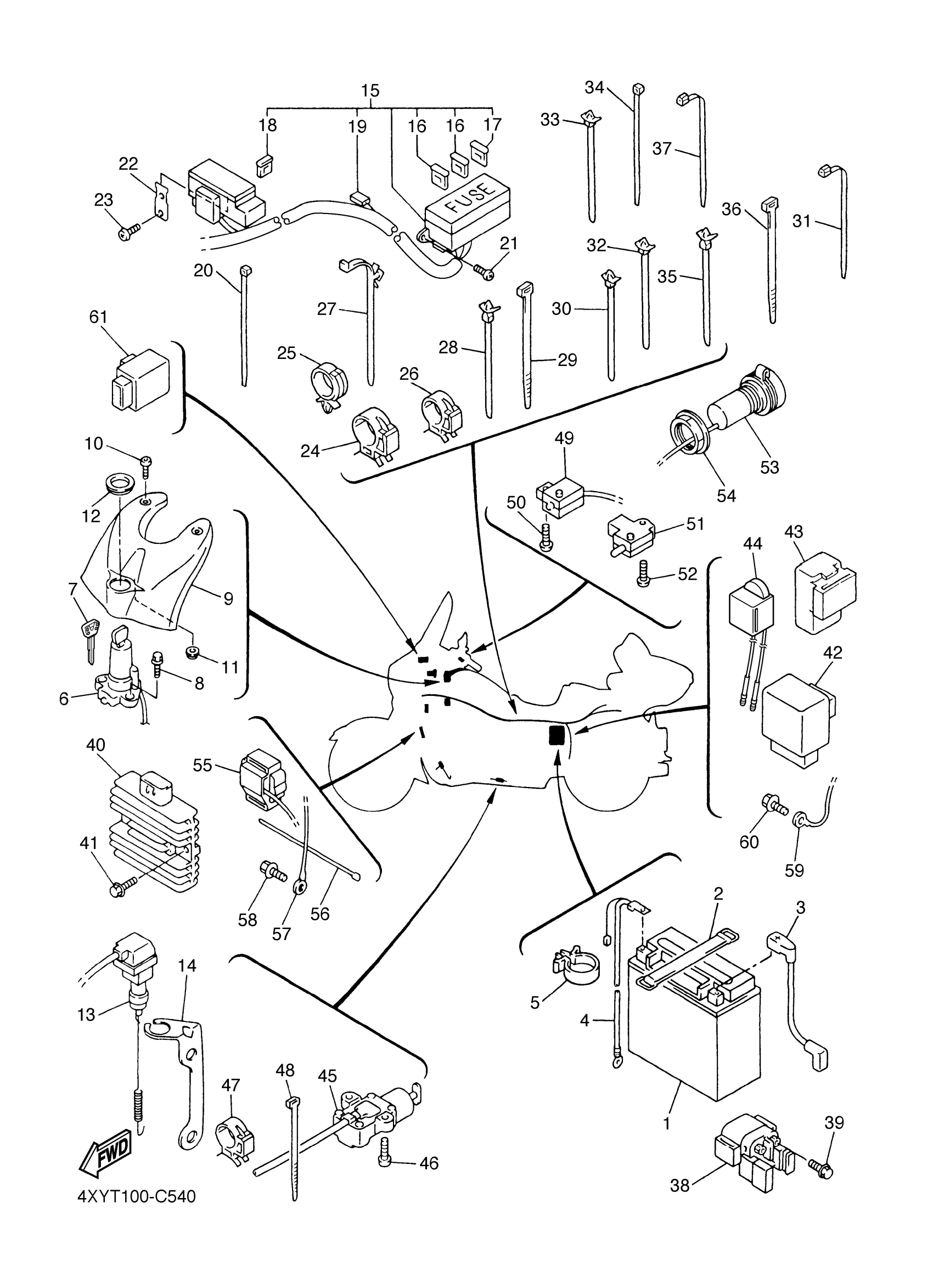

Yamaha XVZ13TFSC (ROYAL STAR VENTURE CA) 4XYU 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YUASA YTX20L-BS)

BTY-YXT20-LB-S0

Unavailable

2

BAND,BATTERY

7H3-82131-00-00

$17.49

3

WIRE, PLUS LEAD

4NK-82115-00-00

$38.99

4

WIRE, MINUS LEAD

1D6-82116-00-00

Unavailable

5

CLAMP(3SK)

90464-13133-00

$8.49

6

MAIN SWITCH STEERING LOCK

4XY-82501-02-00

Unavailable

7

BLANK KEY

4BH-82511-09-00

$30.99

8

BOLT

90109-08196-00

$8.49

9

COVER, SWITCH

4XY-8291G-00-00

Unavailable

10

SCREW(1XL)

90149-06264-00

$7.49

11

GROMMET(4DN)

90480-01558-00

$4.19

12

GROMMET

4XY-82545-01-00

Unavailable

13

STOP SWITCH ASSY

4XY-82530-01-00

$73.99

14

STAY, STOP SWITCH

4XY-82539-00-00

Unavailable

15

WIRE HARNESS ASSY

4XY-82590-00-00

Unavailable

16

FUSE (10A)

42X-82151-00-00

Unavailable

17

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

18

FUSE

1NL-82151-00-00

Unavailable

19

DIODE ASSY

3WP-81980-00-00

Unavailable

20

CLAMP

90464-16061-00

Unavailable

21

SCREW, BINDING

98907-06012-00

Unavailable

22

STAY, RELAY

4XY-81953-00-00

Unavailable

23

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

24

CLAMP(4KM)

90464-25217-00

Unavailable

25

CLAMP(M80)

90464-07209-00

Unavailable

26

CLAMP(4GY)

90464-20191-00

Unavailable

27

CLAMP(4KJ)

90464-20213-00

Unavailable

28

CLAMP(2TV)

90464-10112-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

CLAMP(2TV)

90464-10112-00

Unavailable

31

CLAMP(4FM)

90464-15195-00

Unavailable

32

CLAMP(2TV)

90464-10112-00

Unavailable

33

CLAMP(2TV)

90464-10112-00

Unavailable

34

CLAMP

90464-16061-00

Unavailable

35

CLAMP(2TV)

90464-10112-00

Unavailable

36

BAND

1UA-82591-00-00

Unavailable

37

CLAMP

90464-13077-00

Unavailable

38

STARTER RELAY ASSY (RC19-005)

4BH-81940-02-00

Unavailable

39

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

40

RECTIFIER & REGULATOR ASSY

4XY-81960-00-00

Unavailable

41

BOLT, FLANGE

95817-06020-00

Unavailable

42

RELAY ASSY

5EA-81950-01-00

Unavailable

43

RELAY ASSY (1UY-92)

1UY-81950-92-00

Unavailable

44

THERMO SWITCH ASSY

5FU-82560-20-00

Unavailable

45

SWITCH, SIDE STAND

3LD-82566-51-00

Unavailable

46

SCREW, PAN HEAD

98507-05014-00

Unavailable

47

CLAMP(4GY)

90464-10190-00

Unavailable

48

BAND

1UA-82591-00-00

Unavailable

49

FRONT STOP SWITCH ASSY

4XY-83980-10-00

Unavailable

50

SCREW, BINDING

98907-04014-00

Unavailable

51

SWITCH

4XY-82917-00-00

Unavailable

52

SCREW, BINDING

98907-04025-00

Unavailable

53

TERMINAL COMP.

4XY-8254B-00-00

Unavailable

54

NUT

4XY-82114-00-00

Unavailable

55

EMERGENCY STOP SWITCH ASSY

4BH-82576-01-00

Unavailable

56

CLAMP

90464-16061-00

Unavailable

57

WIRE, EARTH LEAD

4XY-8232Y-00-00

Unavailable

58

BOLT, FLANGE

95817-06010-00

Unavailable

59

WIRE, EARTH LEAD

4XY-82519-01-00

Unavailable

60

BOLT, FLANGE

95817-06010-00

Unavailable

61

RELAY ASSY (4XY-00)

4XY-81950-00-00

Unavailable
