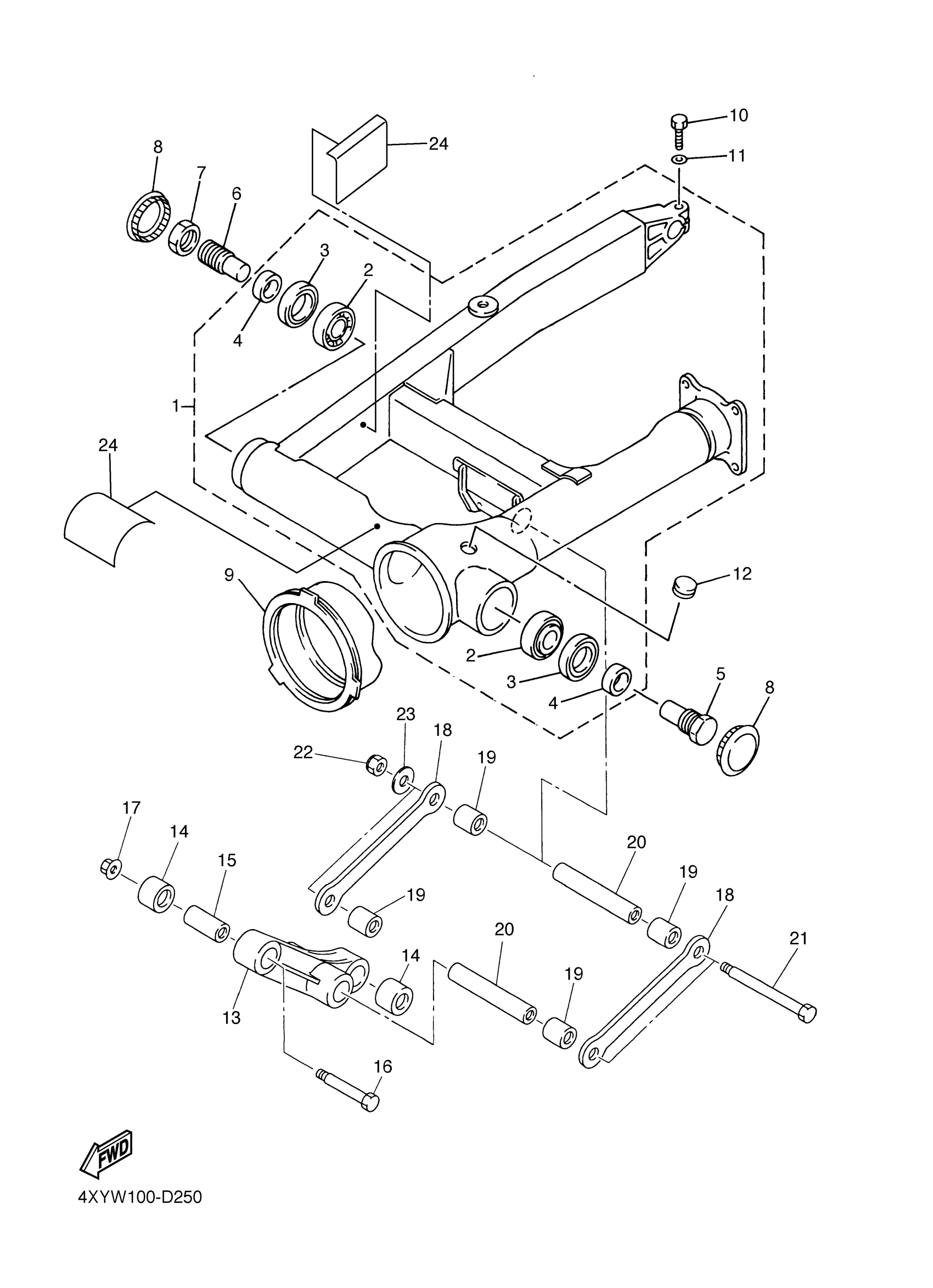

Yamaha XVZ13TFSBCB (ROYAL STAR VENTURE S CA) 1BM8 2012 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
4XY-W2211-00-35
Unavailable
2
BEARING (26H)
93332-00051-00
Unavailable
2
BEARING (26H)
93332-00051-00
Unavailable
5
SHAFT, PIVOT 2
4NK-2214H-00-00
Unavailable
6
SHAFT, PIVOT
4NK-22141-09-00
Unavailable
7
NUT
26H-22143-00-00
Unavailable
9
BOOT, RUBBER
26H-22189-00-00
Unavailable
11
.. WASHER, PLATE
92990-08600-00
Unavailable
12
PLUG (4X7)
90338-20113-00
Unavailable
13
ARM, RELAY
4XY-2217A-00-00
Unavailable
15
COLLAR (34L)
90387-122J6-00
Unavailable
16
BOLT(2AL)
90109-104E4-00
Unavailable
17
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
18
ARM 1
4XY-2217M-00-00
Unavailable
19
BEARING, CYLINDRICAL(2GH)
93317-41761-00
Unavailable
20
COLLAR(2GH)
90387-126T1-00
Unavailable
21
BOLT
90101-12027-00
Unavailable
22
NUT, SELF-LOCKING
90185-12011-00
Unavailable
23
WASHER, PLATE
90201-12045-00
Unavailable
24
SEAL 1
1D6-22358-00-00
Unavailable
