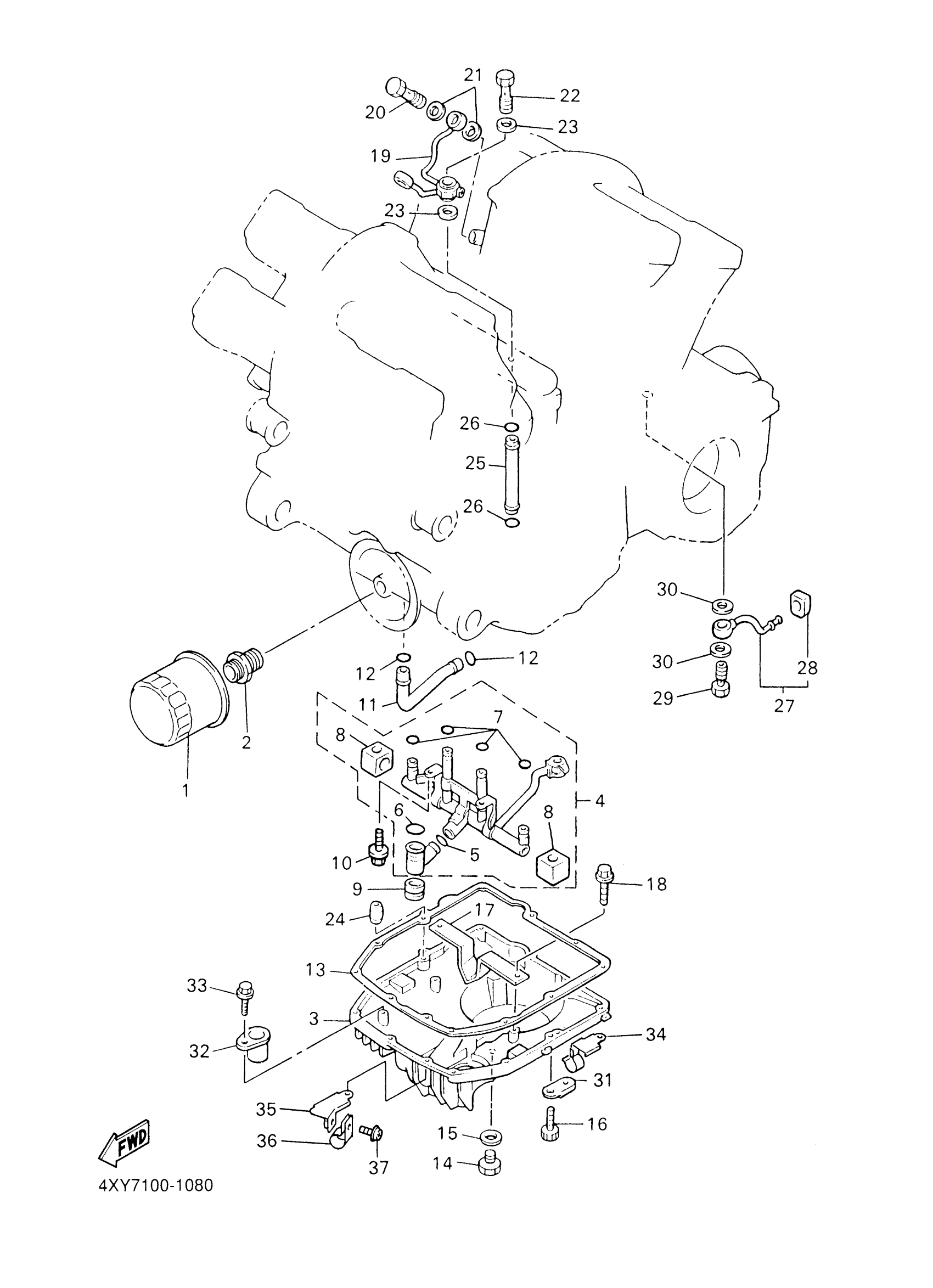

Yamaha XVZ13TFSBCB (ROYAL STAR VENTURE S CA) 1BM8 2012 OIL CLEANER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

5GH-13440-72-00

$16.49

2

BOLT, UNION

90401-20007-00

Unavailable

3

COVER, STRAINER

26H-13417-01-00

Unavailable

4

DELIVERY PIPE ASS'Y

26H-Y1319-10-00

Unavailable

5

O-RING (2H7)

93210-13361-00

$5.60

6

O-RING (26H)

93210-14637-00

$7.49

7

O-RING(26H)

93210-06667-00

$7.49

8

GROMMET

26H-15365-00-00

$8.99

9

GROMMET

26H-15366-01-00

Unavailable

10

BOLT, FLANGE

95817-06012-00

$1.43

11

PIPE, DELIVERY 1

26H-13161-00-00

$18.49

12

O-RING (26H)

93210-14579-00

$7.49

13

GASKET, STRAINER COVER

3JP-13414-01-00

$20.99

14

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

15

GASKET

214-11198-01-00

$3.17

16

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

17

PLATE, BAFFLE LOWER

26H-13337-01-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

$1.43

19

PIPE, DELIVERY 3

26H-13181-03-00

Unavailable

20

BOLT, UNION

90401-08006-00

Unavailable

21

GASKET

90430-08119-00

Unavailable

22

BOLT, UNION(1FK)

90401-10108-00

Unavailable

23

WASHER PLATE 341839090000

90201-10128-00

Unavailable

24

PIN, DOWEL(3XW)

91808-16023-00

Unavailable

25

PIPE, DELIVERY 2

26H-13171-00-00

Unavailable

26

O-RING(26H)

93210-06667-00

$7.49

27

PIPE, OIL 1

26H-13416-01-00

Unavailable

28

GASKET

26H-13476-00-00

Unavailable

29

BOLT, UNION (26H)

90401-08093-00

Unavailable

30

GASKET

90430-08119-00

Unavailable

31

CLAMP(4MX)

90465-06376-00

Unavailable

32

STAY

1FK-13151-00-00

Unavailable

33

BOLT, FLANGE

95817-06012-00

$1.43

34

CLAMP(4NK)

90462-10226-00

Unavailable

35

STAY

4NK-13782-00-00

Unavailable

36

CLAMP

90464-15014-00

Unavailable

37

SCREW, WITH WASHER(2JA)

90159-05155-00

Unavailable
