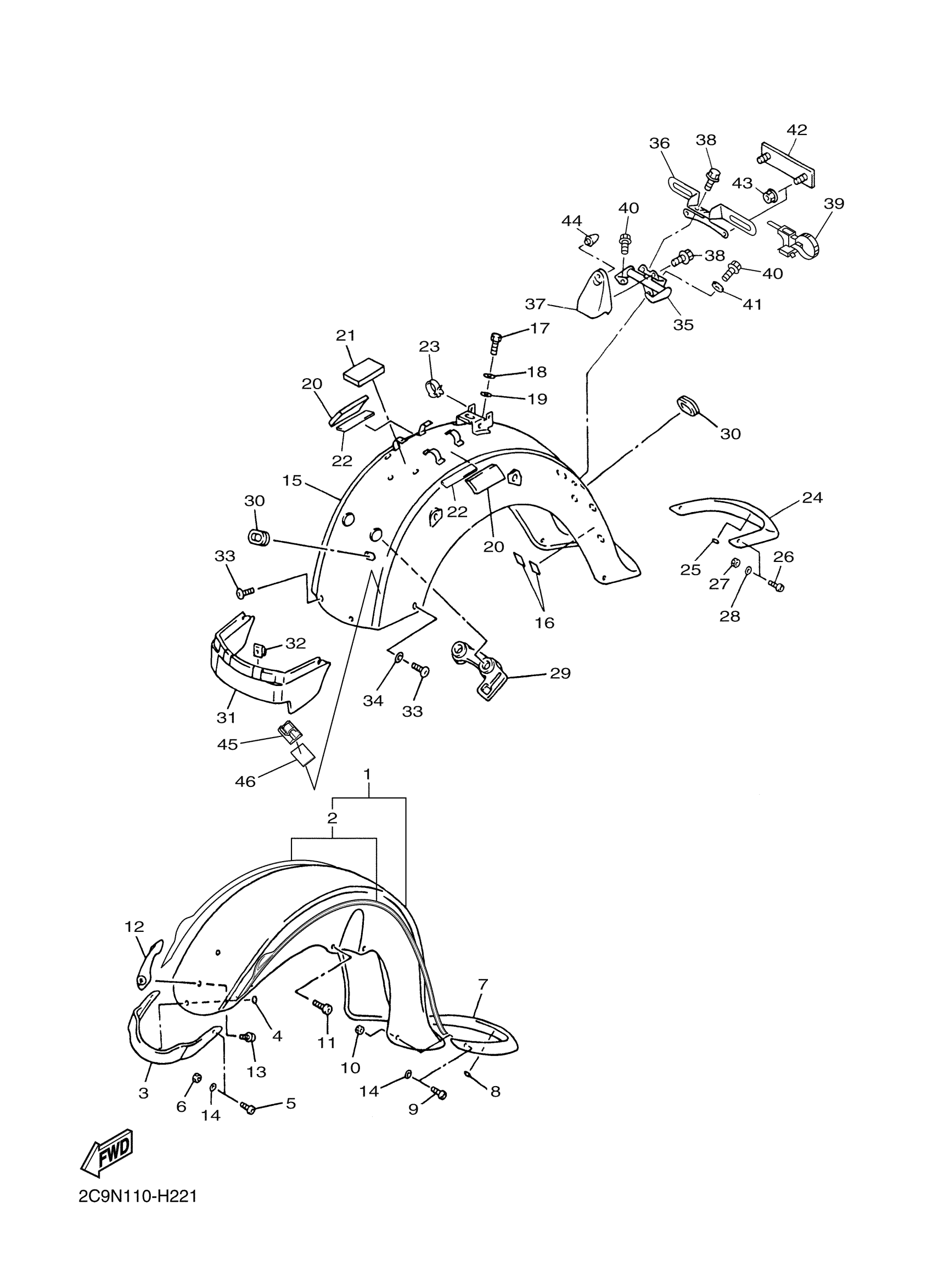

Yamaha XVZ13TFSBCB (ROYAL STAR VENTURE S CA) 1BM8 2012 FENDER Diagram
#
1
FRONT FENDER ASSY
4NL-Y2150-21-P5
Unavailable
2
GRAPHIC SET, FRONT FENDER
2C9-21570-60-00
Unavailable
3
FLAP 2
4NL-21561-11-00
Unavailable
7
FLAP, FRONT FENDER
4NL-21521-10-00
Unavailable
12
MASCOT
4NL-21577-10-00
Unavailable
15
REAR FENDER COMP.
4XY-21610-10-PD
Unavailable
16
PROTECTOR
3MA-27491-00-00
Unavailable
17
BOLT, HEXAGON
97017-08016-00
Unavailable
18
WASHER(6TC)
92907-08200-00
Unavailable
19
WASHER, PLATE(8BV)
90202-09227-00
Unavailable
20
DAMPER 2
4XY-21639-00-00
Unavailable
21
DAMPER
4XY-21649-00-00
Unavailable
22
DAMPER 1
4XY-21638-00-00
Unavailable
23
CLAMP(4TR)
90464-18246-00
Unavailable
24
FLAP
4NL-21621-10-00
Unavailable
29
DAMPER
4NK-21649-00-00
Unavailable
30
GROMMET (438)
90480-15061-00
Unavailable
31
FLAP
4NK-21621-00-PH
Unavailable
32
NUT, SPRING(4ES)
90183-06069-00
Unavailable
33
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
34
WASHER, PLATE
90202-06170-00
Unavailable
35
STAY, 9
4XY-2317W-00-00
Unavailable
36
BRACKET, LICENSE
5BN-84751-00-00
Unavailable
37
BRACKET
1D6-84703-01-00
Unavailable
38
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
39
CLAMP
90464-25002-00
Unavailable
40
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
41
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
42
REAR REFLECTOR ASSY
1FK-85130-00-00
Unavailable
43
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
44
DAMPER 2
42U-21639-00-00
Unavailable
45
CLAMP
90464-07002-00
Unavailable
46
SEAL
4XY-21669-00-00
Unavailable
