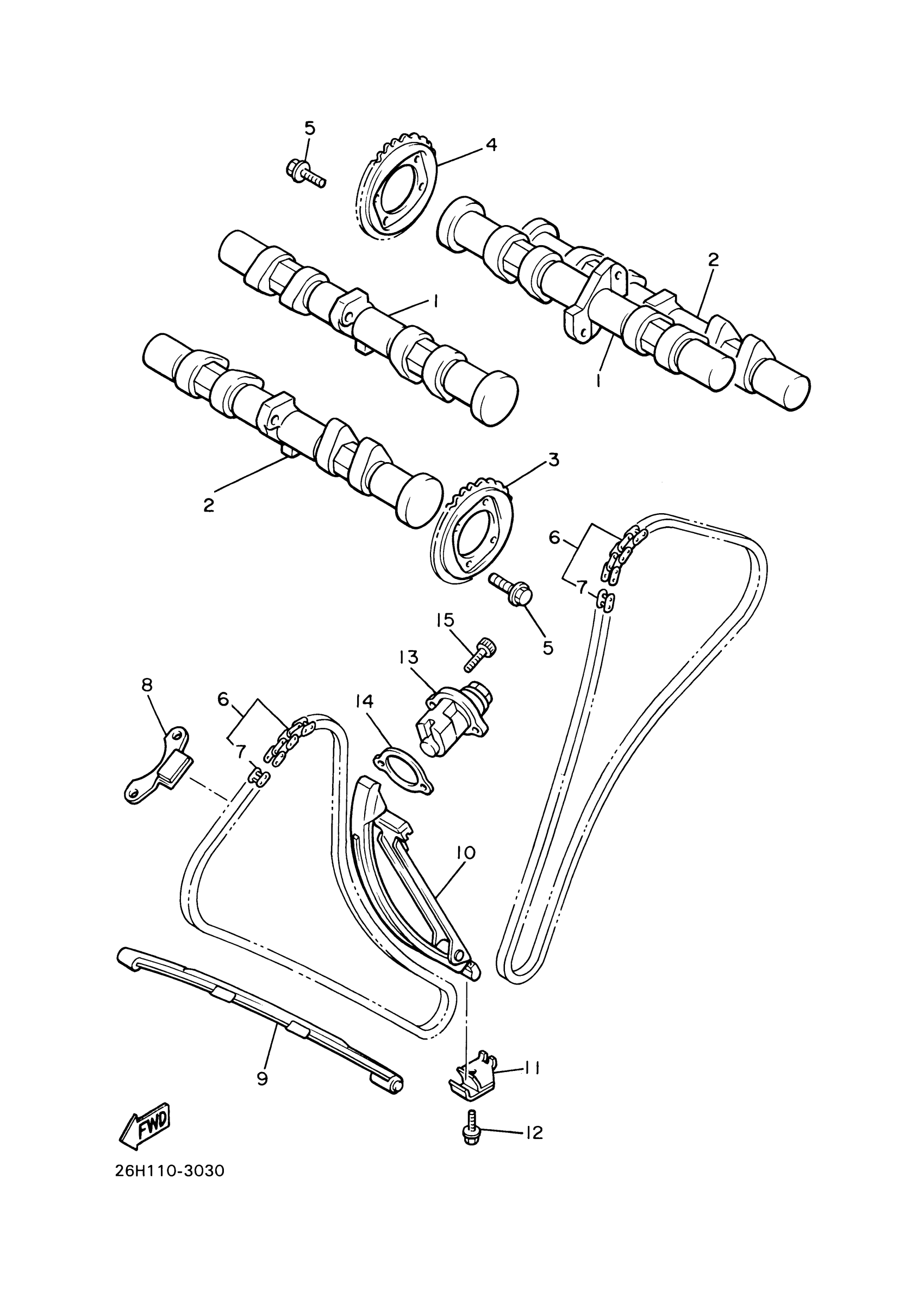

Yamaha XVZ13TFSBCB (ROYAL STAR VENTURE S CA) 1BM8 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT 1

4XY-12171-00-00

Unavailable

2

CAMSHAFT 2

4XY-12181-00-00

$259.99

3

SPROCKET, CAM CHAIN

4XY-12177-00-00

Unavailable

4

SPROCKET, CAM CHAIN

4XY-12176-00-00

Unavailable

5

BOLT, FLANGE

90105-07004-00

$5.60

6

CHAIN

9Y58A-81117-00

Unavailable

7

JOINT, CHAIN (583)

94600-02001-00

$7.99

8

GUIDE, STOPPER 2

26H-12241-00-00

Unavailable

9

DAMPER, CHAIN 1

26H-12251-00-00

Unavailable

10

DAMPER, CHAIN 2

26H-12252-00-00

Unavailable

11

PLATE, GUIDE STOPPER 1

26H-12233-00-00

Unavailable

12

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

13

TENSIONER ASSY

26H-12210-03-00

$219.99

14

GASKET, TENSIONER CASE

3JP-12213-01-00

$7.99

15

BOLT,SOCKET

91317-06020-00

Unavailable
