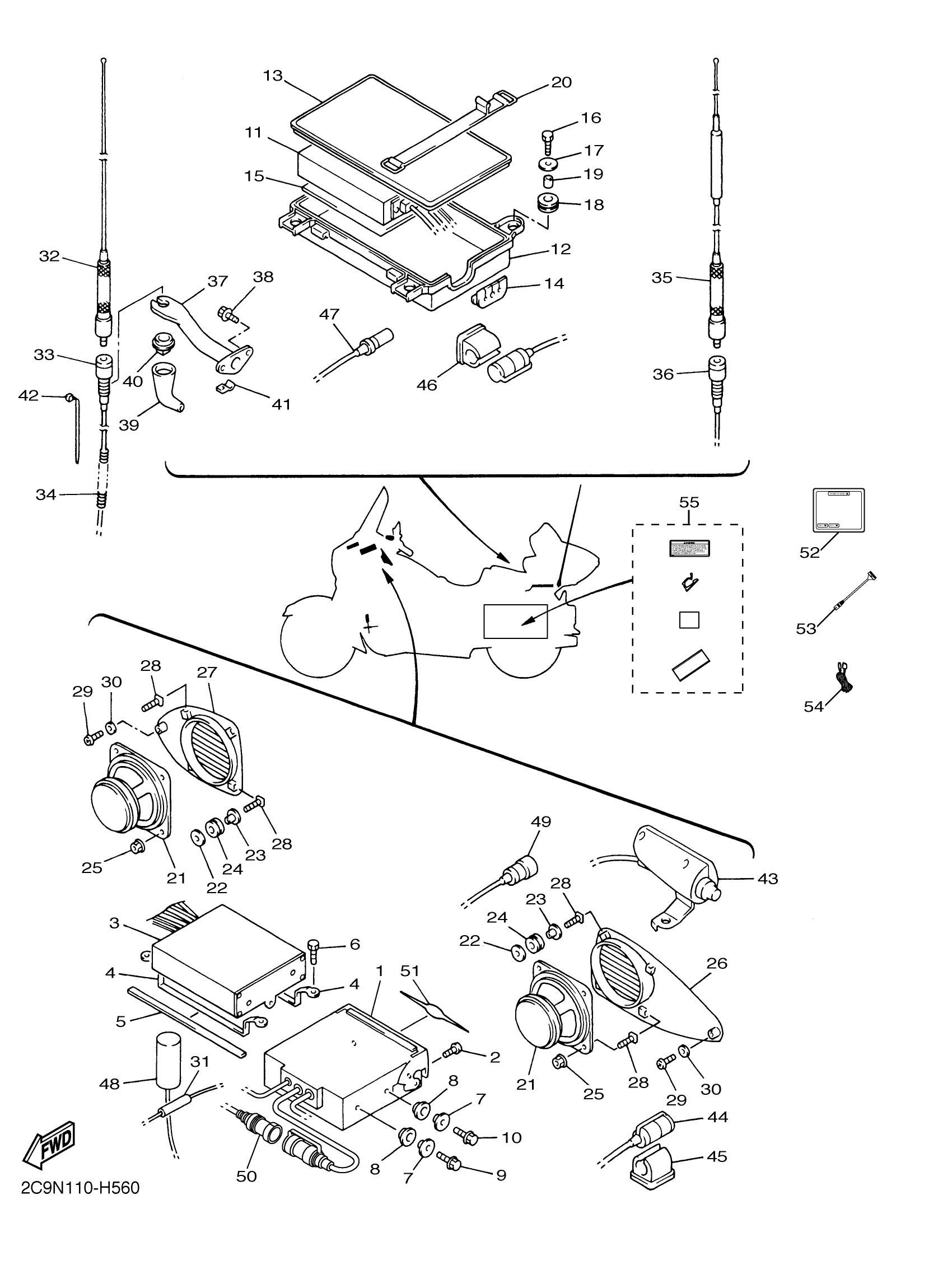

Yamaha XVZ13TFSBCB (ROYAL STAR VENTURE S CA) 1BM8 2012 AUDIO EQUIPMENT 1 Diagram

#

Description
Price

1

CASSETTE DECK ASSY

4XY-88150-00-PA

Unavailable

2

SCREW, PAN HEAD

98517-04012-00

$3.88

3

AMP. POWER

4XY-88132-01-00

Unavailable

4

BRACKET, RADIO

4XY-88114-00-00

Unavailable

5

DAMPER

4XY-88149-00-00

$1.46

6

BOLT

97027-05010-00

Unavailable

7

COLLAR (838-84757-00)

90387-06024-00

$11.49

8

GROMMET(1FN)

90480-14429-00

$7.49

9

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

10

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

11

BLACK BOX, CB

4XY-88182-10-00

Unavailable

12

COVER 1

4XY-8818B-00-00

Unavailable

13

COVER 2

4XY-8818C-00-00

Unavailable

14

GASKET, CB

4XY-8818E-00-00

Unavailable

15

SEAT 1

4XY-8818D-00-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

GROMMET(1UF)

90480-14450-00

Unavailable

19

COLLAR

90387-07020-00

Unavailable

20

BAND, BATTERY

4J2-82131-01-00

Unavailable

21

SPEAKER 1

4XY-88161-00-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

23

COLLAR (3L6)

90387-06737-00

Unavailable

24

GROMMET (1E5)

90480-13163-00

Unavailable

25

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

26

GRILLE, SPEAKER 1

4XY-88163-00-PA

Unavailable

27

GRILLE, SPEAKER 2

4XY-88173-00-PA

Unavailable

28

BOLT

4XY-28333-00-00

Unavailable

29

SCREW, TRUSS TAP.

97707-40012-00

Unavailable

30

WASHER(JF2)

92907-04600-00

Unavailable

31

FILTER, NOISE

4XY-88188-00-00

Unavailable

32

POLE, ANTENNA

4XY-88141-10-00

Unavailable

33

CABLE 1

4XY-88146-10-00

Unavailable

34

TUBE

4XY-82139-00-00

Unavailable

35

POLE, ANTENNA

4XY-88143-10-00

Unavailable

36

CABLE 2

4XY-88147-10-00

Unavailable

37

BRACKET, ANTENNA

4XY-88144-01-00

Unavailable

38

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

39

COVER

4XY-88145-00-00

Unavailable

40

SPACER

4XY-8814A-00-00

Unavailable

41

CLAMP(4GY)

90464-05188-00

Unavailable

42

CLAMP(4FM)

90464-15195-00

Unavailable

43

REMOTE CONTROL 1

4XY-88168-00-00

Unavailable

44

CORD, HEAD SET 1

4XY-88196-00-00

Unavailable

45

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

46

HOLDER, CONNECTOR

4XY-88195-01-00

Unavailable

47

CORD, CB

4XY-88186-01-00

Unavailable

48

CONDENSER, SMOOTHING

1NL-81965-01-00

Unavailable

49

CORD, EXTENSION

4XY-88192-01-00

Unavailable

50

CABLE, INTERFACE

STR-CDCHG-11-00

Unavailable

51

EMBLEM 3D

4XY-2839B-10-00

Unavailable

52

AUDIO SET KIT - IPOD

1BM-H81C0-V2-00

Unavailable

53

WIRE HARNESS ASSY 1

1BM-H259L-V2-00

Unavailable

54

CABLE 8-PIN DIN TO 30-PIN CONNECTOR

1BM-H8146-V0-00

Unavailable

55

AUDIO SET HARDWARE KIT

1BM-H81E1-V0-00

Unavailable
