Partiron

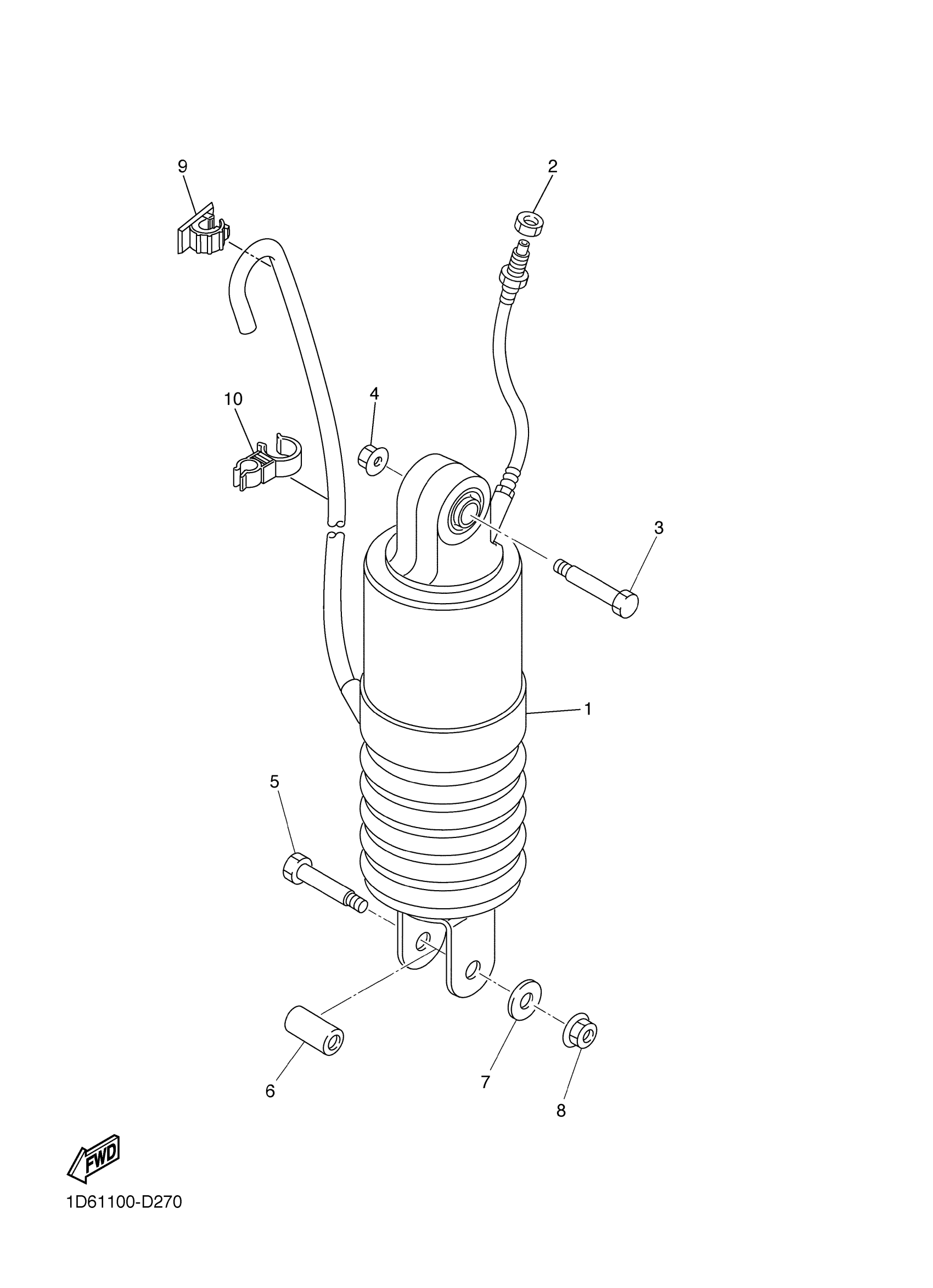

Yamaha XVZ13TFSAC (ROYAL STAR VENTURE S CA) 1BM5 2011 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

4XY-22210-10-00

$960.83

2

NUT(1KT)

90170-14350-00

$4.62

3

BOLT

90101-12033-00

$3.36

4

NUT, SELF-LOCKING

95602-12200-00

$3.56

5

BOLT

90101-12033-00

$3.36

6

COLLAR(3XW)

90387-126W4-00

Unavailable

7

WASHER, PLATE

90201-12045-00

$4.81

8

NUT, SELF-LOCKING

95602-12200-00

$3.56

9

CLAMP

90464-13005-00

$5.00

10

CLAMP

90464-12008-00

Unavailable
