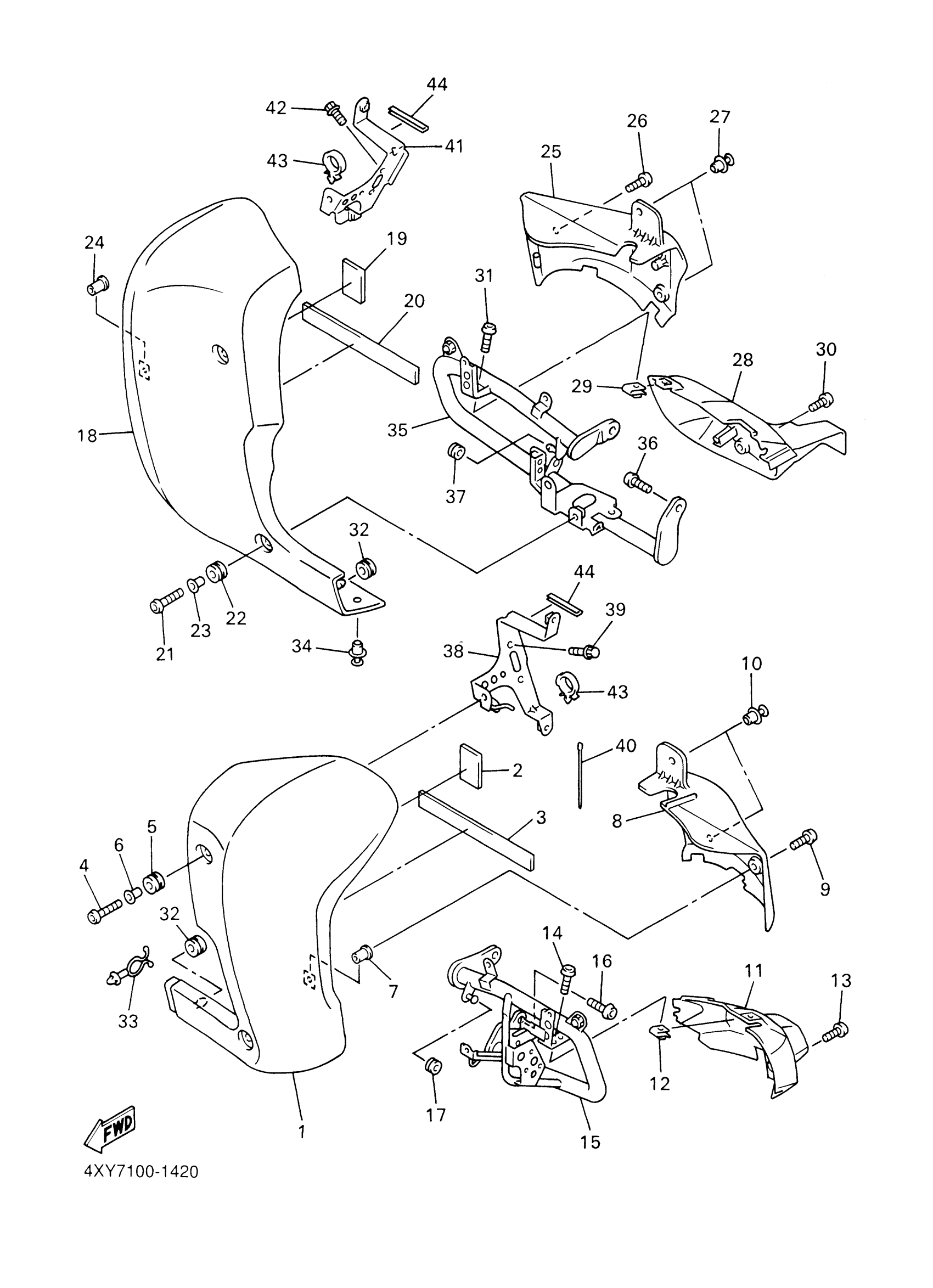

Yamaha XVZ13TFSAC (ROYAL STAR VENTURE S CA) 1BM5 2011 COWLING 2 Diagram
#
Description
Price
1
BODY, FRONT LOWER 1 (DULL PURPLISH BLUE METALLIC X)
4XY-2835J-01-PC
Unavailable
8
BODY, REAR 1
4XY-2835N-00-00
Unavailable
11
COVER 1
4XY-2842M-00-00
Unavailable
16
BOLT, BUTTON
92017-10030-00
Unavailable
17
GROMMET (2H7)
90480-11224-00
Unavailable
18
BODY, FRONT UNDER 2 (DULL PURPLISH BLUE METALLIC X)
4XY-2835K-01-PC
Unavailable
25
BODY, REAR 2
4XY-2835R-00-00
Unavailable
28
COVER 2
4XY-2842N-00-00
Unavailable
32
GROMMET(4DN)
90480-01558-00
Unavailable
33
CLAMP
90464-18269-00
Unavailable
34
RIVET(4JH)
90269-07076-00
Unavailable
35
GUARD, ENGINE 2
4XY-28419-00-00
Unavailable
36
BOLT, BUTTON
92017-10030-00
Unavailable
37
GROMMET (2H7)
90480-11224-00
Unavailable
38
STAY, SUPPORT 1
4XY-2831T-01-00
Unavailable
39
BOLT, FLANGE
95817-06010-00
Unavailable
40
CLAMP
90465-10098-00
Unavailable
41
STAY, SUPPORT 2
4XY-2832T-01-00
Unavailable
42
BOLT, FLANGE
95817-06010-00
Unavailable
43
CLAMP(M80)
90464-07209-00
Unavailable
44
MOLE 3
4XY-28347-00-00
Unavailable
